Kärcher CV 38/2 Service Manual

English 5.906-485.0 Rev. 00 (05/09) 5

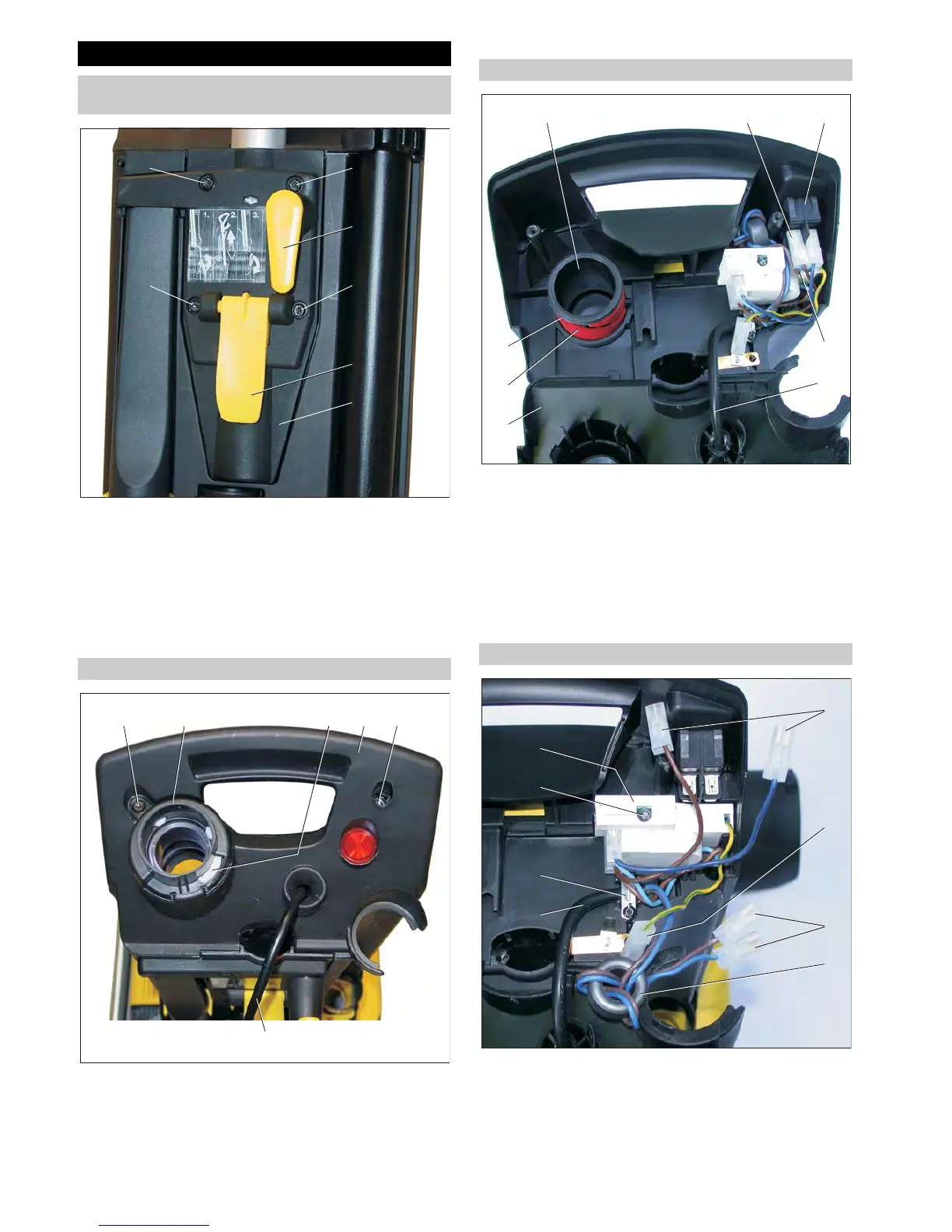

1 Fastening screws for rear cover
2 Cable hook
3 Handle adjustment
4 Rear cover
 Unscrew locking screws.
 Remove rear cover.
 Replace the cable hook or the handle adjustment.
 Install the new cable hook or a new handle adjustment in re-
verse sequence.
1 Top cover
2 Fastening screws for top cover
3 Power cord
4 Suction hose connection
5 Safety ring
 Unscrew locking screws.
 Remove top cover.
1 Connection plug of the mains cable
2 Power switch
3 Connection plug of the circuit board
4 Power cord
5 Top cover
6 Ring
7 Washer ring
8 Suction hose connection neck
 Remove washer ring.
 Insert new washer ring.
1 Connection plug of the circuit board
2 Connection plug of the earth cable (protective conductor)
3 Connection plug of the mains cable
4 Ferrit ring (anti-interference ring)
5 Power cord
6 Clamp for mains cable
7 Indicator lamp
5 Basic settings and service procedures
5.1 Replace the cable hook or the handle adjust-
ment
5.2 Remove top cover.
1
2
1
3
4
1
1
2 4 5 1 2
3
5.3 Replace washer ring
5.4 Replacing the mains cable
8 1 2
7
6
5
4
3
1
2
3
4
6
5
8
7

Kärcher CV 38/2 Specifications

General

Motor power	- W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Maximum input power	850 W
Annual energy consumption	37.4 kWh
Airflow	40 l/s
Product type	Upright vacuum
Dust capacity	5.5 L
Product color	Black, Grey
Tube material	-
Dust container type	Dust bag
Standard nominal width	- mm
Noise level	80 dB
Cleaning surfaces	Carpet
Vacuum air filtering	HEPA
Dirt separating method	Filtering
Working width (standard brush)	380 mm
Cord length	12 m

Weight and Dimensions

Depth	391 mm
Width	351 mm
Height	1215 mm
Weight	9500 g
Weight (without accessories)	8700 g
