Kärcher CV 38/2 Service Manual

8 English 5.906-485.0 Rev. 00 (05/09)
1 Fastening screws of the casing top
2 Housing top
3 Bearing bowl incl. spring clamp and switch cams
4 Bearing bowl incl. spring clamp
 Pull the bearing bowls off to the side.
 Unscrew locking screws.
 Remove the top part of the casing.

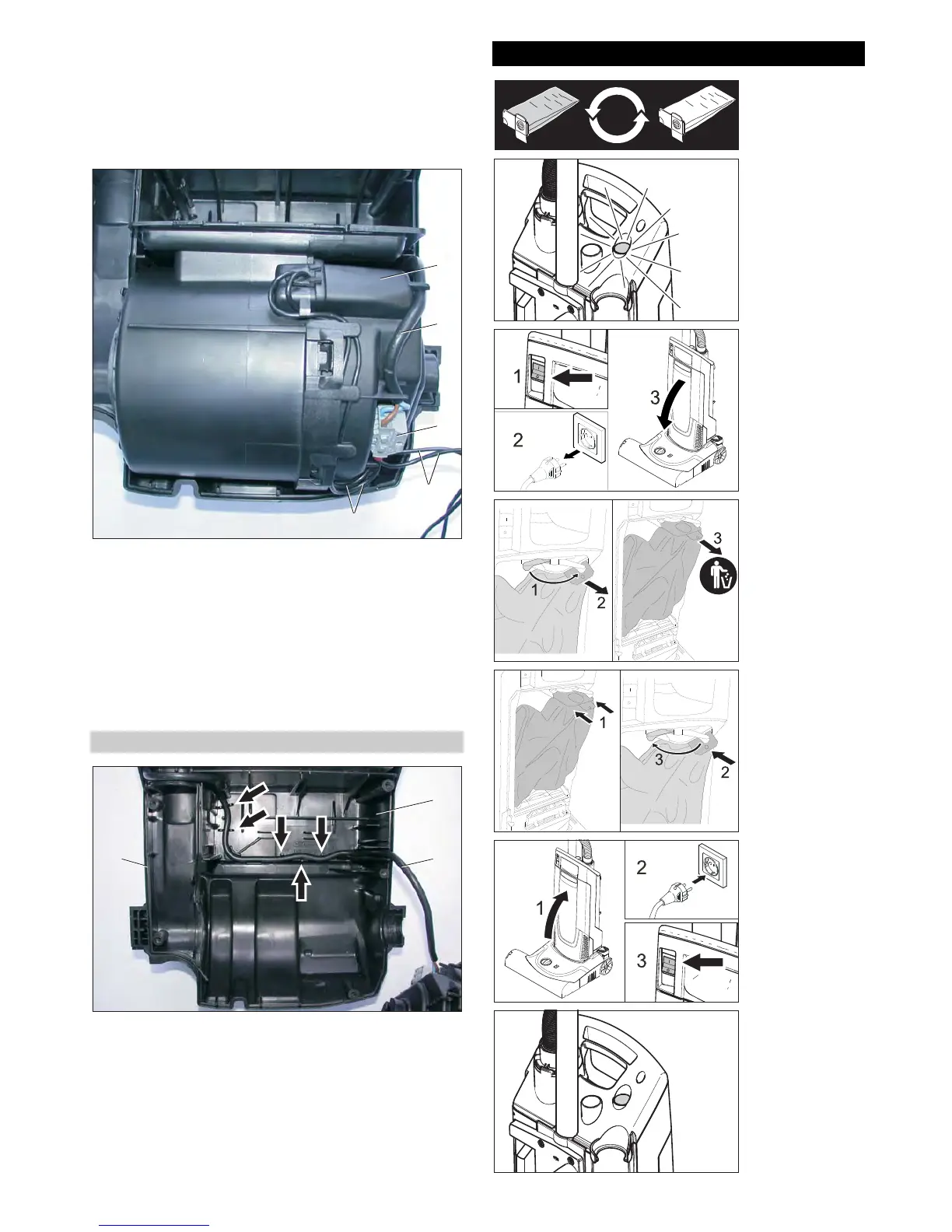

1 Suction turbine
2Power cord
3 Terminal strip of the suction turbine
4 Connection cable to the brush head
5 Connection cable of the suction turbine
 Remove the suction turbine.
 Pull the connecting cable of the suction turbine out of the termi-
nal strip.
 Install the new suction turbine in reverse sequence.
Note: The mains cable must be routed as shown in the illustration
within the respective pins (see arrows).
1 Casing bottom
2Power cord
3 Seal
 Remove the seal.
 Insert new seal.
Note: The seal must be placed precisely into the guide groove of
the casing bottom to protect the suction turbine from contamina-
tion.
5.10 Replace seal
1
2
3
4
5
1
2
3
6 Maintenance and care

Kärcher CV 38/2 Specifications

General

Motor power	- W
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Maximum input power	850 W
Annual energy consumption	37.4 kWh
Airflow	40 l/s
Product type	Upright vacuum
Dust capacity	5.5 L
Product color	Black, Grey
Tube material	-
Dust container type	Dust bag
Standard nominal width	- mm
Noise level	80 dB
Cleaning surfaces	Carpet
Vacuum air filtering	HEPA
Dirt separating method	Filtering
Working width (standard brush)	380 mm
Cord length	12 m

Weight and Dimensions

Depth	391 mm
Width	351 mm
Height	1215 mm
Weight	9500 g
Weight (without accessories)	8700 g
