Kärcher CV 38/2 Service Manual

English 5.906-485.0 Rev. 00 (05/09) 7
1 Switch cam
2 Brush motor switch
3 Brush motor
4 Brush motor electronics
5 Safety bumper
6 Brush head casing
7 Bearing bowl incl. spring clamp
8 Fastening screws of the casing top
9 Housing top
1 Drive pinions of the brush motor
2Drive belt
3 Fastening screws of the drive bearing
4 Drive bearing of the brush
5 Brush motor
 Unscrew locking screws.
 Pull out the drive bearing.
 Remove the drive belt.
 Remove the brush motor.
 Install the new brush motor in reverse sequence.
 As required: Clean the inside of the indicator lamp cover (or-
ange) of the brush head cover of carbon brush residue.
1 Impeller
2 Impeller cover
3Steel spring
4 Metal clip
5 Opening of impeller
1 Filter cover
2 Bearing locations
3 Filter casing
 Lift up the complete filter casing and remove it from the bearing
locations.
 Remove the filter cover.

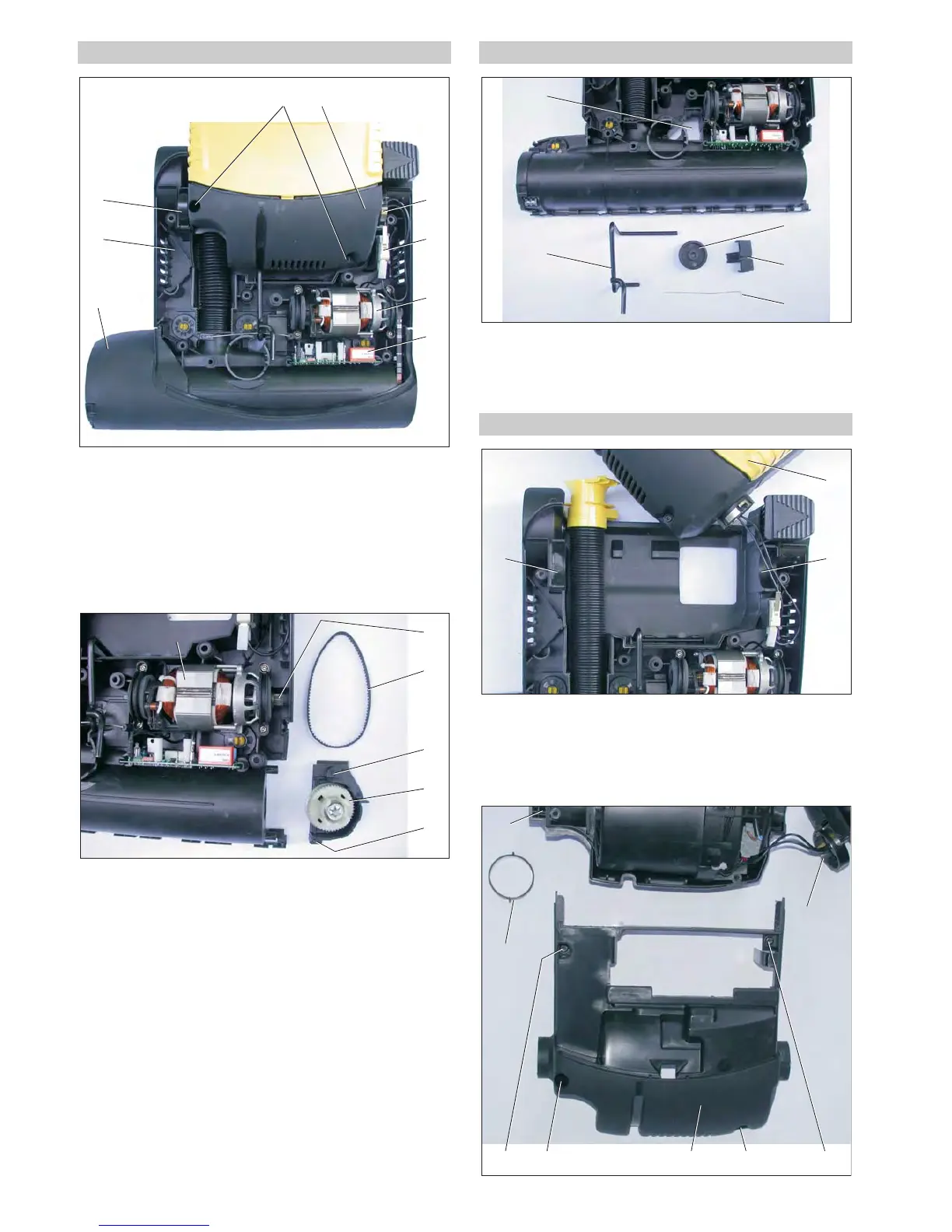

5.7 Replace the brush motor
1
2
3
4
7
6
5
8 9
1
2
3
4
3
5
5.8 Pile height adjustment
5.9 Replacing the suction turbine
1
2
3
5
4
2
1
2
3
11 2 11
3
4
5
