Kärcher HDS 10/20-4 M Manual

– 3
 Place the suction hose of the injector
into the detergent can.
 Operate the high-pressure cleaner in
the normal way.
Note:
If you are using a Servopress gun, set it to
full water quantity.
 Pull the lever on the handgun.
 Perform cleaning task. Observe the
separate operating instructions of the
high-pressure cleaner.
 After operations, dip the filter in clear
water.
 Start the device and rinse for 2 minutes.
Note:
If the system is not rinsed after use, conglu-
tination or increased wear may occur.
 Remove injector.
 Replace chemicals nozzle by high-
pressure nozzle.
or
Switch the multi-channel nozzle over to
high pressure.
No or insufficient detergent supply.
 Injector is blocked.
Remove the injector and rinse with
warm water.
From now on, rinse the system with
clear water for 2 minutes after using de-
tergent.
 Replace the high-pressure nozzle by
the included chemicals nozzle.
or
Switch multiple nozzle to position
"CHEM".
 Use a shorter high-pressure hose.
 If you are using a Servopress gun, set it
to full water quantity.
Water escapes at the detergent suction
hose.
 Call Customer Service.

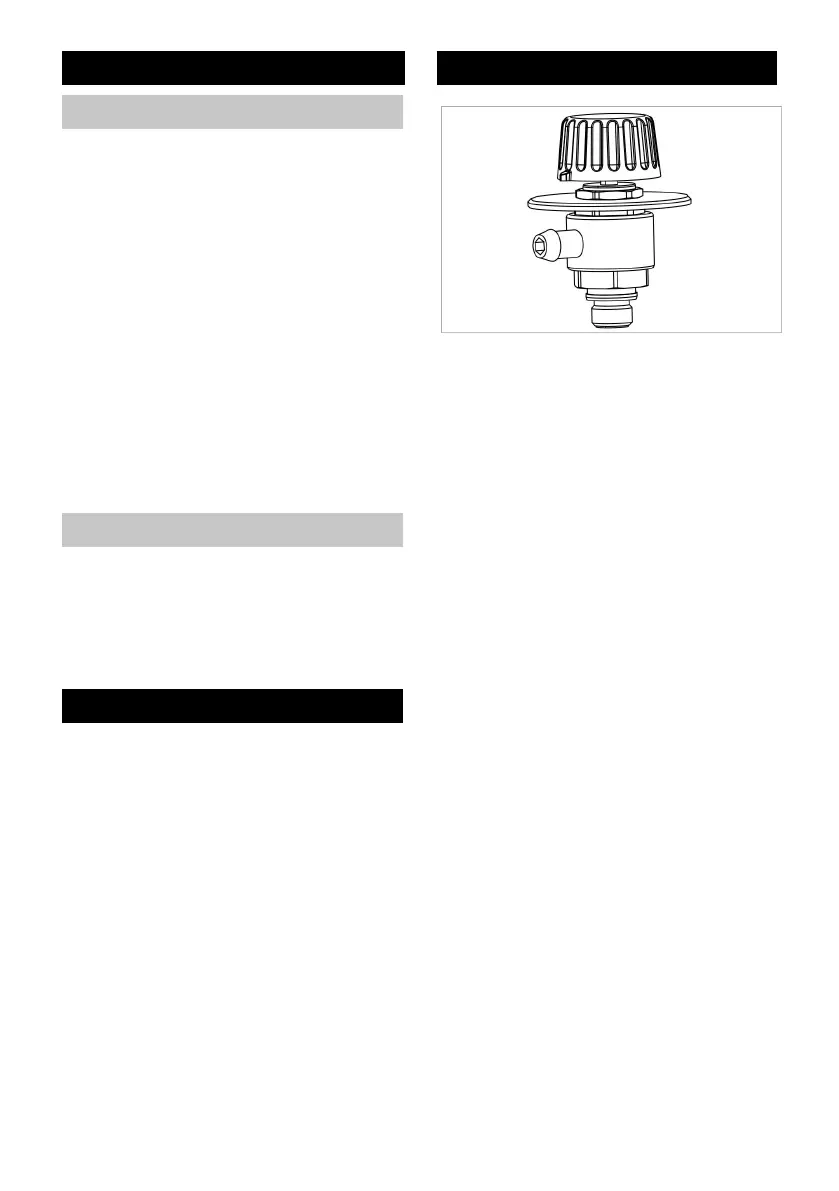

Dosing valve, for continuous regulation of
the detergent quantity without changing the
dosing cover.
Order no. 6.500-000.0
Operation
Operation with detergent
Operation without detergent
Troubleshooting
Accessories
8 EN

Kärcher HDS 10/20-4 M Specifications

General

Cable length	5 m
Fuel tank capacity	25 L
Connected load	7800 W
AC input voltage	420 V
Number of phases	3
AC input frequency	50 Hz
Working pressure (max)	200 bar
Working pressure (min)	30 bar
Heating oil/gas consumption (full load)	6.4 kg/h

Weight and Dimensions

Depth	750 mm
Width	1330 mm
Height	1060 mm
Weight	171000 g
