4. MACHINE CONTROLS
l

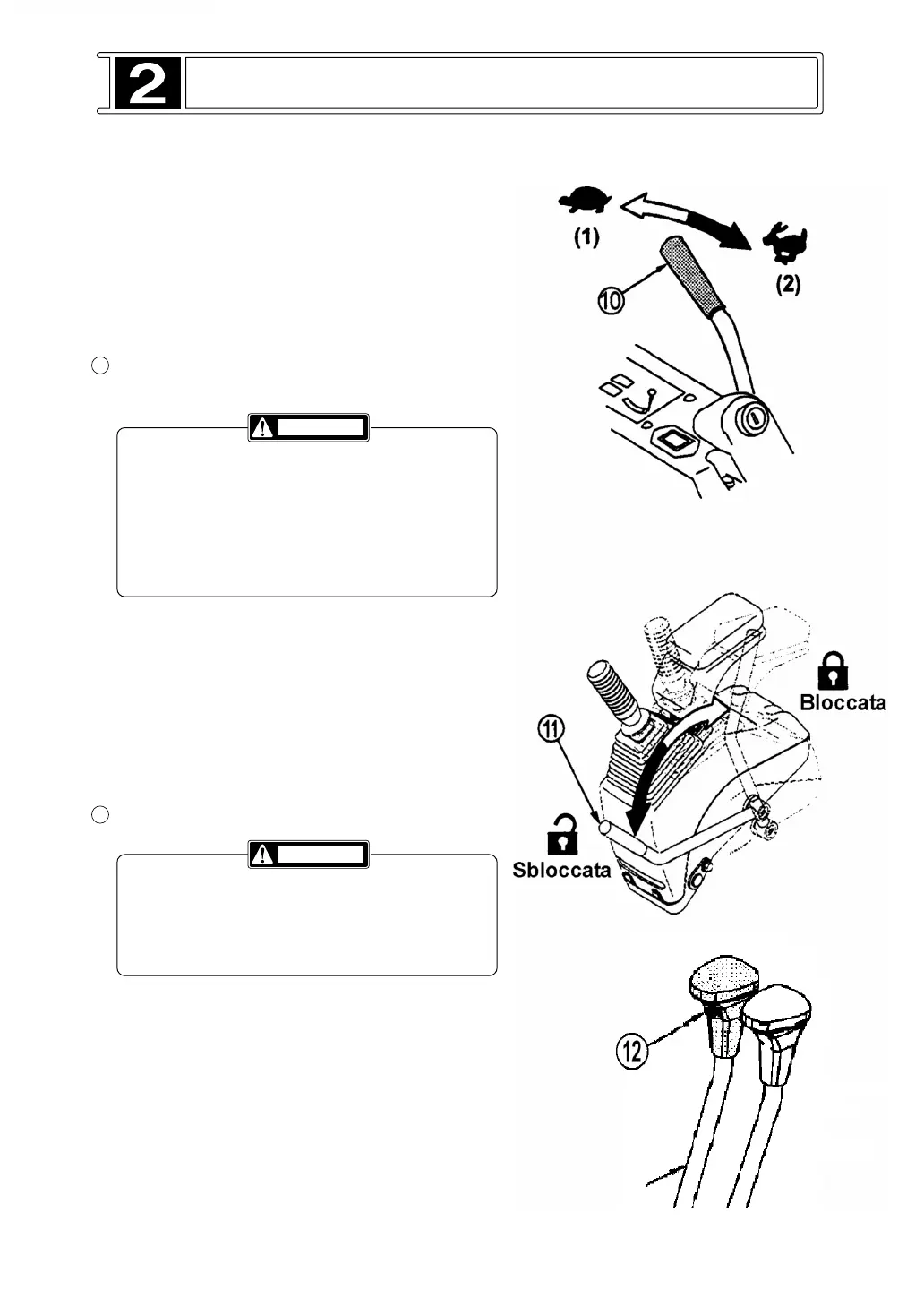

Engine Throttle Lever
Decrease (1) : Move the lever to forward to decrease
the engine speed.
Increase (2) : Move the lever to the rear to increase
the engine speed.
11
Control Shut-off Lever (Left Levers)
(for all hydraulic activation contorols)
T
o mounting and dismounting the machine,
be
sure to put the shut-off lever in the LOCKED
position.
If the lever is in the UNLOCKED position,
upper
structure can swing and can result personal
injury.
Locked : Move the lever back to the locked position.
This makes all hydraulic activation contorols
inoperable.
Unlocked : Move the lever forward to the unlocked
position. This makes all hydraulic activation
controls operable.
12
High Speed Travel Button
* NEVER high speed travel on a grade or loading
and unloading the machine.
* When control shut-off lever is locked,
does not
change to high speed travel.
Low Speed Travel
Release the button to low speed travel. Select the
LOW speed travel when driving on rough or soft
surface. Low is also recommended for loading or
unloading from a truck.
High Speed Travel
During push down the button to shift the high speed
travel. Select the HIGH speed travel when driving on
a hard even surface.
CAUTION
CAUTION
lever
High
travel
botton
speed
Right travel
