2 – 7
OPERA
TION

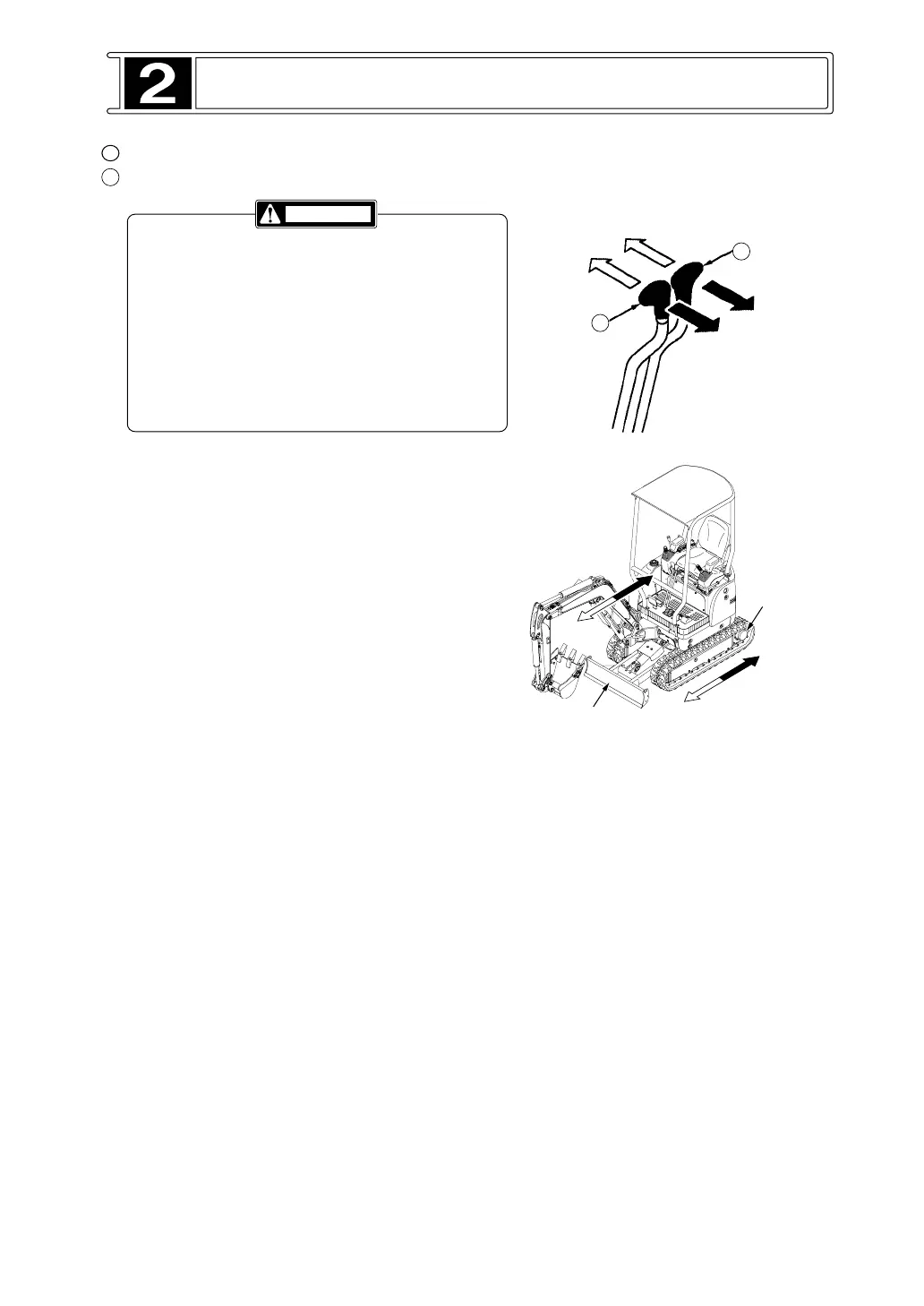

Lef
t T
ravel Lever
Right T
ravel Lever
*
Normal traveling is when the drive sprocket
are under the rear of the machine. Blade are
under the front of the cab. Reverse traveling
is when the cab is over the sprockets. Both the
directional and traveling functions will be
reversed.
* Always travel with sprockets under the rear of
the machine.
Forward Direction Travel :
Move the both travel levers forward to move the
machine forward direction.
Stop :
Release the travel levers to stop the machine and
apply the brakes.
Reverse Direction Travel :
Move the both travel levers rear to move the
machine reverse direction.
Refer to Traveling the Machine section of this
manual.
CAUTION
SPROCKET
Reverse
Travel
Forward Travel
BLADE
14
13
Reverse
Travel
Forward
Travel
14
13
