2 – 9
OPERA
TION

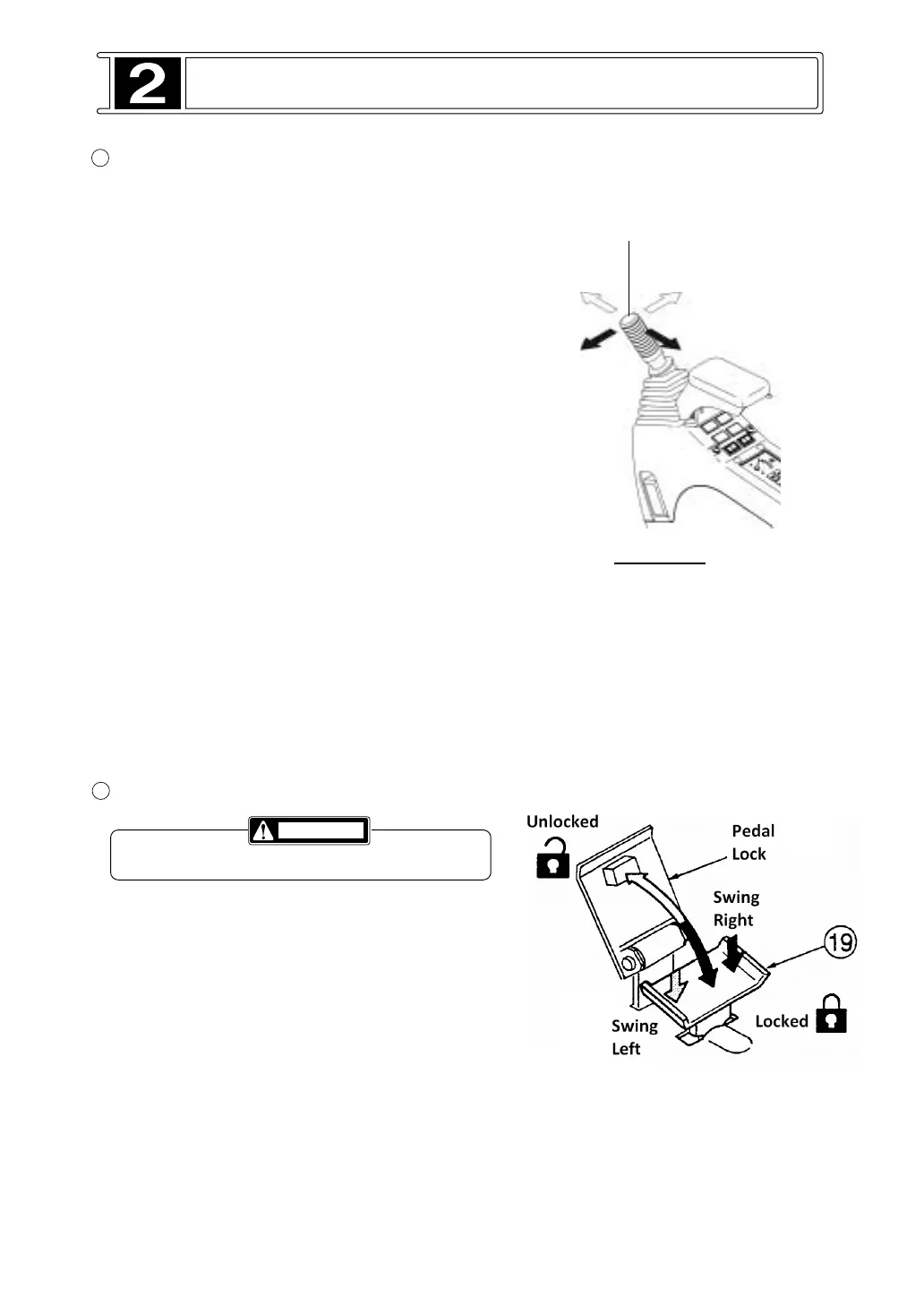

Right Operating Lever (TYP "A" ISO Lever)
Bucket and boom controls
1. Boom Lower:
Move the lever forward to lower the boom.
2. Boom Raise:
Move the lever back to raise the boom.
3. Bucket Dump:
Move the lever right to dump the bucket.
4. Bucket Dig:
Move the lever left to close the bucket.
5. Hold :
When the lever released from any position, the
lever will return to hold(center position) . Boom or
bucket movement will stop.
Boom
Lower
1. Bucket
Dump
3.
Boom
Raise
2.
Bucket
Dig.
4.
Hold5.
ISO System
18
CAUTION
Boom Swing Pedal
ALWAYS locked pedal when is not in use.
Boom swing right :
Push down right on the pedal to swing the
boom to the right.
Boom swing left :
Push down left on the pedal to swing the
boom to the left.
19
The bucket and boom functions can be operated
together. For example, to move out the boom and
dump the bucket at the same time, push the lever
forwards to the right.
