OPERATION
Operator’s Seat
* Seat adjustment should be checked at the
beginning of each shift or when changing
operator.
* Lower the bucket on the ground, stop the
engine and then make adjustment.

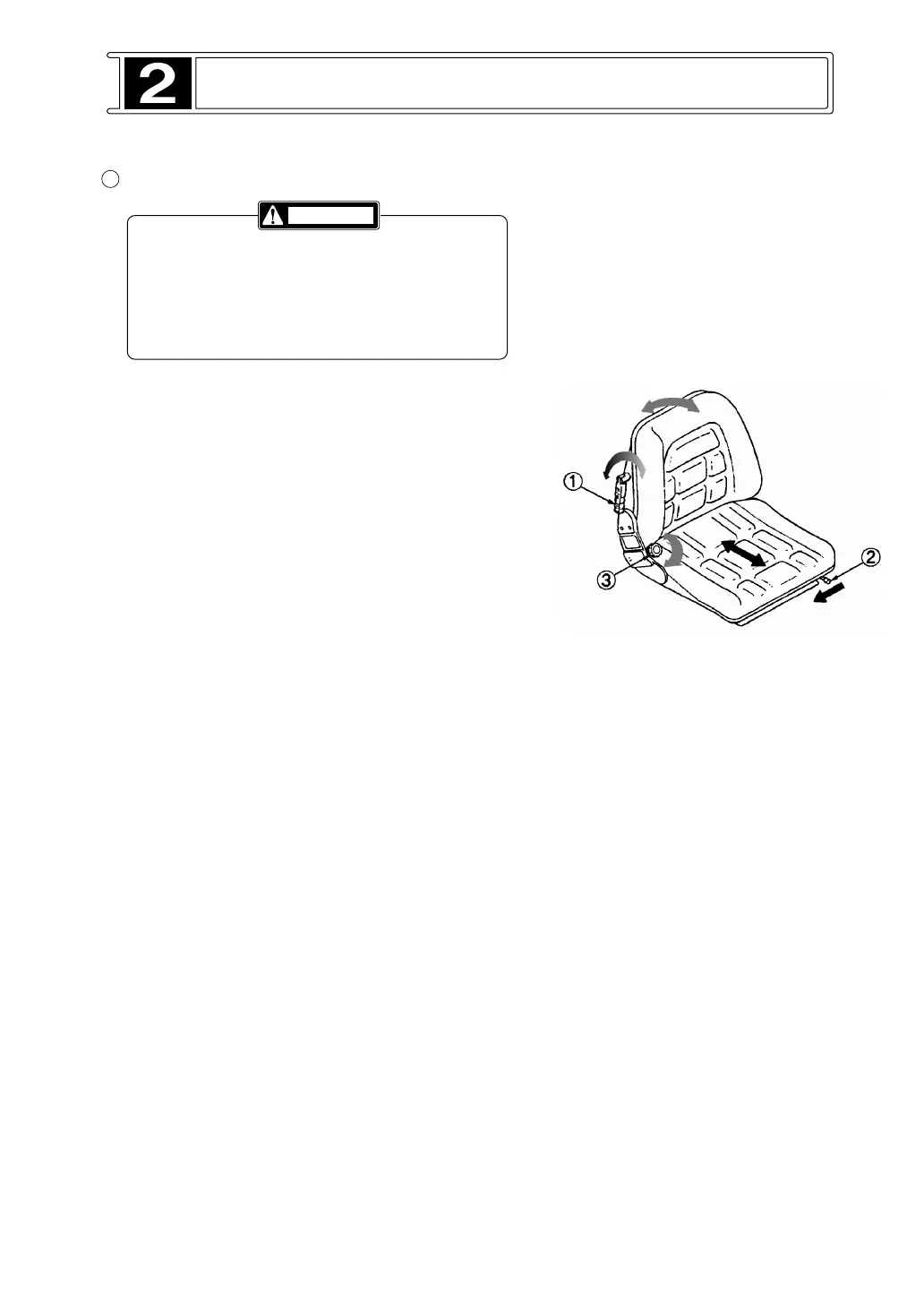

Seat Adjustment
Seat position can be adjusted forward or backward
and seat back tilt. Select the desired position to
allow full pedal and lever travel.
To Adjust the Seat Forward or Backward.
Pull up and hold lever 2 and move the seat to the
desired position. Release the lever to hold the seat
in the selected position.
To Adjust the Seat Back Tilt.
Turn knob
3 clockwise to tilt the seat back to backward.
Turn knob 3 counter clockwise to tilt the seat
back to forward.
To Adjust the Seat Suspension.
Turning knob 1 clockwise increases suspension
stiffness and turning it counterclockwise decreases
suspension stiffne
