Housing P
max. 42,5mm
Terminal
block
Name Function Terminal
X1A
L1, L2, L3 3-phase mains connection
13
U, V, W AIC mains connection
+PA, PB Connection for braking resistor
+PA, – Connection for DC-bus connection
X1D
T1, T2 Connection for temperature sensor (only master)
9
K1, K2 Monitoring of the braking transistor (GTR7)
(only water-cooled devices)
X1A
PE,
Connection for protective earth 13

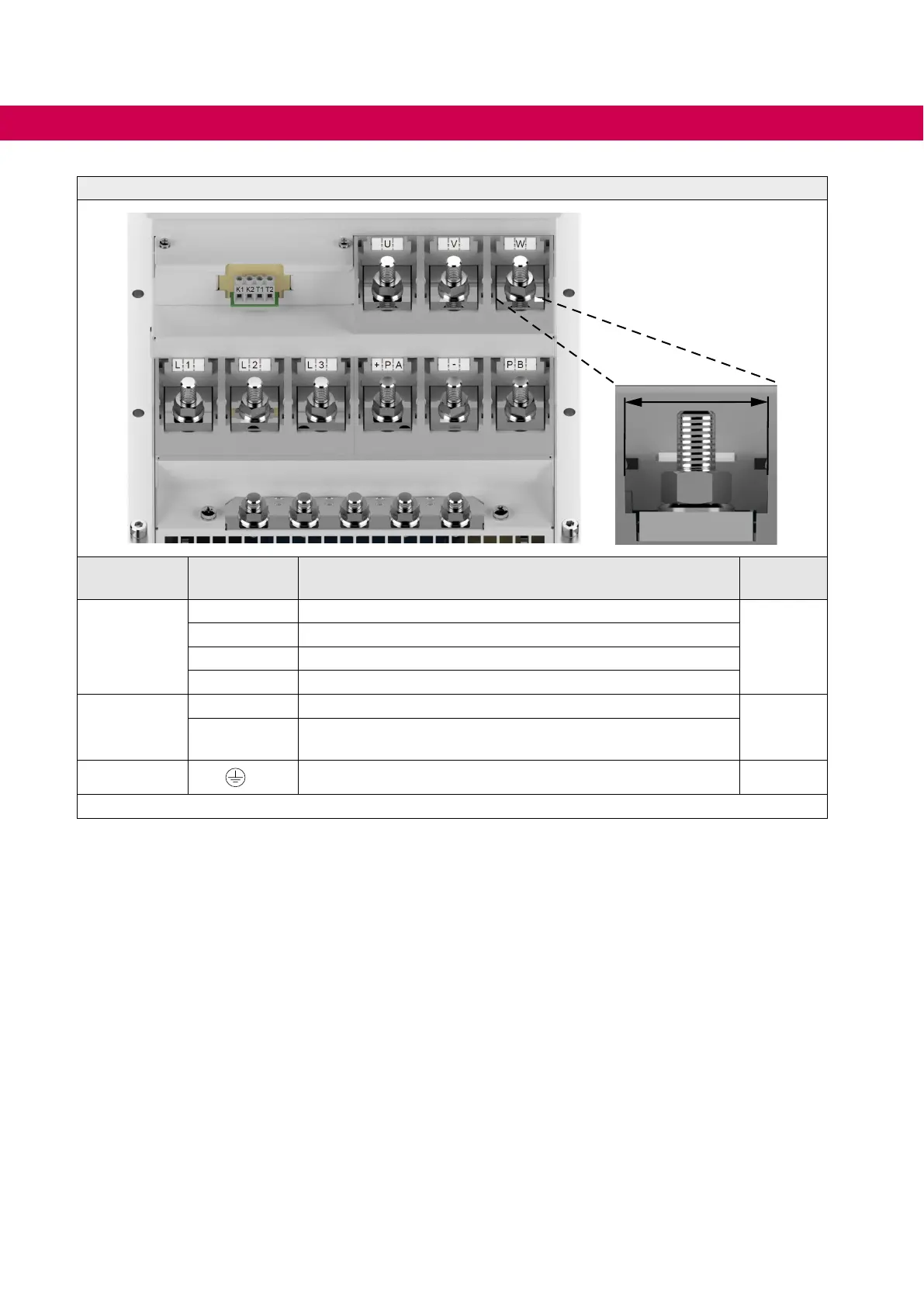

Figure 7: Terminal blocks housing P
Terminal width
38
CONNECTION OF THE COMBIVERT F5-AIC
