KEB COMBIVERT F5 Series - Dimensions and Terminals

GB - 10
Product Description

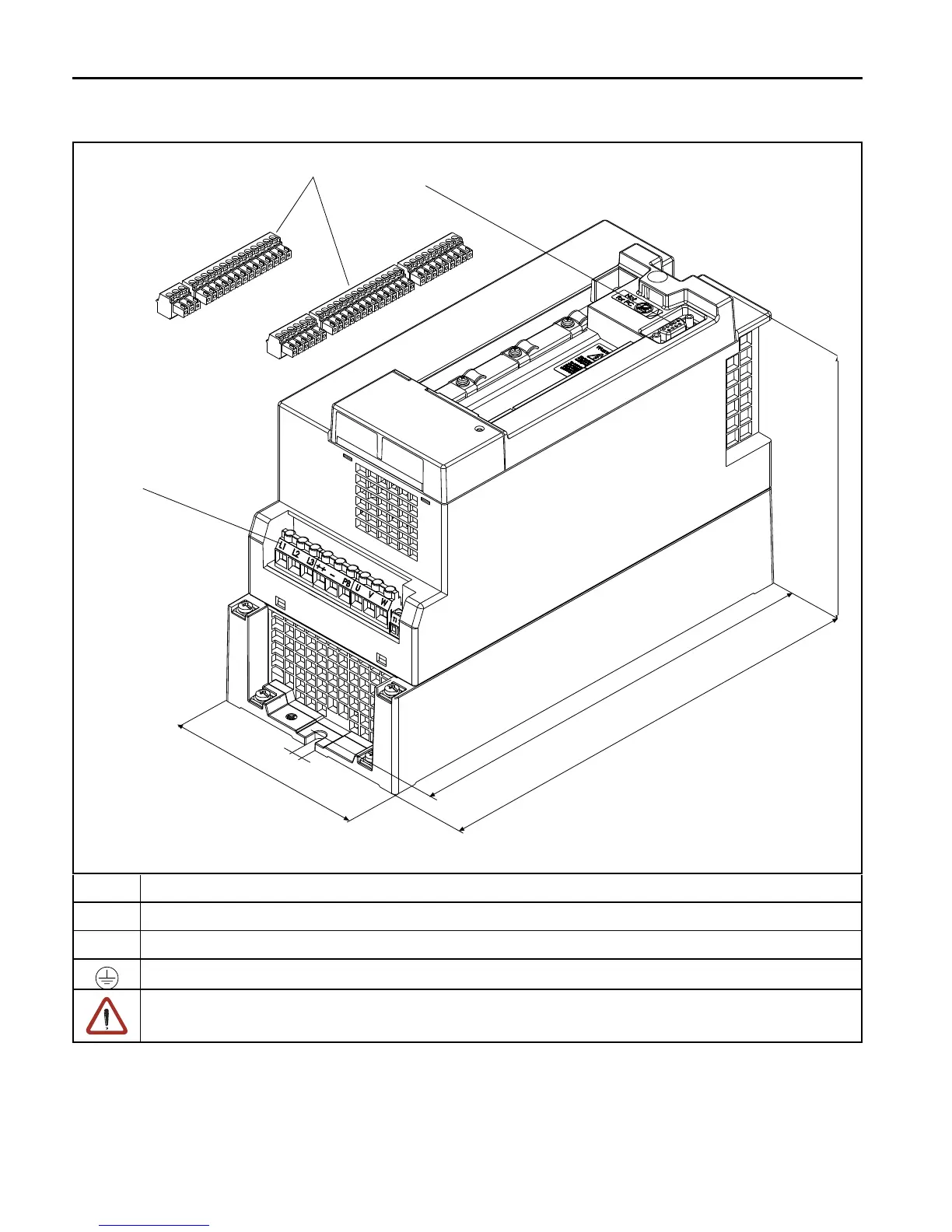

2.4 Dimensions and terminals
X4A
X1A
X2A
288
275
130
F5-C / F5-G
7
207,5 / * 221,5
F5-B
* with Operator
X1A Connection for mains voltage, motor, braking resistor and temperature detection
X2A Connection for control lines
X4A Connection for operator or HSP5 service cable
Connection for shielding / earthing
Pay attention to the input voltage, since 230 V and 400 V class (3-phase) are possible !
