KEEWAY ARN150 - Transfering Power Diagram

36
E ．
．．

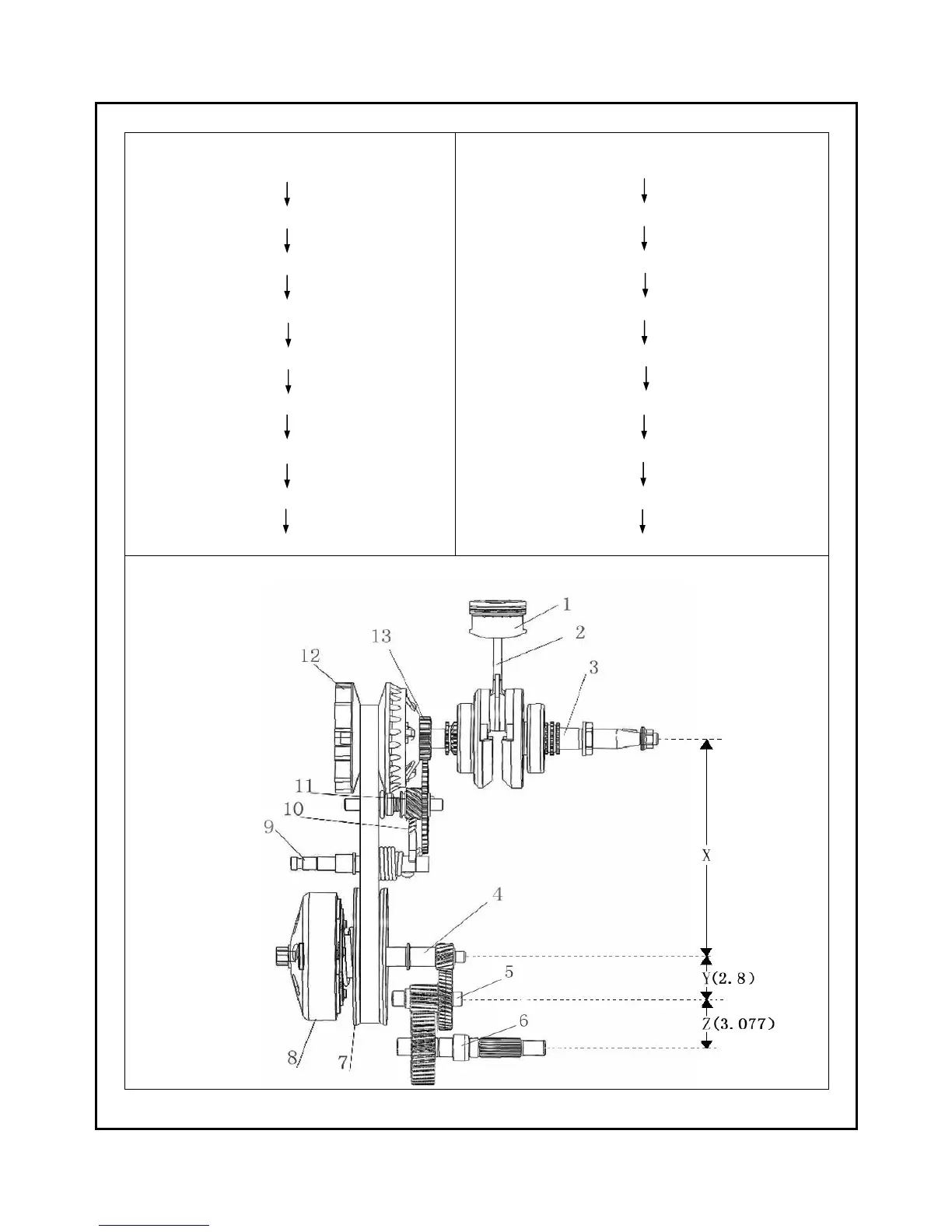

． Tr a n s f e r i n g p o w e r d i a g r a m
By kicking starter：
：：
：
Kicking starter lever
Kicking starter shaft (9)
Starting gear
Transition small gear
Transition big gear
Crankshaft starting driven gear
Crankshaft (3)
Connecting rod (2)
Piston (1)
By kicking starter：
：：
：
Kicking starter lever
Kicking starter shaft (9)
Starting gear
Transition gear
Transition big gear
Crankshaft starting driven gear
Crankshaft (3)
Connecting rod (2)
Piston (1)
