KEEWAY ARN150 - Electrical System; Magneto (ACG)

61
6 ．
．．
． E l e c t r o n i c / e l e c t r i c
a ．
．．
． M a g n e t o （
（（
（ A C G ）
））
）
Structure：
：：
：
Magnet motor is made up of stator and rotor.
The tupe of stator coil: star connection.
Stator installation：
：：
：

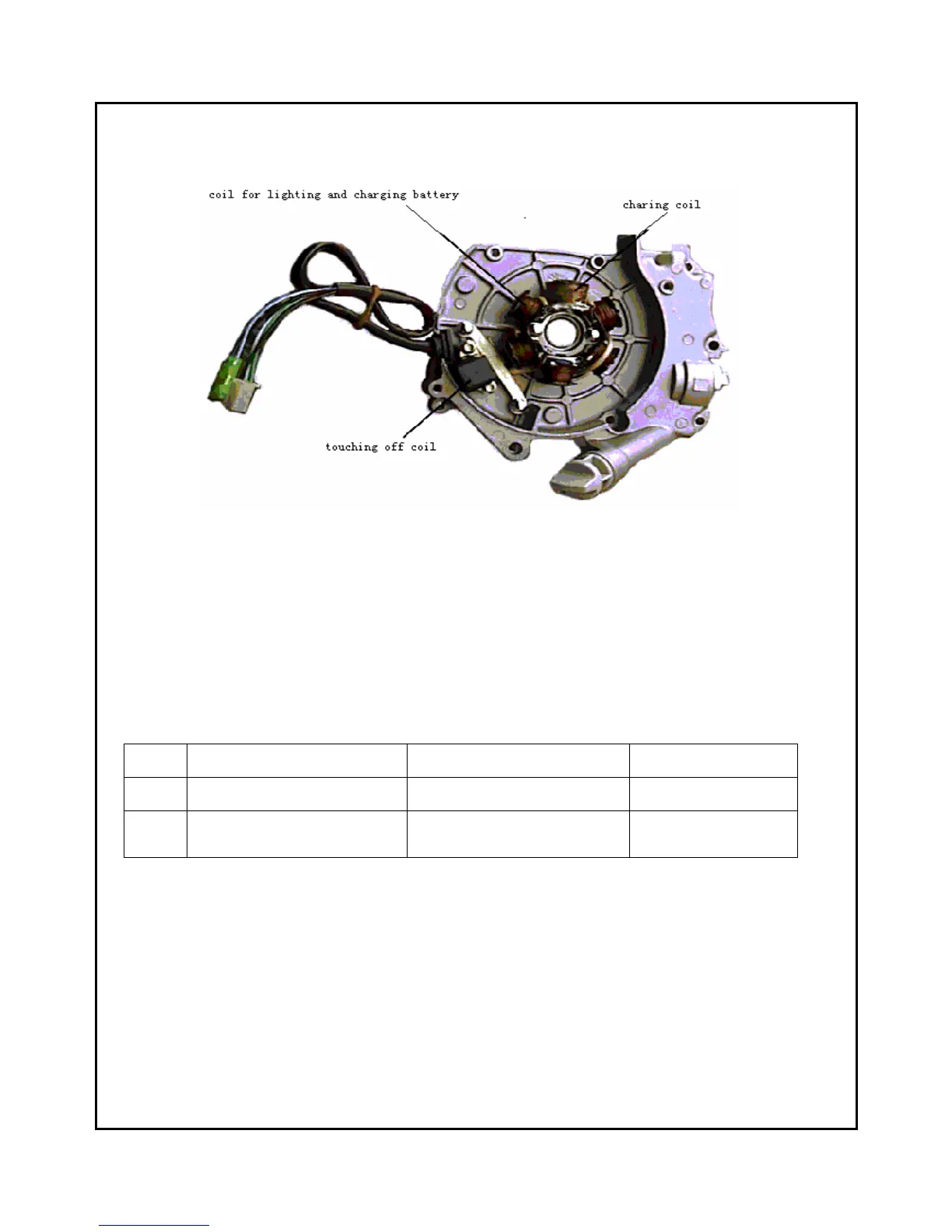

12-coil stator：they are for charging coil of light/battery，Touching off coil and stator are fixed on the right
crankcase cover.
Charging and touching off coils of CDI parts are to ignit e.
The electicity emitted from lighting coil passed through rectifier to be light, and electricity emitted from
battery charging coil passes through rectifier to charge.
Color code of lead of magnet motor and resistances of various coils are the following table:
No.
Coil type Resistance Lead color
2. Toucing coil 200±20Ω at 20℃ Blue white/green white
3.
Light
Charging battery coil
<2Ω
<2Ω
Blue
Blue
Notice：
：：
：Testing for all resitance is referred to ground (black)
● Oil groove type of magnet motor assy.
● There is no stator slice (capacitor) in stator assy, which is installed on the left crankcase
cover.。
● The structure of stator includes two assembling holes.。
