Keiser M7i - Parts and Accessories; M7 i Parts List and Numbers; Optional Equipment for M7 i; Recoiler Installation

08
M7i WHEELCHAIR-ACCESSIBLE TOTAL BODY TRAINER
Qty Description Keiser Part Number
2M8 x 1.25 x 70 mm, Socket Button Head Cap Screw 9543
1
2Washer 9369
2
1Left Recoiler Assembly 520805
3
1Right Recoiler Assembly 520806
4
1 2 3 4

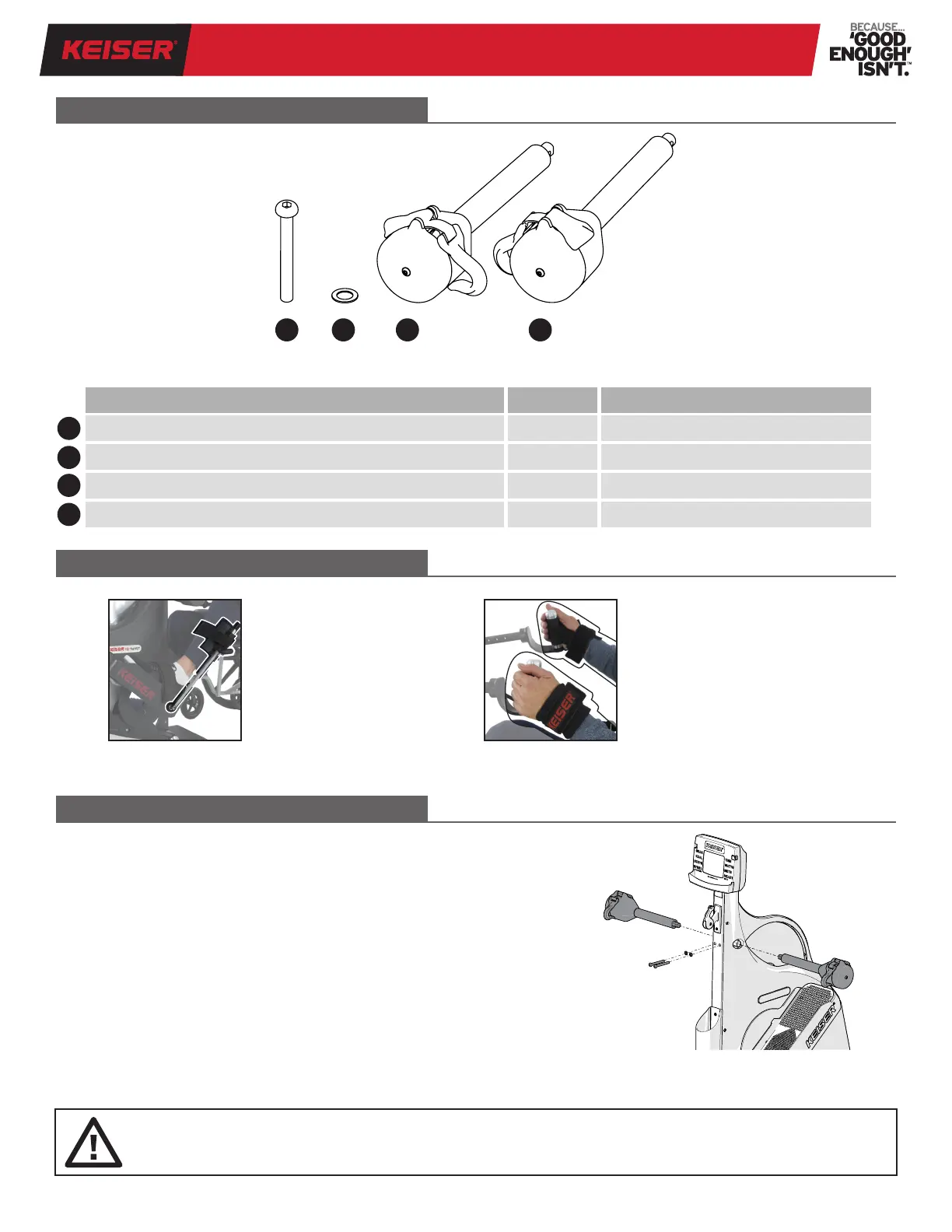

Figure 2. Parts List (images not to scale)
May be used when grip strength is
limited or hand function is impaired.
Part Number: 525408 (qty 1)
May be used to provide stability
and to help ensure proper leg
alignment and motion.
Part Number: 520818 (qty 1)
ADAPTIVE WRIST STRAPSLEG STABILIZERS
1. Insert the Left and Right Recoiler shaft into the M7i Main Frame until it
stops, refer to Figure 3.
2. Install Recoilers to the Main Frame with one M8 x 1.25 x 70 mm Socket
Button Head Cap Screw and one Washer per side. Drive the screw in
until tight using a 5 mm Allen Wrench.
M7i Adaptability Kit PN 520800: Leg Stabilizers (qty 2,) Adaptive Wrist Straps (qty 2), and user instructions.
PARTS LIST
ACCESSORIES
RECOILERS INSTALLATION
OPTIONAL EQUIPMENT
WARNING: Sudden release of Recoiler Safety Straps in the unlocked position will snap back uncontrollably
and could result in serious injury and/or damage to the M7i. Always check to ensure the Lock Levers are
in the locked position during use.
Figure 3. Left and Right Recoiler Installation
(Arms are not shown for clarity)
