Optional accessories
The following optional accessories are available for use with the Model 2290-5:
Connecting cables and connectors
• Model 2290-5-SHV – SHV plug to SHV plug cable; 3.05 meters (10 feet).
• Model 2290-5-MHV – SHV plug to MHV male cable; 3.05 meters (10 feet).
• Model 2290-INT-CABLE – 3-pin interlock connector to unterminated cable; 3.05 meters (10 feet).
• Model 2290-5-SHVBH – SHV male bulkhead connector.
Rack mount kits
• Model 2290-5-RMK-2 – double rack-mount kit; mounts two power supplies side-by-side.
• Model 2290-5-RMK-1 – single rack-mount kit; mounts a single power supply.
• Model 4299-7 – shelf rack-mount kit; mounts one or two power supplies.
Protection module
Model 2290-PM-200
The protection module is intended for use in applications where a device breakdown or other potential
failure could connect the high-voltage output of the Model 2290-5 or Model 2290-10 High Voltage
Power Supply to a lower voltage source-measure unit (SMU).
Front-panel familiarization
The Model 2290-5 front panel is shown below. Descriptions of the controls on the front panel follow
the figure.

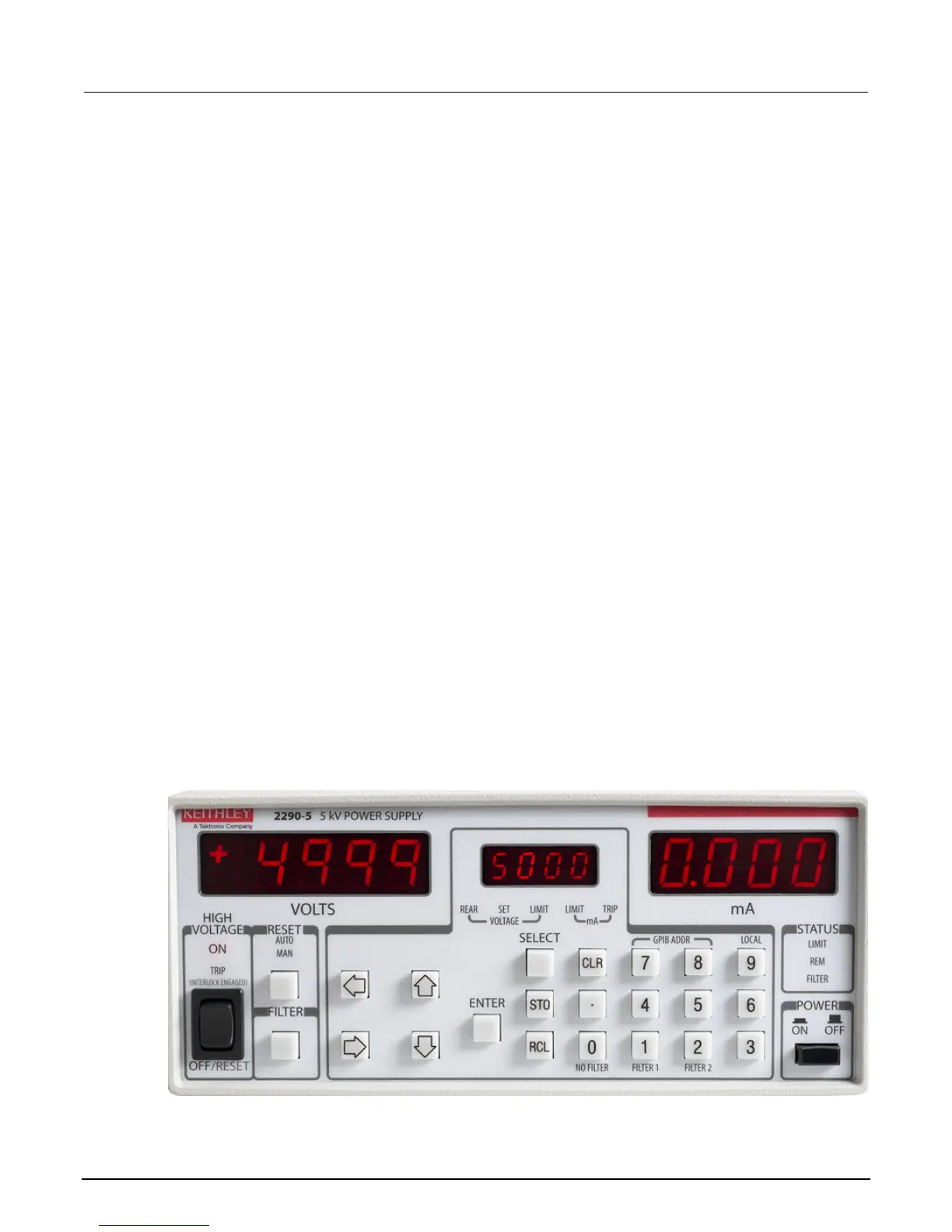

Figure 1: Model 2290-5 front panel
