Keithley 3720

Series 3700
System Switch/Multimeter User's Manual Section 9:
Series 3700 Module Schematics and Connections
Document Number: 3700S
-900-01 Rev. A / August 2007 9-
25
Model 3722 connection log
The following figures provides a sample of a connection log that can be used to record the
wiring scheme for this module.

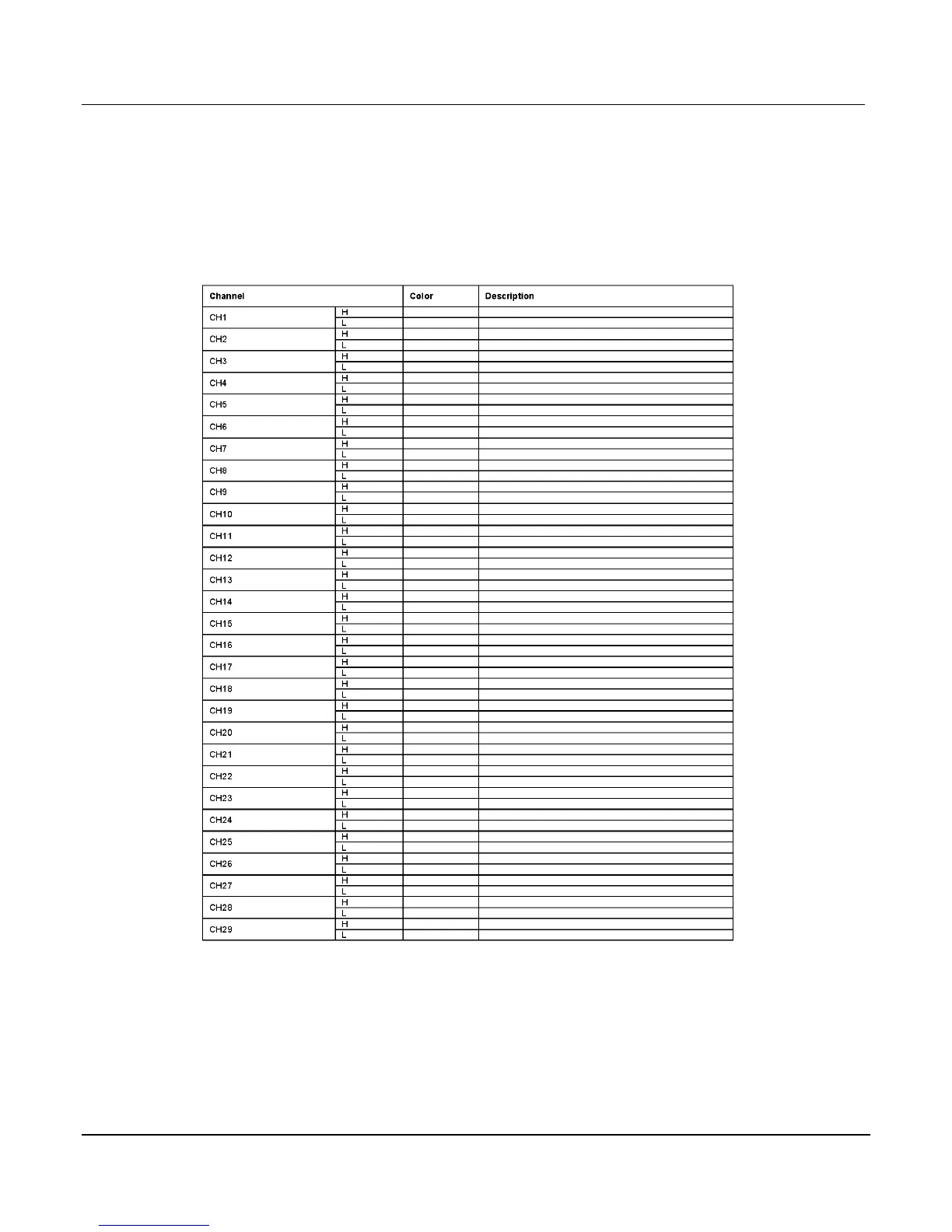

Figure 9-17: Sample Model 3722 connection log (1 of 3)
