Interactive SourceMeter® Instrument User's Manual Section 9: Measuring I-V characteristics
2450-900-01 Rev. C / December 2013 9-3

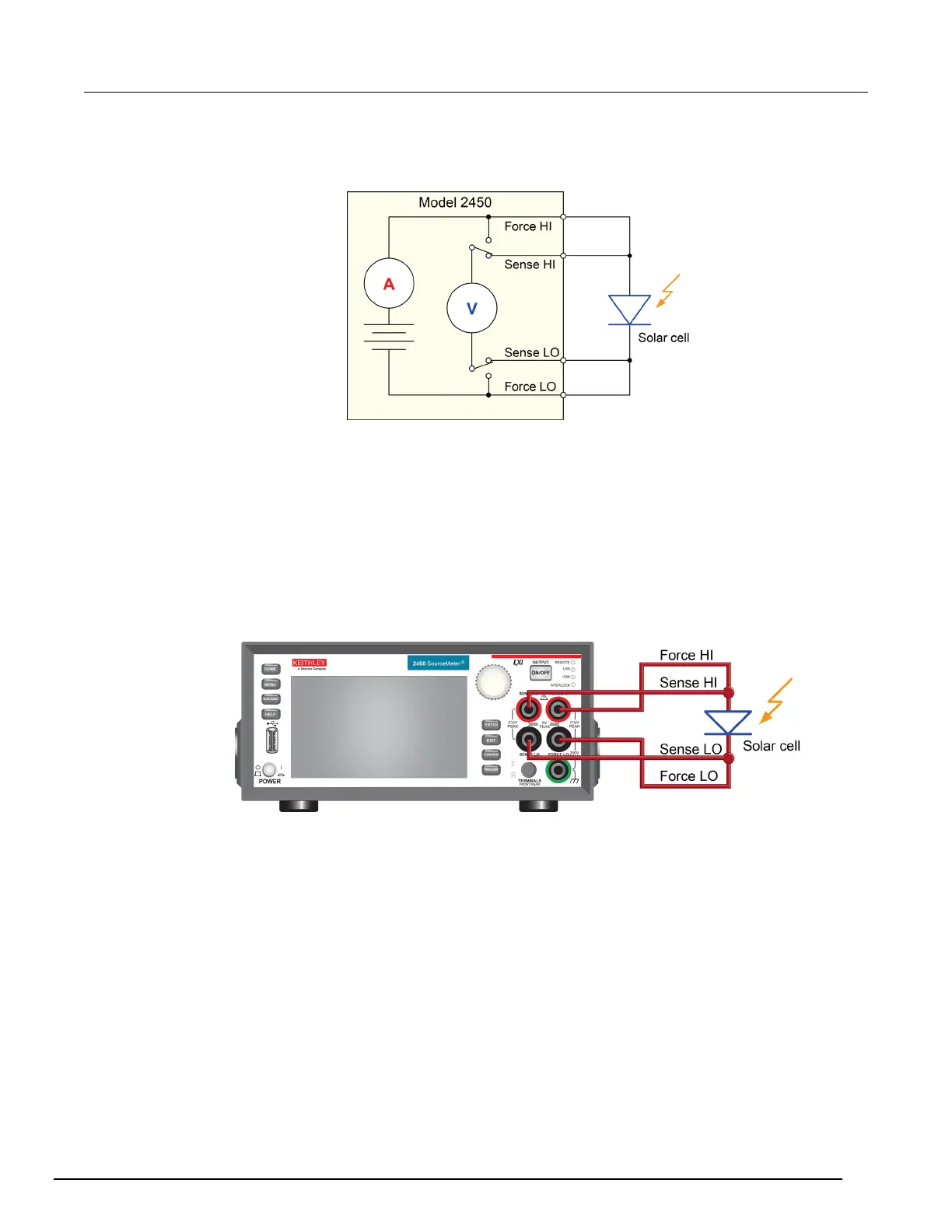

The following figure shows the schematic for the application.
Figure 43: Model 2450 connections to a solar cell
The following figures show the physical connections for the front and rear panels. Note that you must
use either the front-panel terminals or rear-panel terminals — you cannot mix connections.
The rear-panel connections are triaxial. The front-panel connections are safety banana jacks.
Turn the power to the instrument off before attaching connections to the Model 2450.
The figure below shows the front-panel connections. You can make these connections with four
insulated banana cables, such as two sets of the Keithley Instruments Model 8608 High-Performance
Clip Lead Set.
Figure 44: Model 2450 4-wire connections to the front panel
The figure below shows the rear-panel connections. You can make these connections with four
triaxial cables.
