How do I use TSB to make measurements?
Reference Refer to “Remote source-measure procedure” in Sections 4 and 12
of the Series 2600 Reference Manual for details on instrument com-
mands.
The following procedure uses the TSB Instrument Console to send commands to
source voltage and measure current on Channel A using a 10kΩ resistor as the
DUT. The complete command sequence as it would appear in the console win
-
dow is shown in Figure 2-6, along with instrument responses.

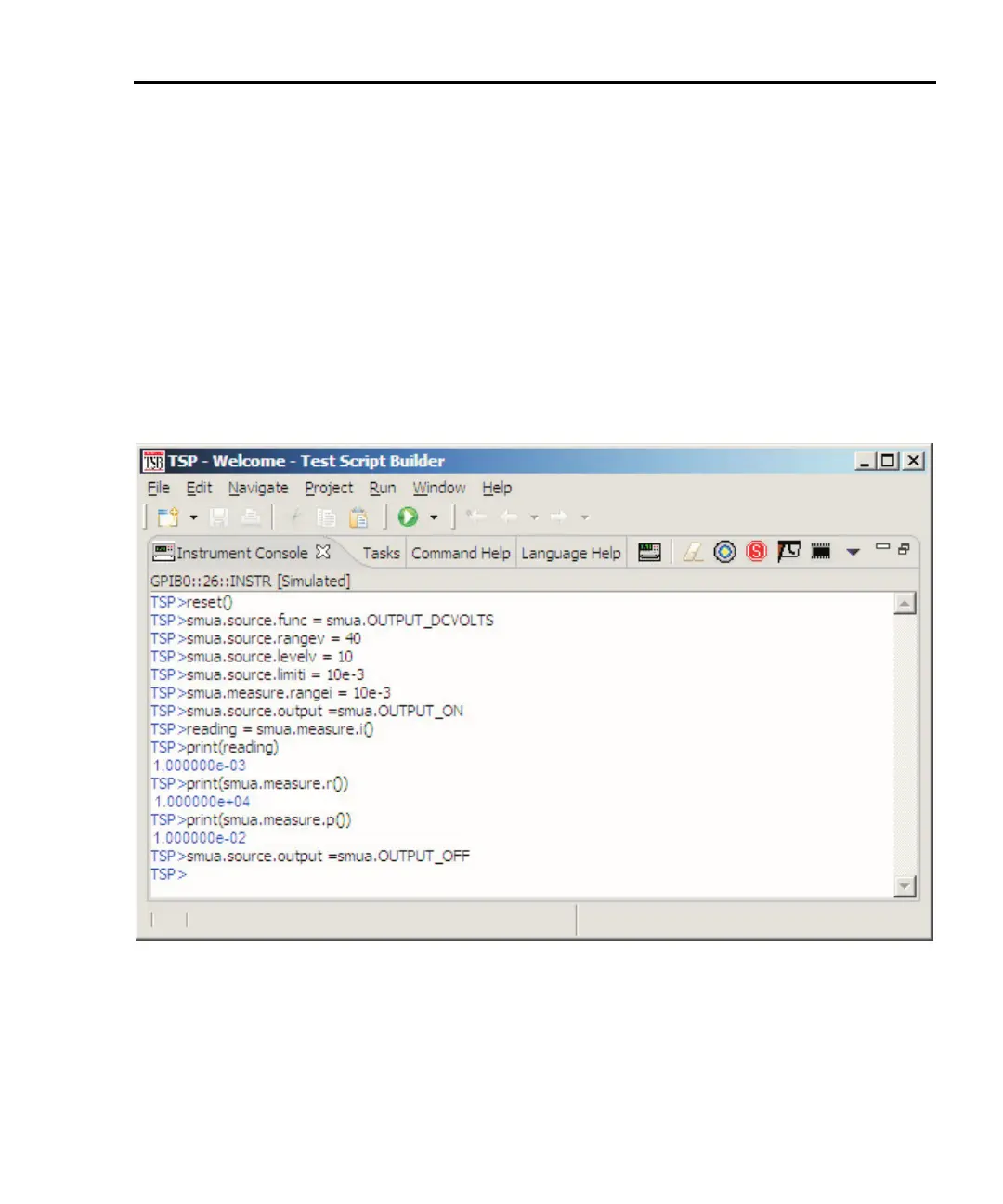

Figure 2-6
Source-measure command sequence in console window
Reset SourceMeter
Select volts function
Set source range to 40V
Set source level to 10V
Set current limit to 10mA
Set measure range to 10mA
Turn on output
Take current reading
Print current reading
Instrument response
Print resistance reading
Instrument response
Print power reading
Instrument response
Turn off output
(2601/2602 version shown)
