Warning and operating
instruction placard
O
P
E
R
A
T
I
O
N
S
INSTALLATION, continued

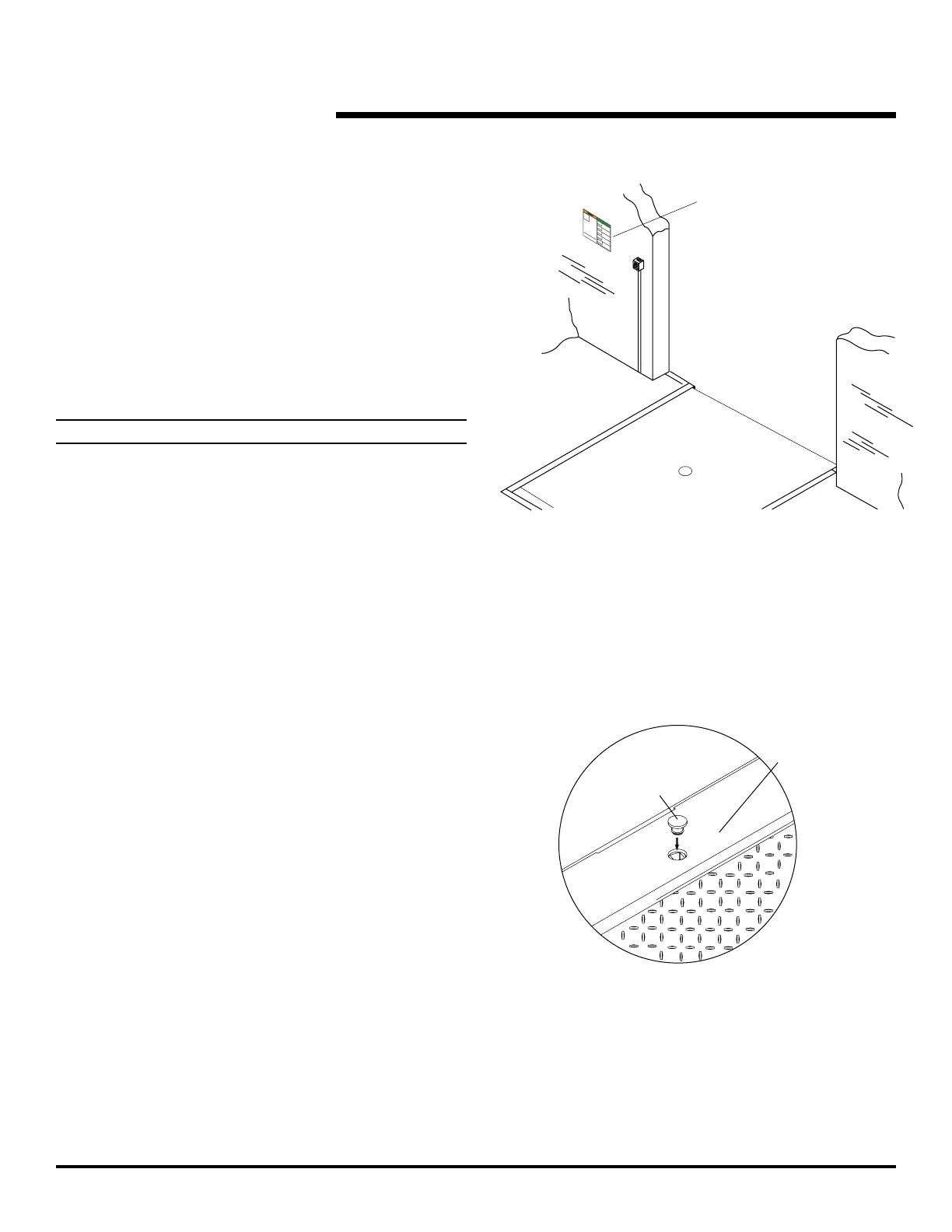

Fig. 19
Cap plug
Rear angle
Fig. 20
c. The raise button may now be released. The ramp
will lower when the button is released.
24. Permanently mount the laminated dock leveler

wall near the dock leveler control. See Fig. 19. Make
sure the customer gets the user’s manual and is properly
trained.
25. Operate the dock leveler four times through the complete
cycle to check operation. (See Operation section, page
25.)
NOTE:
If you have any problems or questions using or operating
the dock leveler, contact your supervisor or local Kelley
®
distributor for assistance.
26. Optional (where applicable), install rear angle cap plugs
(part number 6004488) into adjustment socket holes.

20.
