©2009 4Front Engineered Solutions, Inc.
40 6004754F — HK and HK-S Hydraulic Dock Leveler, 3 Button — SafeTFrame
™
January 2009
W
Pit depth
19" Or 23"
Lip length
16", 18", Or 20"
L
NOMINAL SIZE W L
WxL (FT.) (IN.) (IN.)
6x6 72 63
6x8 72 87
6x10 72 111
6.5x6 78 63
6.5x8 78 87
6.5x10 78 111
7x6 83 63
7x8 83 87
7x10 83 111
PARTS LIST
HK_ _x
Length
6 = 6' long
8 = 8' long
10 = 10' long
12 = 12' long
-S
=Safety Lip
Option
Width
6 = 6' wide
6.5 = 6-1/2' wide
7 = 7' wide

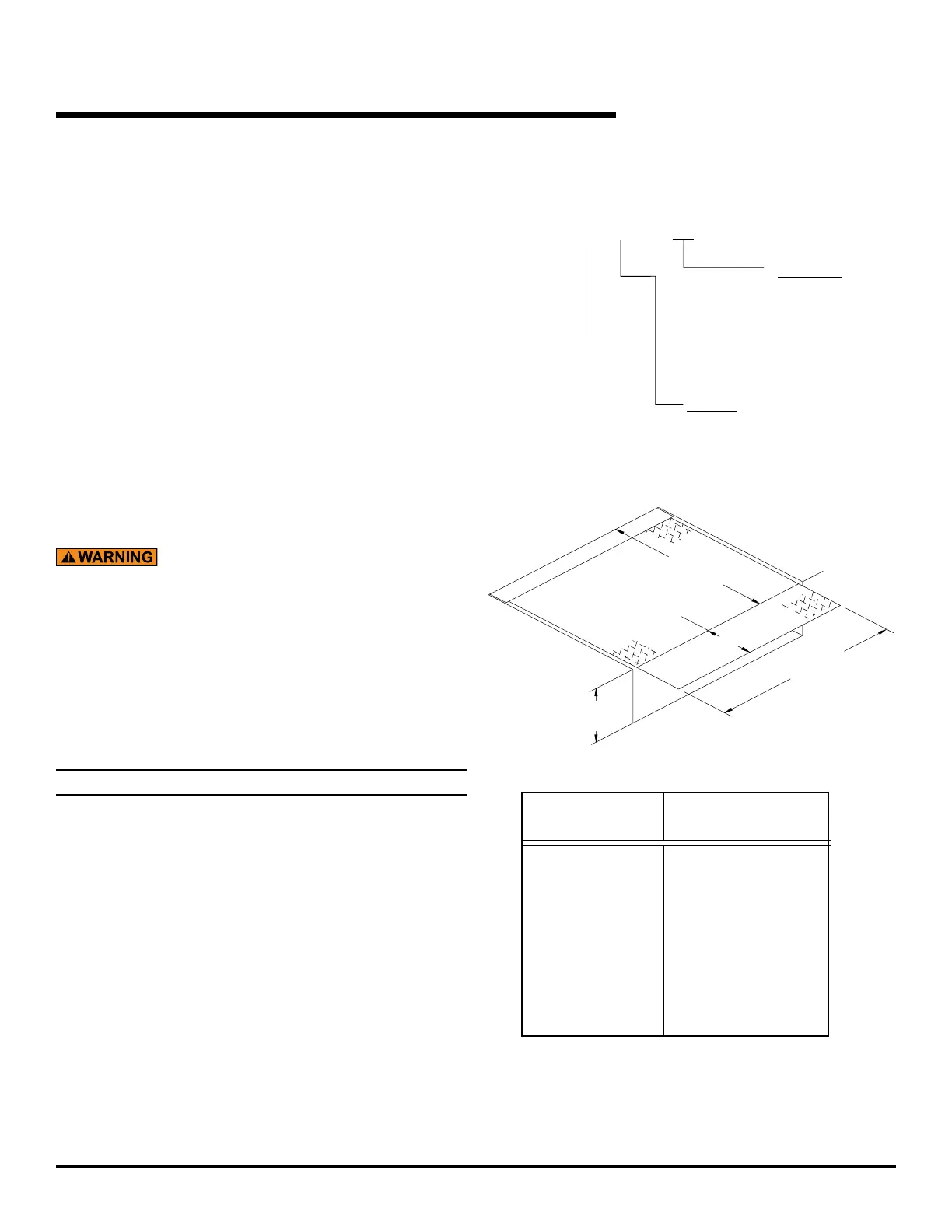

Fig. 47To determine the correct replacement parts to order for
your adjustable dock leveler, you will need to know its
model number, pit size, and capacity.
The model number and capacity can be found on the
The meaning of each digit in the model number is shown
in Fig. 47.
Example: HK6x8P
- 6' wide
- 8' long
To determine the nominal size of your dock leveler, see
Fig. 48.
You will also need to measure the pit depth to determine
pit size for correct replacement parts. See Fig. 48.
To ensure proper function, durability and safety of the
product, only replacement parts that do not interfere with
the safe, normal operation of the product must be used.
Incorporation of replacement parts or modications that
weaken the structural integrity of the product, or in any
way alter the product from its normal working condition
at the time of purchase from Kelley could result in
product malfunction, breakdown, premature wear, death
or serious injury.
NOTE:
this warning.
1.
2.
3.
4.
Fig. 48
