F2 Fuse for cooling unit (2 A delayed)

02 Water circulation return connector

03 Water circulation output connector

04 Filler hole for water tank

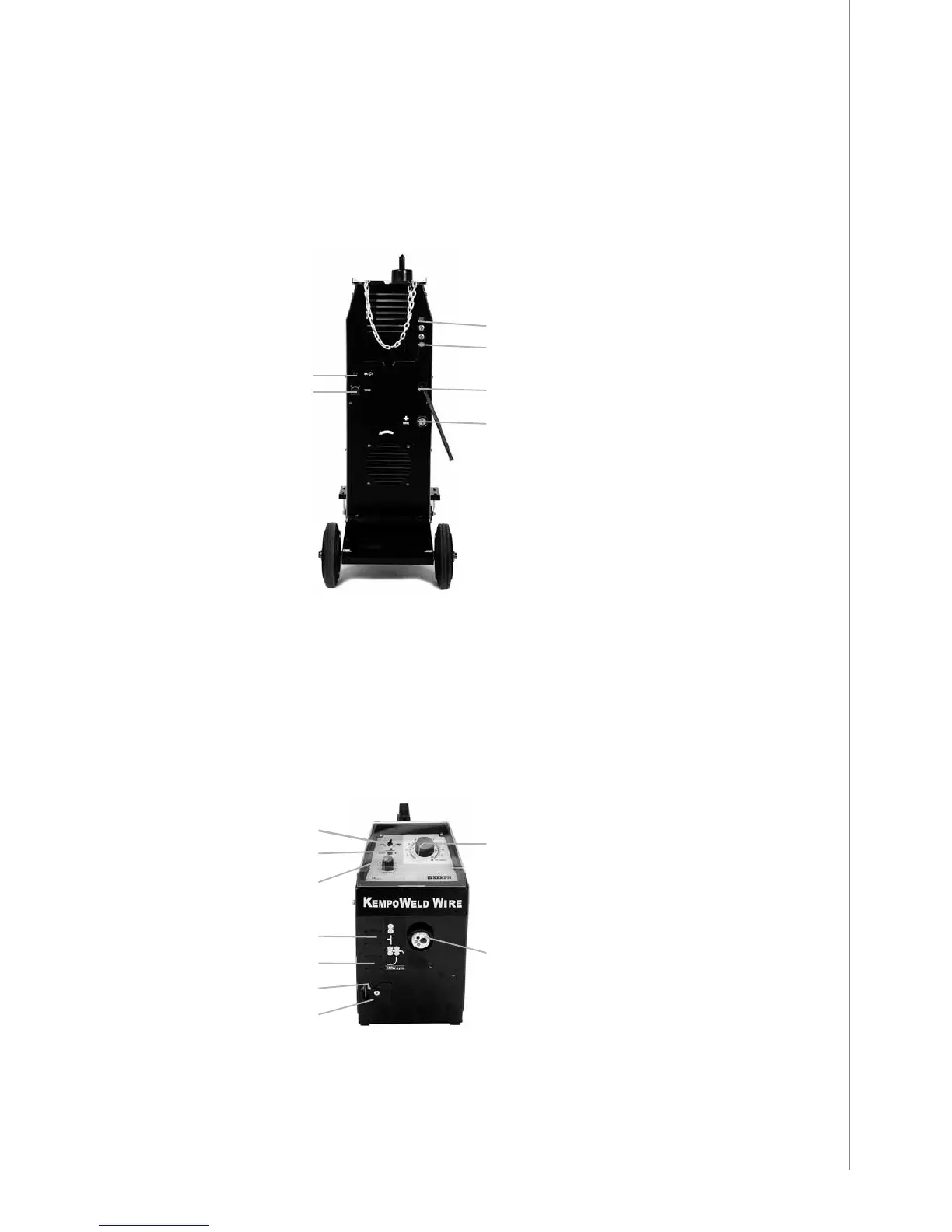

1.3.3 Rear plate of Kempoweld 3200, 3200W

01 Inlet of mains cable

F1 Fuse of auxiliary transformer (8 A delayed)

X3 Welding current connector for wire feeder unit (+ pole)

X4 Control connector for wire feeder unit

1.4 WIRE FEEDER PANELS

1.4.1 Front panel

R1 Adjustment for wire feed

X1 Welding gun connector (EURO)

K1 Trigger function mode (continuous/hold)

K2 Welding mode selection (continuous/spot/cycle arc)

R2 Adjustment for welding mode timing (spot or cycle time)
