ArcValidator
Operating manual - EN

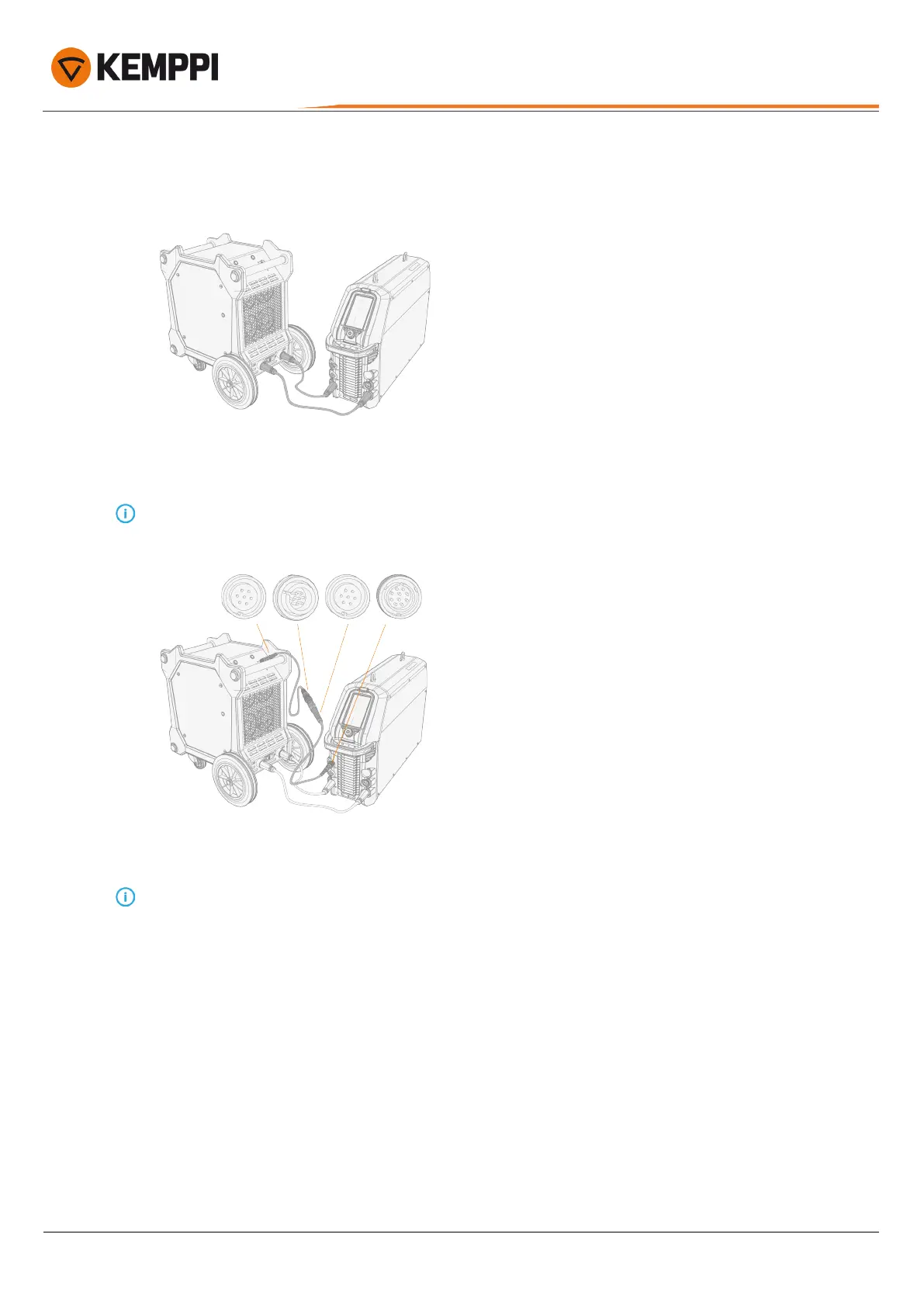

Connections for automatic verification
1. Connect the ArcValidator cables to the welding equipment's welding cable (+/-) connectors.
2. Connect the ArcValidator control cable from the ArcValidator load bank control cable connector to the welding
equipment's (remote) control cable connector.
Use the adapter cable if required.
3. Connect the ArcValidator RC device to the ArcValidator load bank.
The DataStick must be installed in the ArcValidator RC for the ArcValidator to work.
© Kemppi
11
AVPCRC / 2224
