2.5 Connecting cables
NOTE! Always check before use that the interconnecting cable, shielding gas hose, earth return
lead/clamp, and mains cable is in a serviceable condition. Ensure that connectors are correctly
fastened. Lose connectors can impair welding performance and damage connectors.

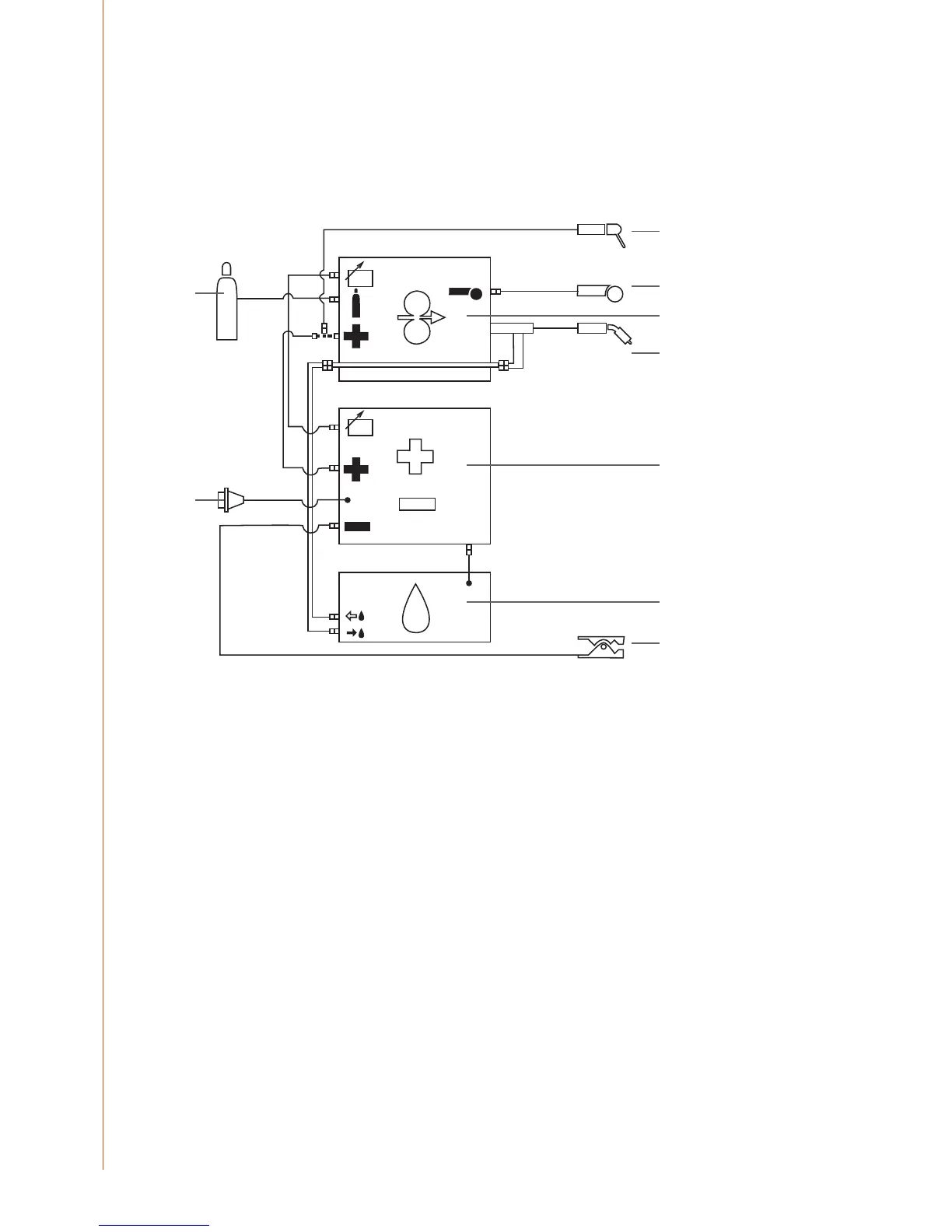

2.5.1 Liquid cooled system: FastMig Pulse + MXF + FastCool 10
1.
4.
8.
2.
3.
9.
5.
6.
7.
1. MXF wire feed unit
2. FastMig Pulse power source
3. FastCool liquid cooler and power connection
4. Gas supply
5. MMA electrode holder
6. Remote control device
7. Liquid cooled welding Gun
8. Power cable
9. Earth return lead and clamp
