SERVICE MANUAL
KEMPACT RA_V_1.2
25 (40)
Kemppi Oy

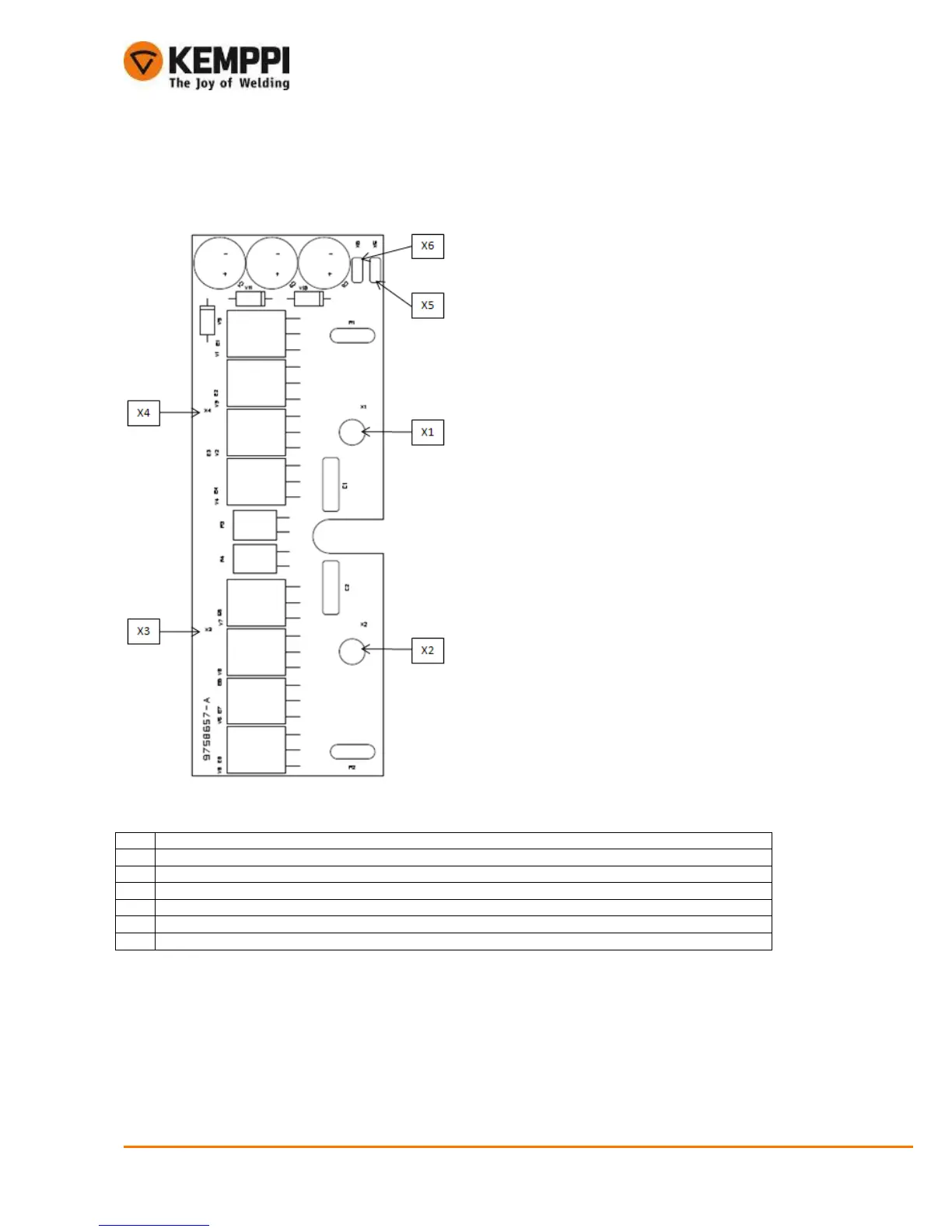

5. SECONDARY RECTIFIER CARD Z002
5.1. Connectors
Pin Signal
X1
Main transformer secondary
X2 Main transformer secondary
X3 Z002 card connection to secondary profile
X4 Z002 card connection to secondary profile
X5
Rectified +24V
X6 Polarity connector (-)
