4 – MASTER MLS™ 1600, MASTERTIG MLS™ 2000 / 0530

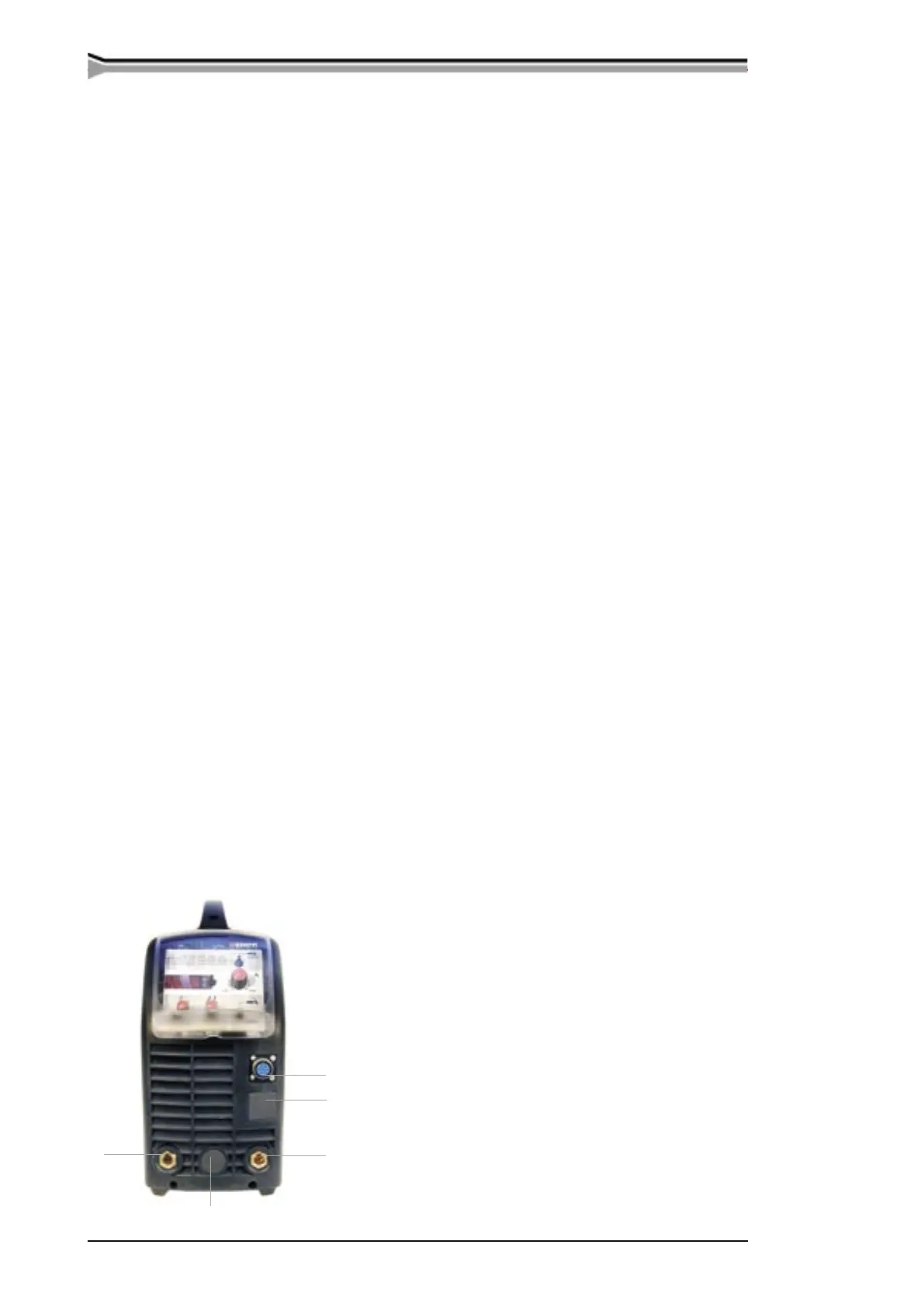

Front of machine
1. remote control connector
2. TIG torch control connector, not in MMA-
version
3. shield gas & current connector for TIG-
torch, not in MMA-version
4. (+) -connector for electrode holder or earth
cable, in TIG-welding for earth cable
5. (-)-connector for earth cable or electrode
holder in MMA-welding (stick welding)
Welding power circuit
Isolate yourself by using proper protective clothing, do not wear wet clothing. Never work on a
wet surface or use damaged cables. Do not put TIG-torch or welding cables on welding machine
or on other electric equipment. Do not press TIG-torch switch, if the torch is not directed towards
the work piece.
Welding fumes
Take care that there is sufficient ventilation during welding. Take special safety precautions when
welding metals which contain lead, cadmium, zinc, mercury or beryllium.
Lifting the equipment
Always remove gas bottle before lifting.
2. INSTALLATION
2.1. REMOVAL FROM PACKAGING
The equipment is packed in durable packages specially designed for them. It is however necessary
to check the equipment before installing it, to make sure that the equipment or a part of it was not
damaged during the transportation. Also check that the delivery corresponds your order and that
you have received all the necessary instructions for installing and operating the equipment. The
packaging material can be recycled.
2.2. LOCATING THE MACHINE
Place the machine on a horizontal, stable and clean ground. Protect the machine from rain and
direct sunshine. Check that there is enough space for cooling air circulation in front of and behind
the machine.
2.3. SERIAL NUMBER
The serial number of the machine is marked on the rating plate. Identifying the serial number is
the only proper means of maintaining and identifying parts for a specific product. It is important
to make correct reference to the serial number of the product when making repairs or ordering
spare parts.
2.4. INSTALLATION AND MAIN PARTS
1
2
4
5
3
