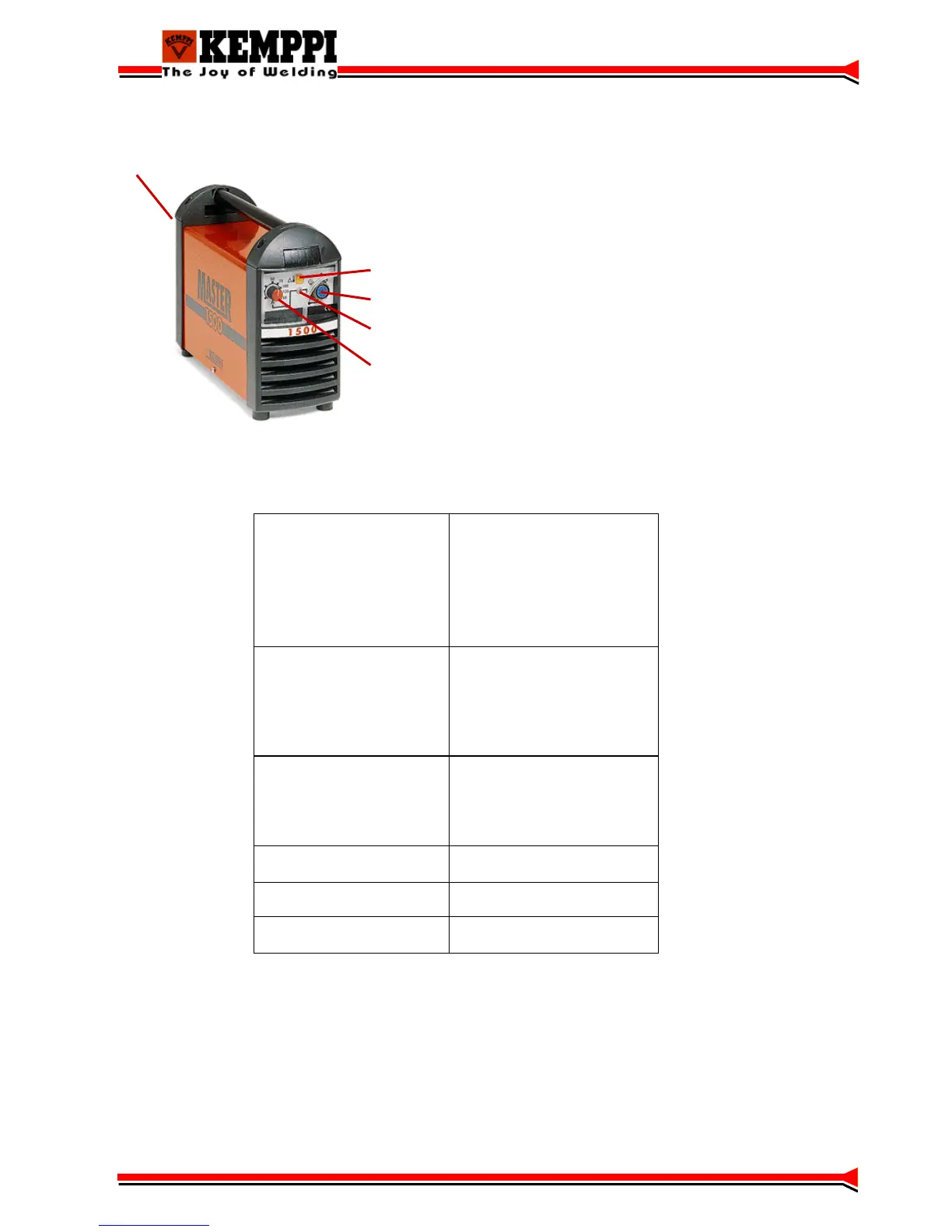

Master 1500
1
2
3
4
5
1 Main switch S001, welding current connectors and
dynamics adjustment
2 Overheat protection signal lamp
3 Remote controller connection
4 Local / remote control
5 Current adjustment potentiometer
Supply voltage 1
∼
,50/60 Hz
Connection power 20% ED
60% ED
100% ED
Supply cable/ fuses
220V –10%….240V +6%
150 A / 6,6 kVA
105 A / 4,4 kVA
75 A / 3,0 kVA
3 x 1,5S / 16 A slow
Welding current range MMA
(TIG
Suitable electrode sizes
Welding power adjustment
15 A / 20,5 V..150 A / 26,0 V
5 A / 10,2 V..150 A / 16,0 V)
∅
1,5…..3,25 mm
stepless
OCV
Efficiency
Idling power
Approx. 80 V
80% (150 A / 26,0 V)
Approx. 10 W
Degree of protection / Casing
class
IP 23C
Weight 10,5 kg (TIG, 13,5 kg)
Auxiliary devices Remote controllers
C 100C, C 100D
4
