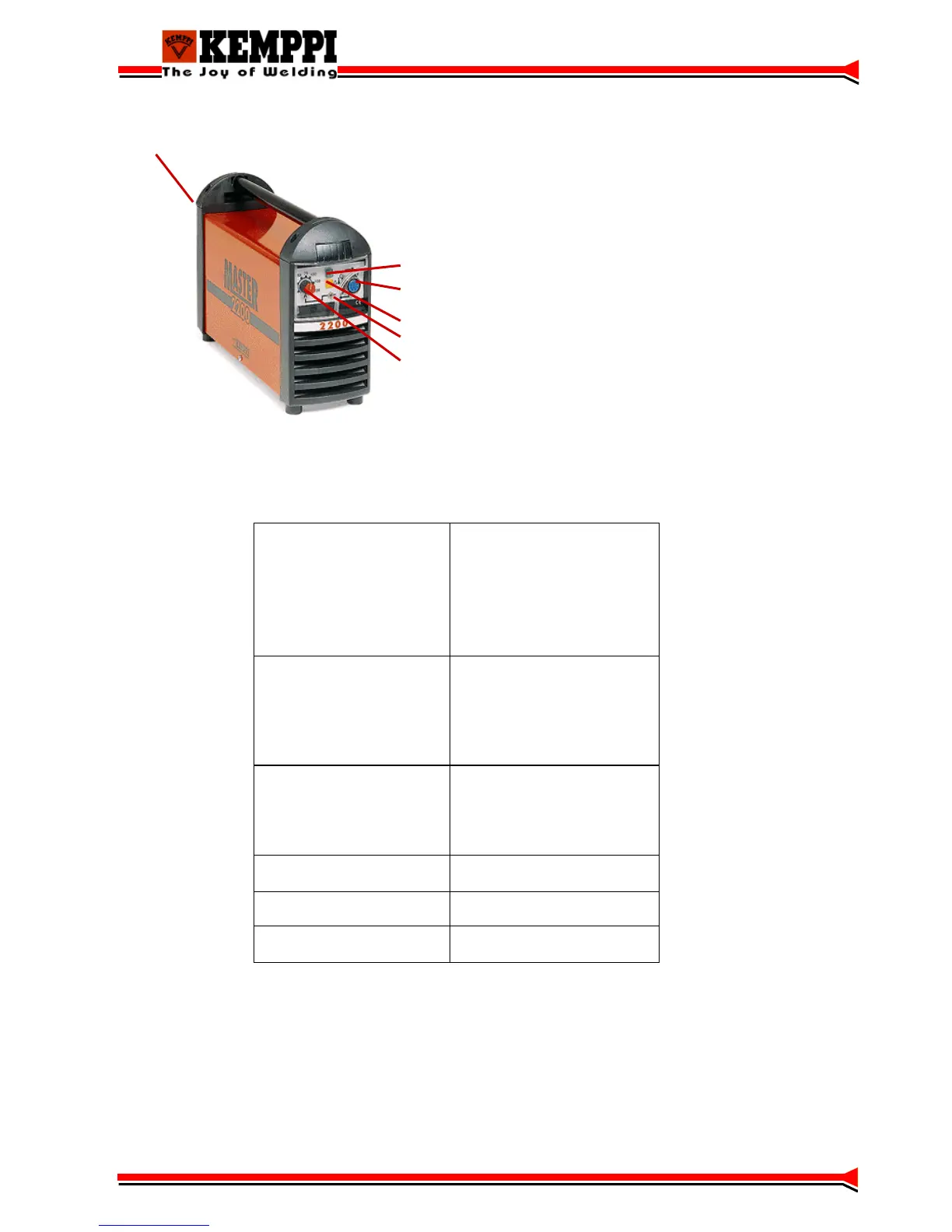

Master 2200
1 Main switch S001, welding current connections and
dynamics adjustment
2 I/0-signal lamp
3 Remote controller connecyor
4 Overheat protection signal lamp
5 Remote / local control selection
6 Current adjustment potentiometer
1
2
3
4
6
5
Supply voltage 3
∼
,50/60 Hz
Connection power 25% ED
60% ED
100% ED
Supply cable / fuses
380V –10%….415V +6%
220 A / 8,4 kVA
145 A / 5,5 kVA
110 A / 3,5 kVA
4 x 1,5S / 10 A slow
Welding current range MMA
(TIG
Suitable electrode sizes
Welding power adjustment
15 A / 20,5 V…220 A / 28,8 V
5 A / 10,2 V…220 A / 18,8)
∅
1,5…4,0 (5,0) mm
stepless
OCV
Efficiency
Idling power
Approx. 80 V
82% (220 A / 28,8V)
Approx. 10 W
Degree of protection / Casing
class
IP 23C
Weight 12,5 kg (TIG, 16 kg)
Auxiliary devices Remote controllers
C 100C, C 100D
5
