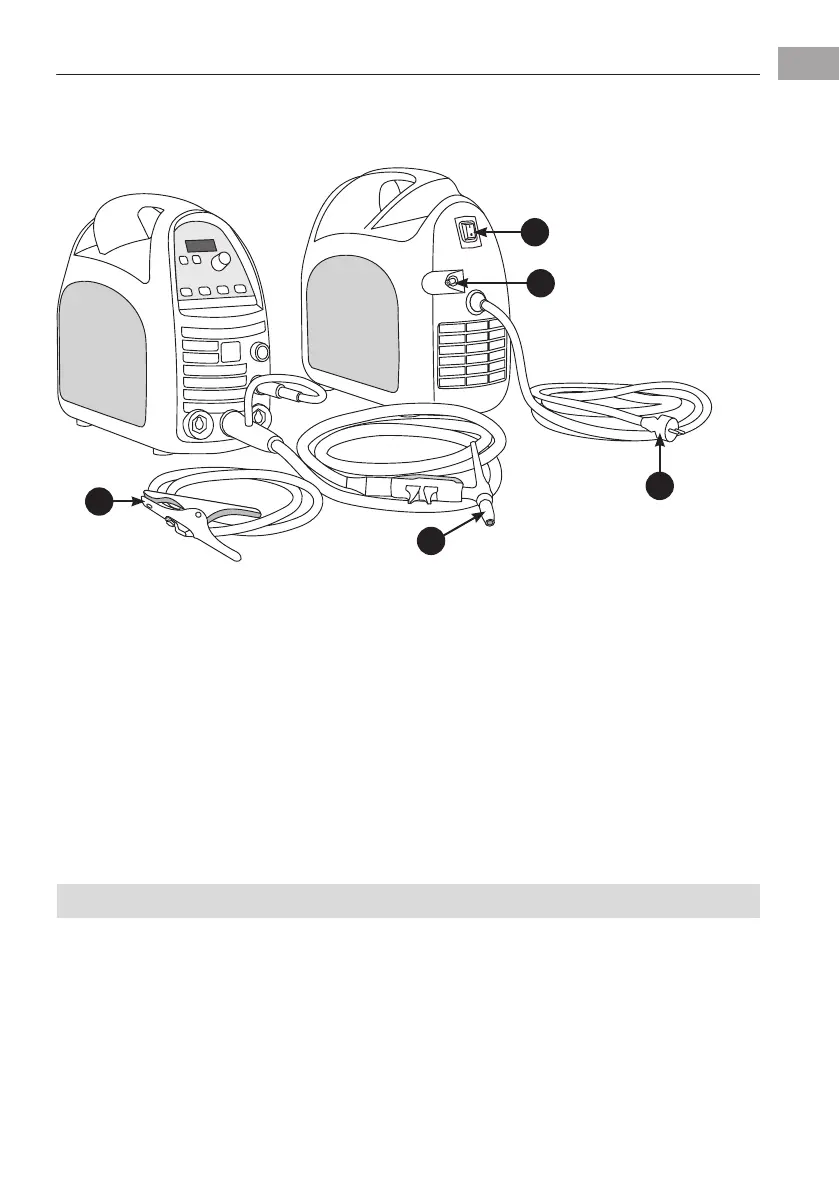

3.2. General View of the machine
1. Welding torch
2. Earth return clamp
3. On/off main switch (16 amp mains supply should also be switched at the socket)
4. Supply voltage cable
5. Shielding gas hose snap connector
3.3. Cable connections
Connection to the mains
The machine is equipped with a 3.3 m long supply voltage cable and plug. Connect the
supply voltage cable to the mains.
!
The fuse size needed for full duty operation is 16 A delayed.
If you use an extension power supply cord, it’s cross sectional area should be at least
as large as the supply voltage cable tted to the machine (3 x 2.5 mm
2
). The maximum
length for the extension cable is 50 m.
The machine can also be used with a generator. The minimum power for the generator
is 3.5 kVA, and the recommended power is 7.0 kVA in order for the machine to operate
at maximum capacity.
1
4
2
3
5
