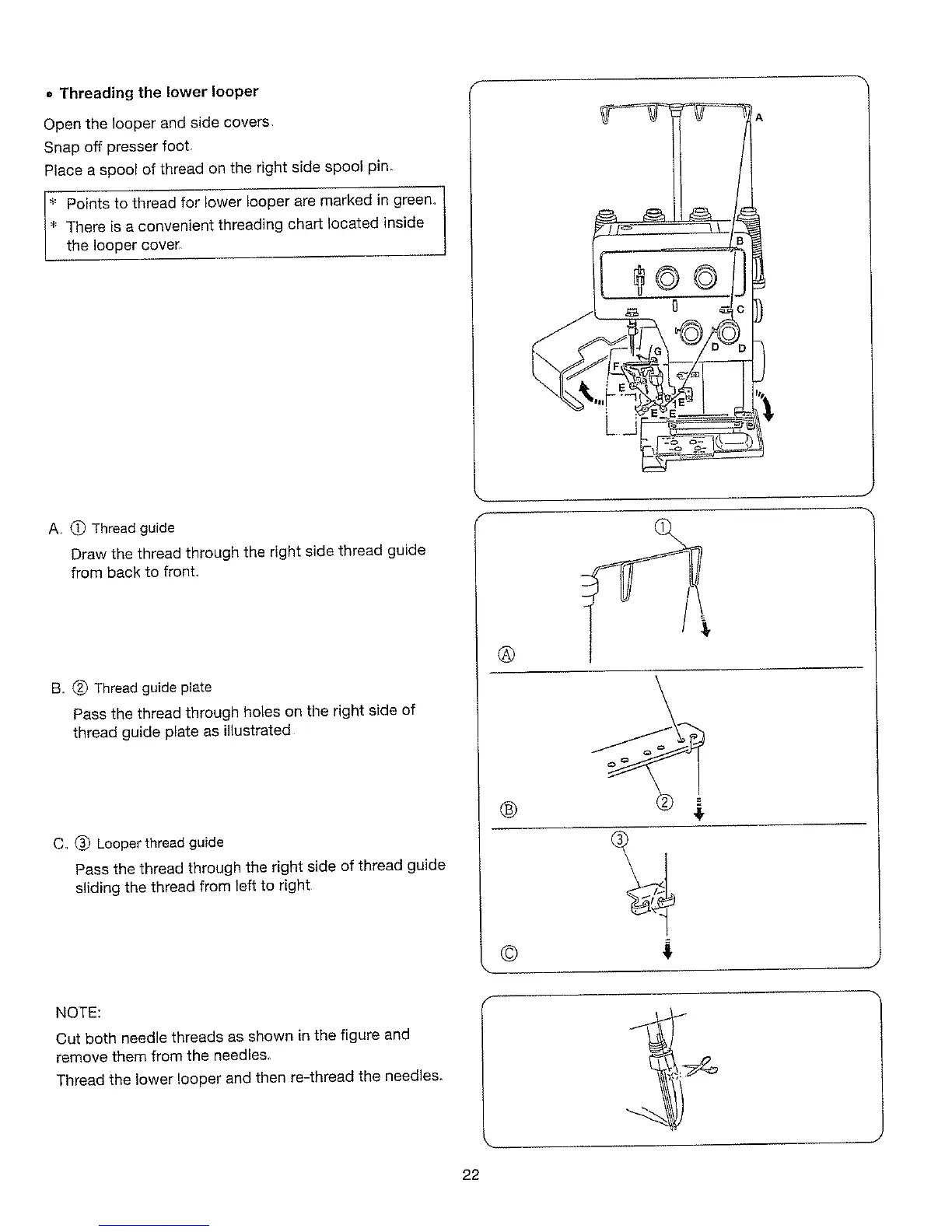

• Threading the lower looper
Open the looper and side covers,
Snap off presser foot,
Place a spool of thread on the right side spool pin_
_' Points to thread for lower looper are marked in green,
' There is a convenient threading chart located inside
the looper cover
A (1) Thread guide
Draw the thread through the right side thread guide
from back to front
B. _) Thread guide plate
Pass the thread through holes on the right side of
thread guide plate as illustrated
C, (_ Looper thread guide
Pass the thread through the right side of thread guide
sliding the thread from left to right
t
®
©
i
NOTE:
Cut both needle threads as shown in the figure and
remove them from the needles,
Thread the lower looper and then re-thread the needles.
22
