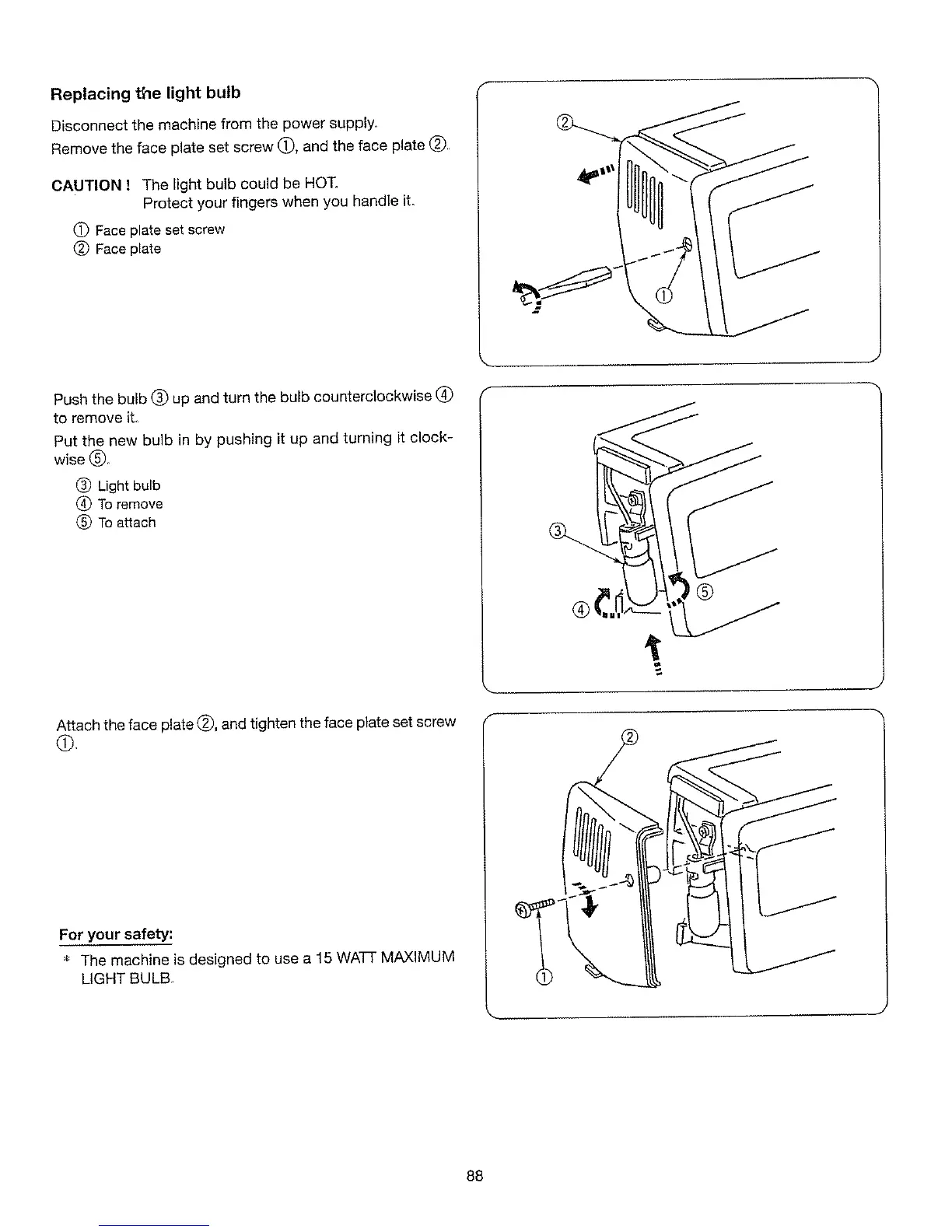

Replacing the light bulb
Disconnect the machine from the power supply
Remove the face plate set screw (_), and the face plate _).
CAUTION ! The light bulb could be HOT.
Protect your fingers when you handle It.
C) Face plate set screw
_) Face plate
w
m
Push the bulb (_) up and turn the bulb counterclockwise (_
to remove it_
Put the new bulb in by pushing it up and turning it clock-
wise _).
(_) Light bulb
(_) To remove
(_) To attach
Attach the face plate (_, and tighten the face plate set screw
G
For your safety:
* The machine is designed to use a 15 WATT MAXIMUM
LIGHT BULB.
88
