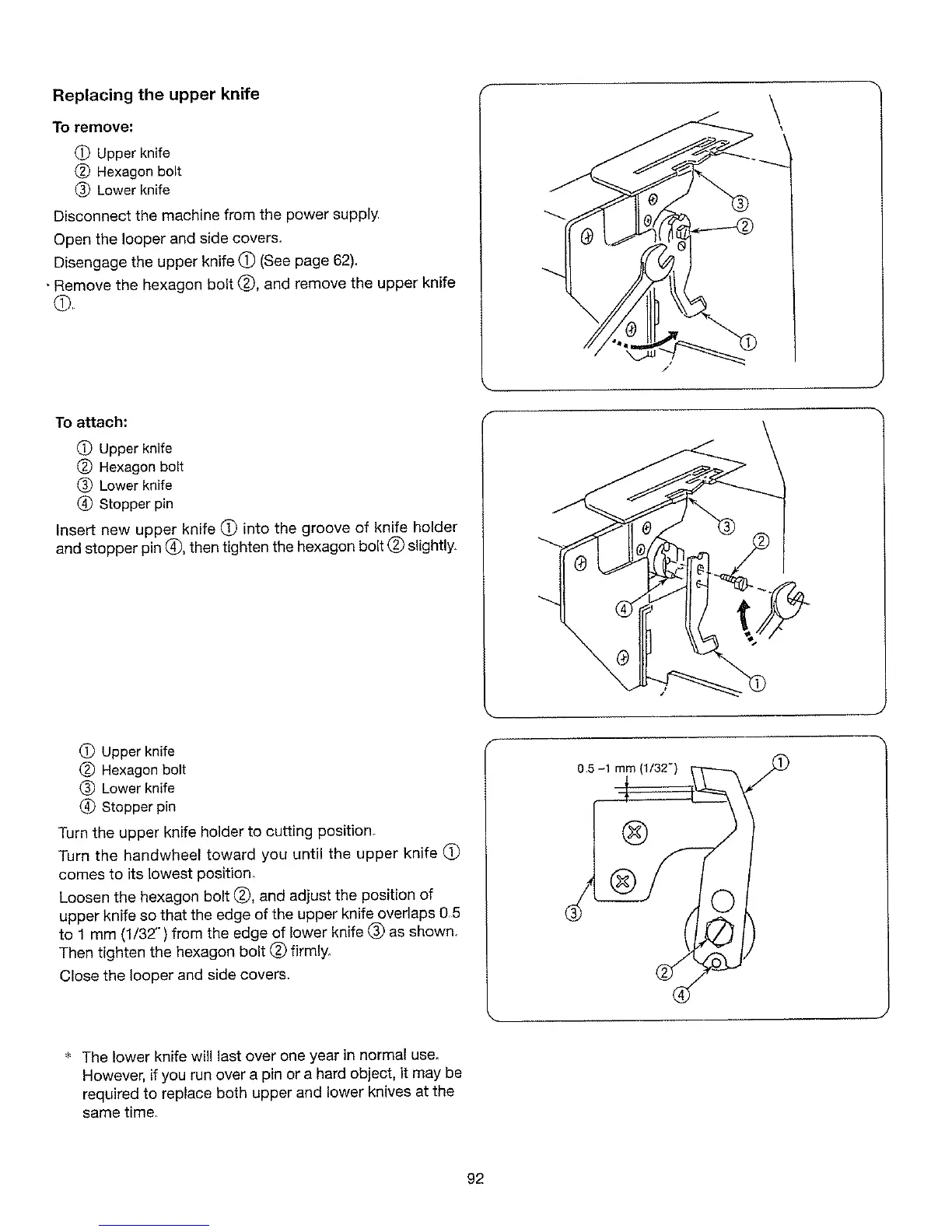

Replacing the upper knife
To remove:
C) Upper knife
(_) Hexagon bolt
(_) Lower knife
Disconnect the machine from the power supply
Open the looper and side covers.
Disengage the upper knife C) (See page 62).
, Remove the hexagon bolt (_), and remove the upper knife
®
\
To attach:
C) Upper knife
(_) Hexagon bolt
(_) Lower knife
(_ Stopper pin
Insert new upper knife (_) into the groove of knife holder
and stopper pin (_), then tighten the hexagon bolt (_) slightly.
C) Upper knife
(_) Hexagon bolt
(_) Lower knife
(_) Stopper pin
Turn the upper knife holder to cutting position°
Turn the handwheel toward you until the upper knife C)
comes to its lowest position_
Loosen the hexagon bolt (_, and adjust the position of
upper knife so that the edge of the upper knife overlaps 05
to 1 mm (1/32") from the edge of lower knife (_) as shown.
Then tighten the hexagon bolt (_) firmly.,
Close the looper and side covers.
05 -1 mm (1132_)
_" The lower knife will last over one year in normal use.
However, if you run over a pin or a hard object, it may be
required to replace both upper and lower knives at the
same time
92
