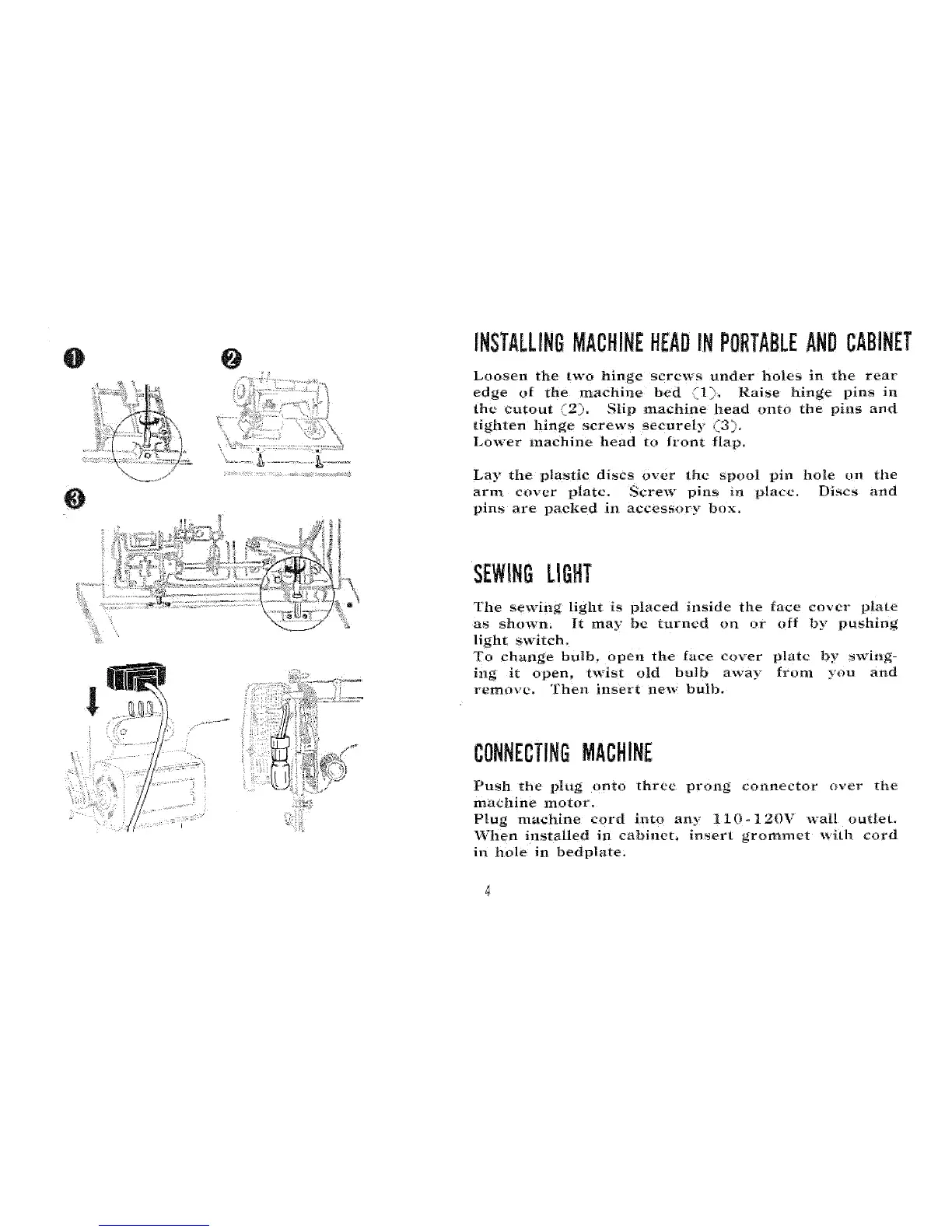

INSTALLINIMACHINEHEADINPORTABLEANDCABINET
Loosen the two hinge screws under holes in the rear
edge of the maehii_e bed {1). Raise hinge :pins in
the cutout [2], Slip machine head onto the pins and
tighten hinge screws securely [3),
Lower machine head to front flap.
Lay the plastic discs Over the spool pin hole on the
arm cover plate. Screw pins in place. :Discs and
pins are packed in accessory box,
SEWIN_LIGHT
The sewing light is placed inside the lace cover plate
as show_, It may be turned on or off by pttshing
light switch,
To change bulb. open the {ace cover plate by swit_g-
ing it open. twist old bulb away from you and
remove. Then insert new bull).
CONNECTINGMACHINE
Push the plttg onto three prong connector over the
machine motor.
Plug machine cord into any 110-120V wal! outlet.
When installed in cabinet, insert grommet _ith cord
in hole in bedplate.
