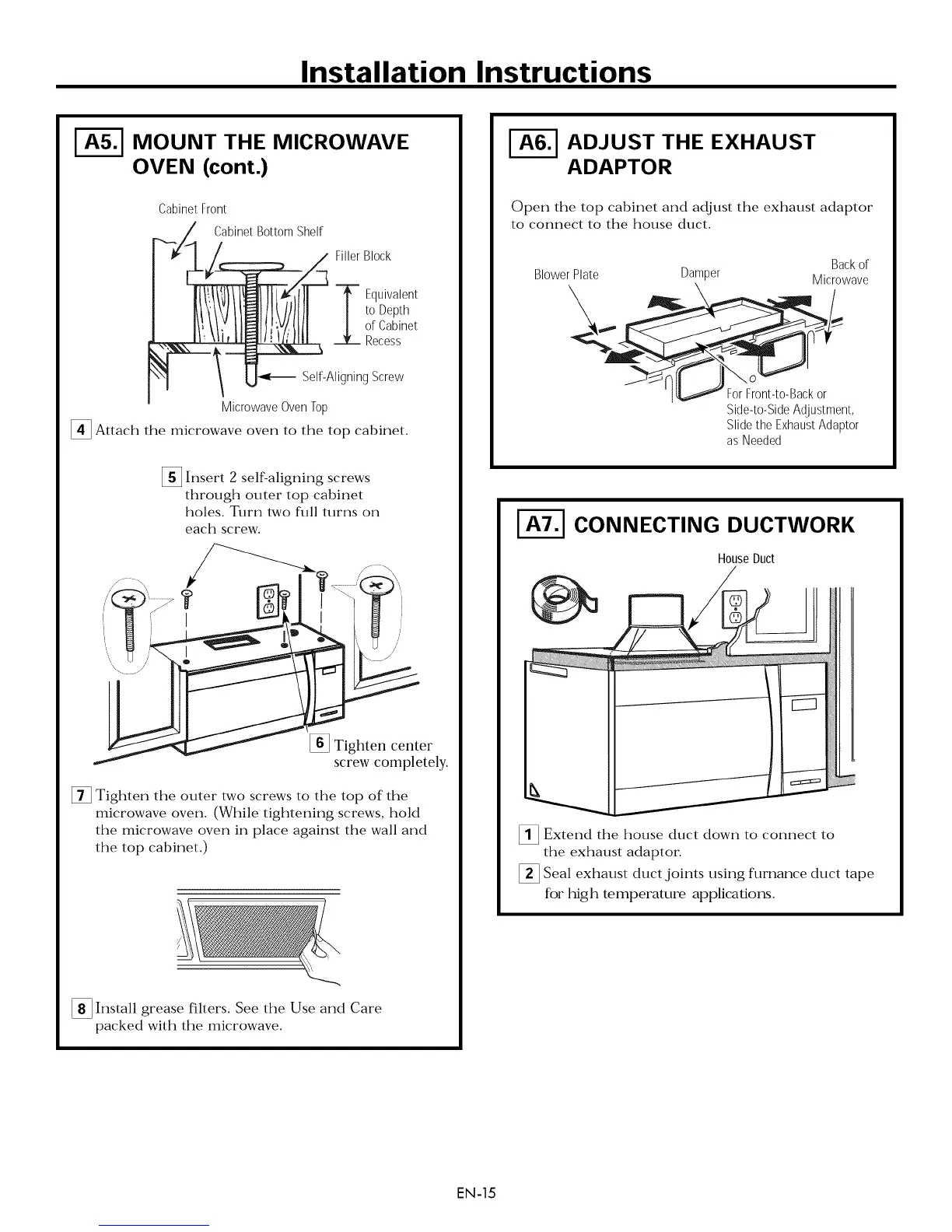

Kenmore 79080329310 - A6. ADJUST THE EXHAUST ADAPTOR; A7. CONNECTING DUCTWORK

Installation Instructions
MOUNT THE MICROWAVE
OVEN (cont.)
Cabinet Front
Cabinet Bottom Shelf
_ ;2:_._//,_ Filler Block
_TE_f1TT,_111-"T Equiva,ent
/toDepth
!\\1 IU_-_ Self-Aligning Screw
Microwave Oven Top
_l_ Attach the microwave oven to the top cabinet.
[] Insert 2 self-aligning screws
through outer top cabinet
holes. Turn two full turns on
each screw.
[] Tighten center
screw completely.
[] Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
[] Install grease filters. See the Use and Care
packed with the microwave.
ADJUST THE EXHAUST
ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
Back of
Blower Plate Damper Microwave
Side-to-Side Adjustment,
Slide the Exhaust Adaptor
as Needed
I-_ CONNECTING DUCTWORK
HouseDuct
]Extend the house duct down to connect to
the exhaust adaptor.
]Seal exhaust duct joints using furnance duct tape
for tfigh temperature applicatiorLs.
EN-15
