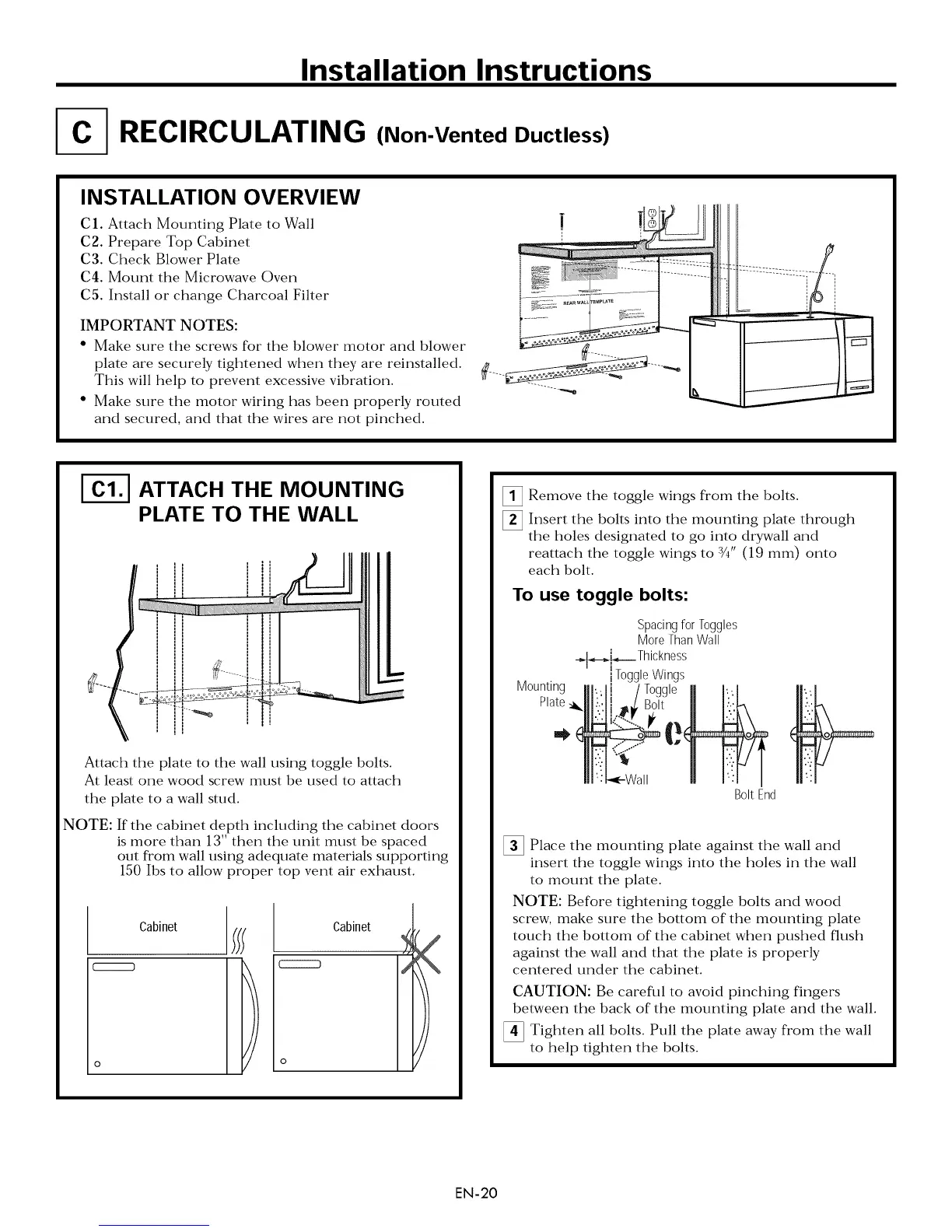

Installation Instructions
RECIRCULATING (Non-Vented Ductless)
INSTALLATION OVERVIEW
C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Blower Plate
C4. Mount the Microwave Oven
C5. Install or change Charcoal Filter
IMPORTANT NOTES:
• Make sure the screws for the blower motor and blower
plate are securely tightened when they are reinstalled.
This will help to prevent excessive vibration.
• Make sure the motor wiring has been properly routed
and secured, and that the wires are not pinched.
|
ATTACH THE MOUNTING
PLATE TO THE WALL
===e
Attach the plate to the wall using toggle bolts.
At least one wood screw must be used to attach
the plate to a wall stud.
NOTE: If the cabinet depth including the cabinet doors
is more than 13" then the unit must be spaced
out from wall using adequate materials supporting
150 Ibs to allow proper top vent air exhaust.
Cabinet Cabinet
[]Remove the from the bolts.
toggle wings
_ nsert the bolts into the mounting plate through
the holes designated to go into drywall and
reattach the toggle wings to 3/4" (19 mm) onto
each bolt.
To use toggle bolts:
Mounting
Plate_.
Spacing for Toggles
More Than Wall
_l_.i_,-.--- Thickness
I
l Toggle Wings
Bolt End
_ lace the mounting plate against the wall and
insert the toggle wings into the holes in the wall
to mount the plate.
NOTE: Before tightening toggle bolts and wood
screw, make sure the bottom of the mounting plate
touch the bottom of the cabinet when pushed flush
against the wall and that the plate is properly
centered under the cabinet.
CAUTION: Be careflfl to avoid pinching fingers
between the back of the mounting plate and the wall.
_ Tighten all bolts. Pull the plate away from the wall
to help tighten the bolts.
EN-20
