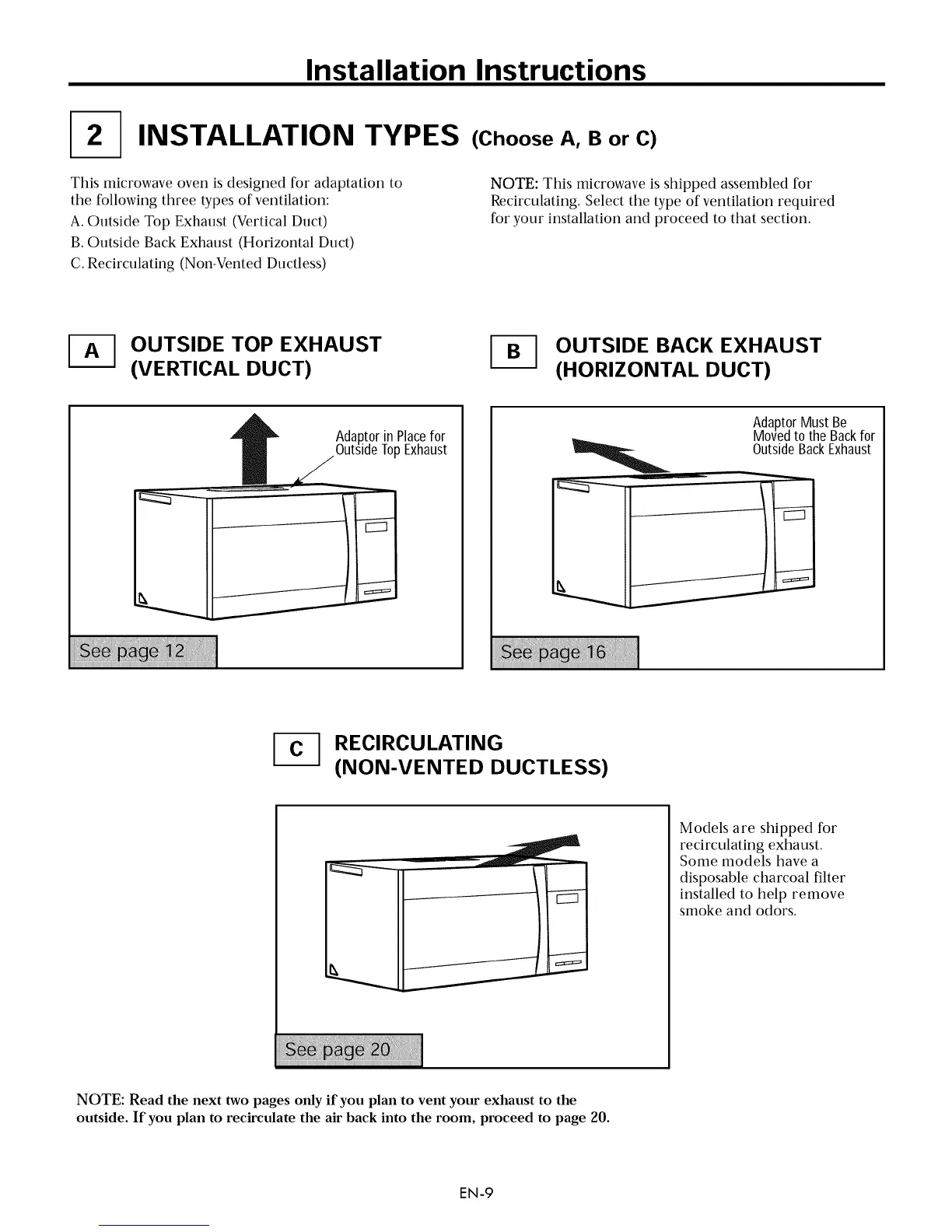

Installation Instructions
INSTALLATION TYPES
This microwave oven is designed for adaptation to
the following three types of ventilation:
A. Outside Top Exhaust (Vertical Duct)
B. Outside Back Exhaust (Horizontal Duct)
C. Recirculating (Non-Vented Ductless)
(Choose A, B or C)
NOTE: This microwave is shipped assembled for
Recirculating. Select the type of ventilation required
for your installation and proceed to that section.
OUTSIDE TOP EXHAUST
(VERTICAL DUCT)
OUTSIDE BACK EXHAUST
(HORIZONTAL DUCT)
Adaptorin Placefor
utsideTopExhaust
AdaptorMustBe
Movedto theBackfor
OutsideBackExhaust
RECIRCULATING
(NON-VENTED DUCTLESS)
Models are shipped for
recirculating exhaust.
Some models have a
disposable charcoal filter
installed to help remove
smoke and odors.
NOTE: Read the next two pages only if you plan to vent your exhaust to the
outside. If you plan to recirculate the air back into the room, proceed to page 20.
EN-9
