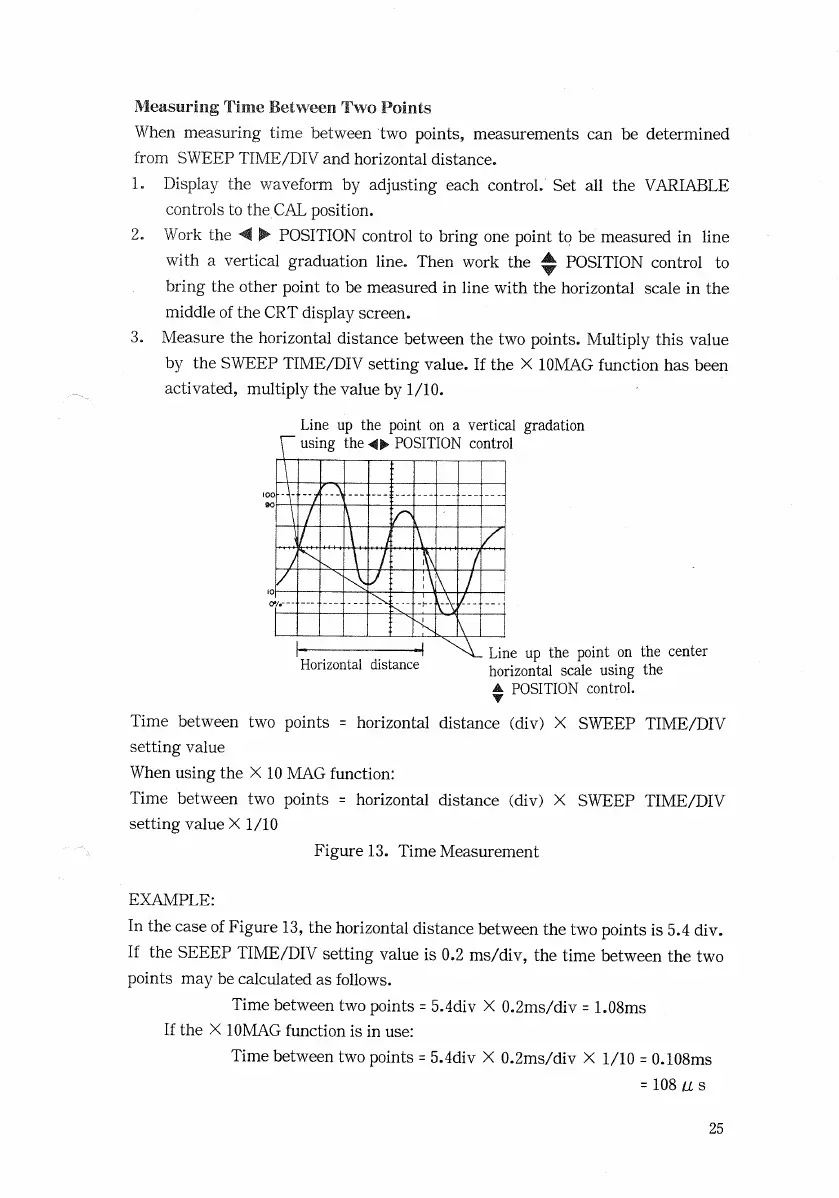

Measuring Time Between Two Points
When measuring time between two points, measurements can be determined
from SWEEP TIME/DIV and horizontal distance.
1. Display the waveform by adjusting each control. Set all the VARIABLE
controls to the CAL position.
2. Work the <\ • POSITION control to bring one point to be measured in line
with a vertical graduation line. Then work the ^ POSITION control to
bring the other point to be measured in line with the horizontal scale in the
middle of the CRT display screen.
3. Measure the horizontal distance between the two points. Multiply this value
by the SWEEP TIME/DIV setting value. If the X 10MAG function has been
activated, multiply the value by 1/10.
Horizontal distance
Line up the point on the center
horizontal scale using the
A POSITION control.
Time between two points = horizontal distance (div) X SWEEP TIME/DIV
setting value
When using the X 10 MAG function:
Time between two points = horizontal distance (div) X SWEEP TIME/DIV
setting value X 1/10
EXAMPLE:
In the case of Figure 13, the horizontal distance between the two points is 5.4 div.
If the SEEEP TIME/DIV setting value is 0.2 ms/div, the time between the two
points may be calculated as follows.
Time between two points = 5.4div X 0.2ms/div = 1.08ms
If the X 10MAG function is in use:
Time between two points = 5.4div X 0.2ms/div X 1/10 = 0.108ms
= 108 a s
25
Line up the point on a vertical gradation
using the 4> POSITION control
Figure 13. Time Measurement
