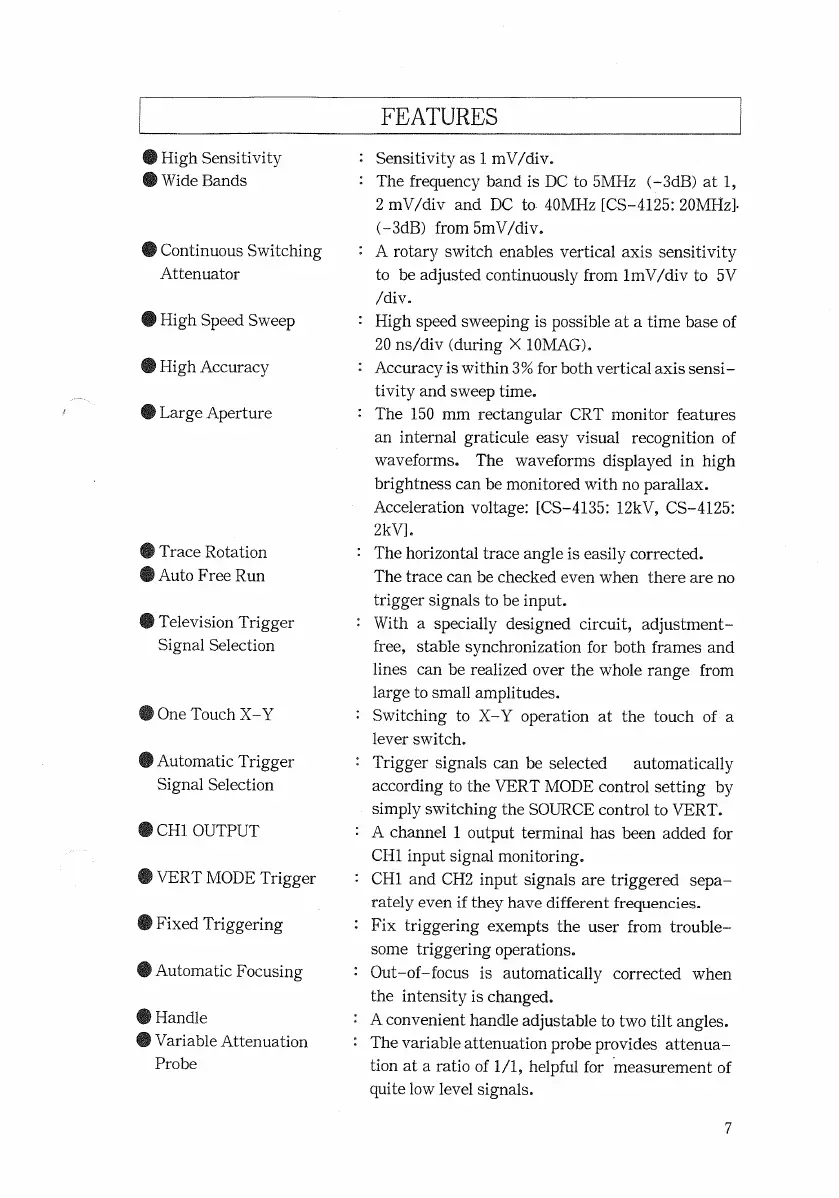

FEATURES
•
High
Sensitivity : Sensitivity as 1
mV/div.
•
Wide Bands : The frequency band is DC to
5MHz
C-3dB)
at 1,
2
mV/div
and DC to- 40MHz
[CS-4125:
20MHz].
(-3dB)
from
5mV/div.
©
Continuous Switching : A. rotary switch enables vertical
axis
sensitivity
Attenuator to be adjusted continuously from
lmV/div
to 5V
/div.
•
High
Speed Sweep :
High
speed sweeping is possible at a time
base
of
20 ns/div (during X
10MAG).
•
High
Accuracy
:
Accuracy is
within
3% for both vertical
axis
sensi-
tivity
and sweep time.
•
Large Aperture : The 150 mm rectangular CRT monitor features
an
internal graticule easy
visual
recognition of
waveforms.
The waveforms displayed in high
brightness can be monitored
with
no parallax.
Acceleration
voltage:
[CS-4135:
12kV,
CS-4125:
2kV].
•
Trace Rotation : The horizontal trace angle is easily corrected.
•
Auto Free Run The trace can be checked even when
there
are no
trigger signals to be input.
•
Television
Trigger :
With
a specially designed circuit, adjustment-
Signal
Selection free, stable synchronization for both frames and
lines
can be realized over the whole
range
from
large to
small
amplitudes.
#One Touch
X-Y
: Switching to X-Y operation at the touch of a
lever
switch.
•
Automatic Trigger : Trigger signals can be selected automatically
Signal
Selection according to the
VERT
MODE
control setting by
simply
switching the
SOURCE
control to
VERT.
• CHI
OUTPUT
: A channel 1
output
terminal has been
added
for
CHI
input signal monitoring.
• VERT
MODE
Trigger : CHI and CH2 input signals are triggered sepa-
rately
even if they have different
frequencies.
•
Fixed
Triggering : Fix triggering exempts the user from trouble-
some triggering operations.
•
Automatic Focusing : Out-of-focus is automatically corrected when
the intensity is changed.
•
Handle : A convenient handle adjustable to two
tilt
angles.
•
Variable Attenuation : The variable attenuation
probe
provides
attenua-
Probe tion at a ratio of 1/1, helpful for measurement of
quite low
level
signals.
