PANEL EXPLANATION
FRONT PANEL
(1) Cathode Ray Tube (CRT)
The effective display screen surface runs over an area of eight 1cm divi-
sions along the vertical axis and ten 1cm divisions along the horizontal
axis. With an inner graticule etched right onto the tube face, the chance of
measurement errors due to parallax occurring between the trace and the
graticule have been significantly reduced. There is also a % display for
measuring rise time on the left edge of the graticule.
(2) POWER Switch (j*. ON/ JL OFF)
A push-button type switch that turns the power source on and off. Press-
ing the switch turns the power on. Pressing it again turns power off.
(3) Pilot Lamp
Light ups when the power is turned on.
(4) CAL Terminal
A voltage terminal for calibration. To be used for adjusting the probe.
Capable of 1 volt peak to peak, positive polarity, square wave signals with
approx. 1kHz is enabled.
(5) INTENSITY Control
For adjusting the brightness of the trace line.
(6) FOCUS Control
For adjusting the focus and attaining the clearest displays possible. The
automatic focusing corrects out-of-focus automatically even when the
INTEN control is turned. However, it may result in slight out-of-focus.
9

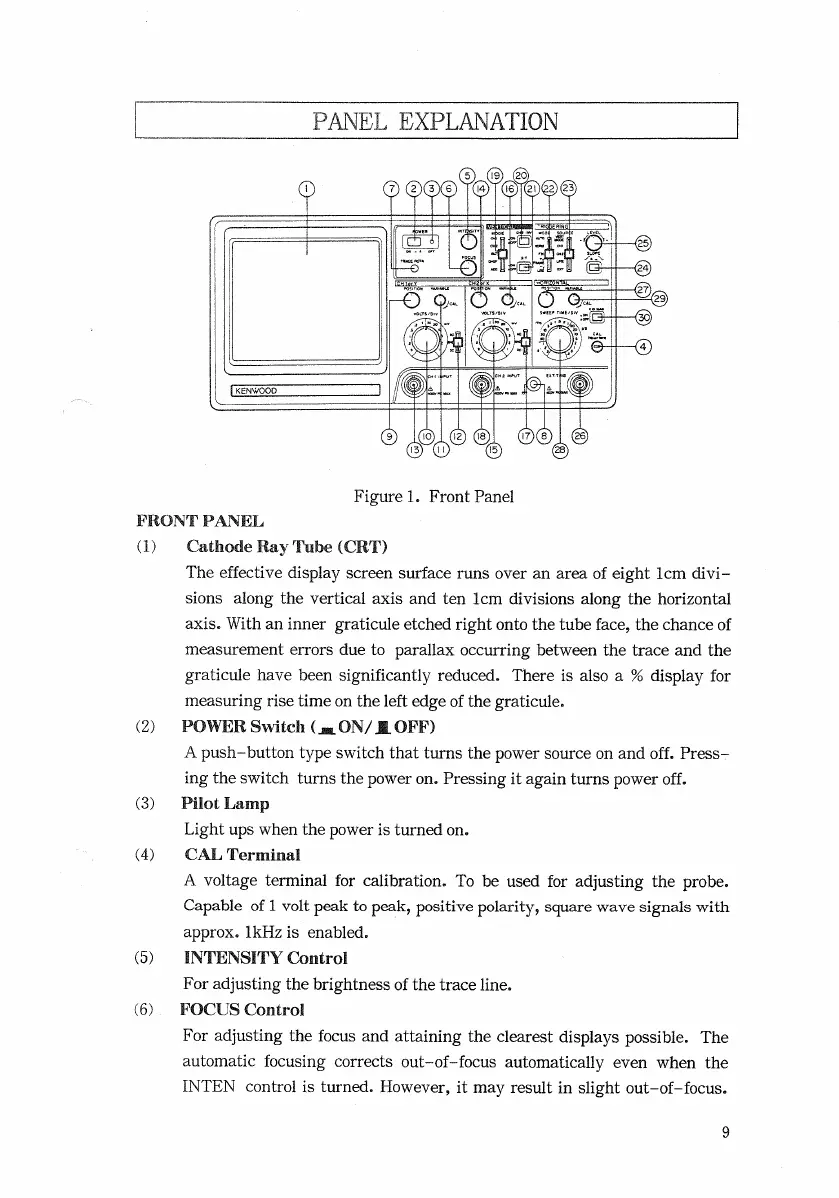

Figure 1. Front Panel
