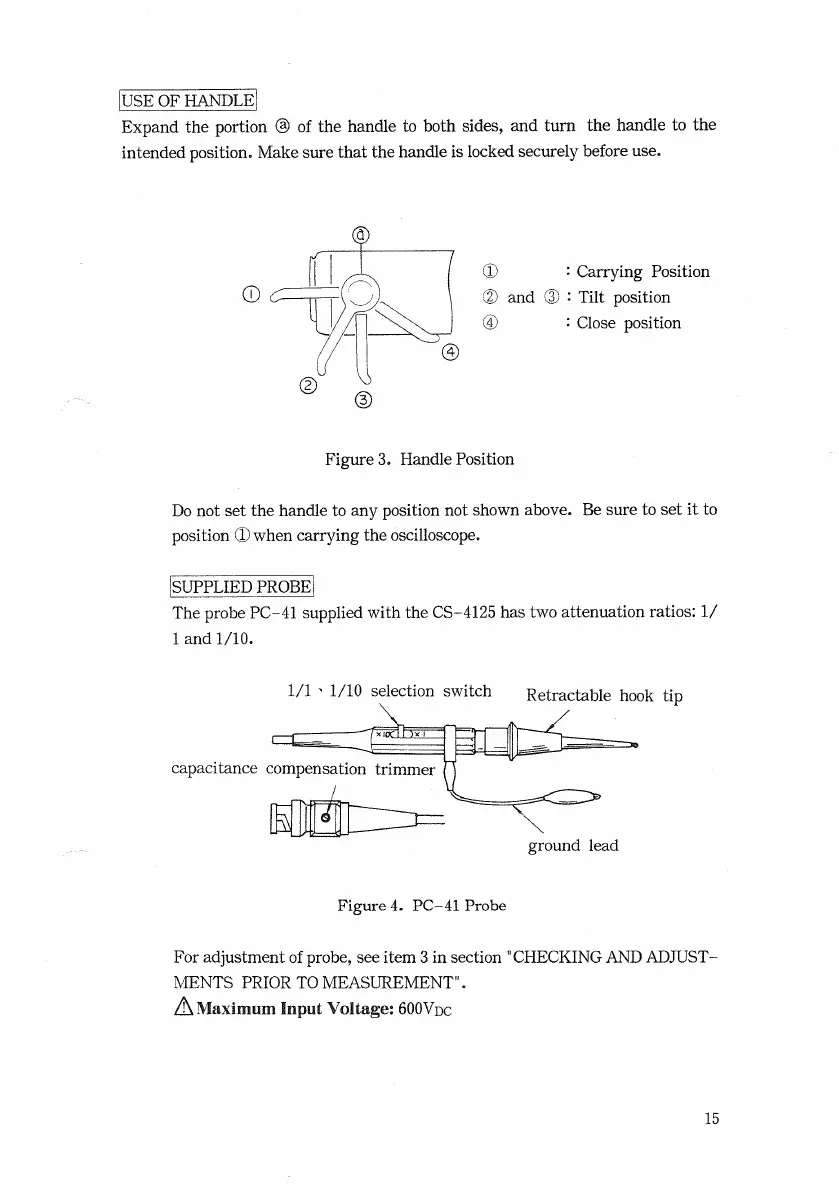

|USE
OF
HANDLE
1
Expand
the portion © of the handle to both sides, and turn the handle to the
intended position. Make sure
that
the handle is locked securely before use.
Do
not set the handle to any position not shown above. Be sure to set it to
position (D when carrying the oscilloscope.
[SUPPLIED PROBE)
The
probe
PC-11
supplied
with
the
CS-4125
has two attenuation ratios: 1/
1
and 1/10.
ground lead
For
adjustment of probe, see item 3 in section
"CHECKING AND ADJUST-
MENTS
PRIOR
TO
MEASUREMENT".
Maximum
Input Voltage:
600VDC
15
CD
:
Carrying
Position
®
and (3) :
Tilt
position
@
: Close position
Figure
3.
Handle Position
1/1 " 1/10 selection switch
Retractable hook tip
capacitance compensation trimmer
Figure
4. PC-41
Probe
