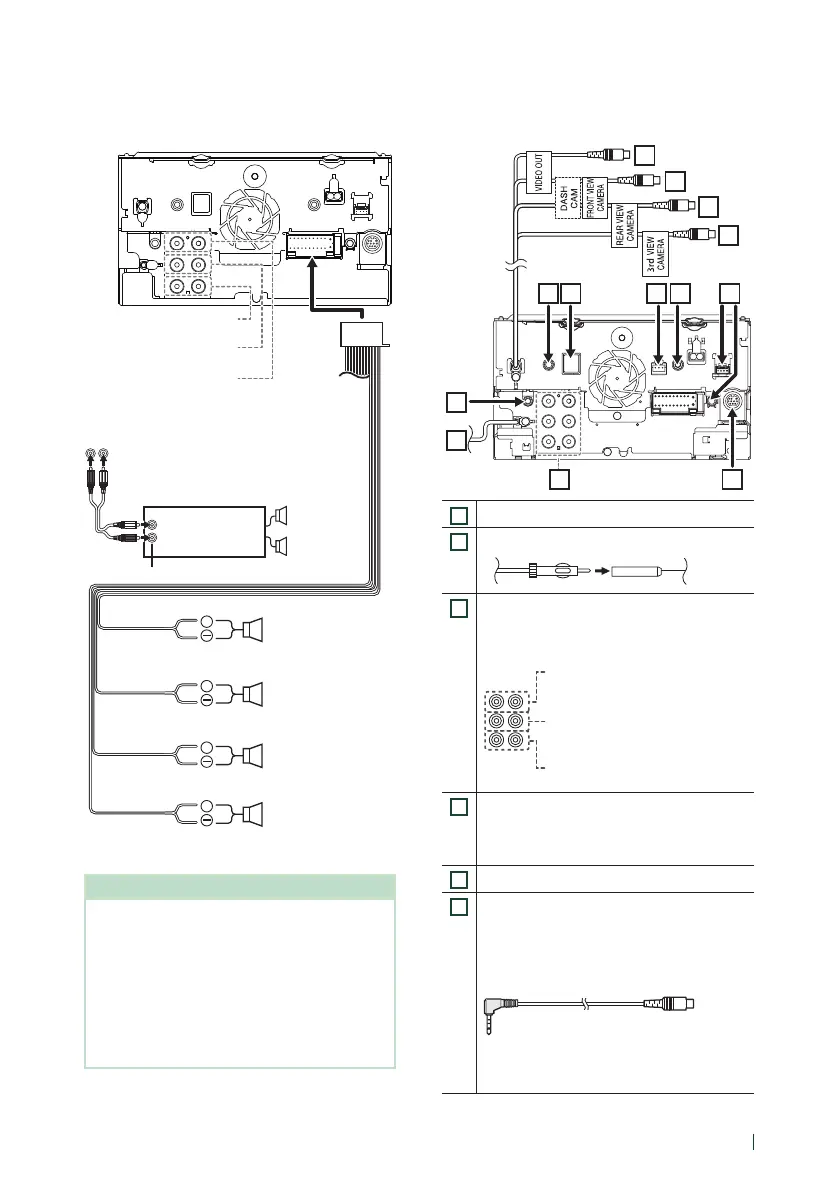

Connection/Installation
105English
+
+
+
+
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
White/Black
Gray/Black
Green/Black
Purple/Black
Speaker impedance: 4-8 Ω
Purple
Green
Gray
White
To mid range left
speaker
Subwoofer Preout
To mid range right
speaker
Mid Range Preout
To tweeter left speaker
Tweeter Preout
To tweeter right
speaker
Power amplifier
(optional
accessory)
RCA Cable
(Sold separately)
Input
Speaker
Preout
NOTE
• For speaker system setup, see 3-way speaker
system setup (P.87).
• For speaker setup and crossover setup, see
Speaker / X’over setup (P.88).
• For how to connect speaker wires to terminals
other than speaker terminals and Preout
terminals, see Connecting the system and
external components (P.105) and Connecting
wires to terminals (P.104).
Ñ 3-way speaker system setup
● DDX9907XR / DMX957XR / DMX907S
Ñ Connecting the system and
external components
11
12
13
56789
2
1
3 4
10
1
AV Audio output (ø3.5 mini jack)
2
FM/AM antenna input
3
When connecting to an external amplifier,
connect its ground wire to the car’s chassis to
avoid damaging the unit.
Rear Audio Preout
(Left; White, Right; Red)
Front Audio Preout
(Left; White, Right; Red)
Subwoofer Preout
(Left; White, Right; Red)
4
SiriusXM Connect Vehicle Tuner connector
For more information on how to install the
SiriusXM Connect Vehicle tuner, consult the
installation guide included with the tuner.
5
iDatalink connector
6
This jack accepts either AV-IN or camera input.
For more information, see To set up the
camera assignment settings (P.77).
[DDX9907XR / DMX957XR / DMX907S :]
Accessory -: Mini plug to RCA cable*
1
or CA-C3AV (optional accessory)
[DDX9707S / DMX9707S :]
CA-C3AV (optional accessory)
