When connecting to an external amplifier, connect its ground
wire to the car’s chassis to avoid damaging the unit.
Part list for installation
(A) Faceplate

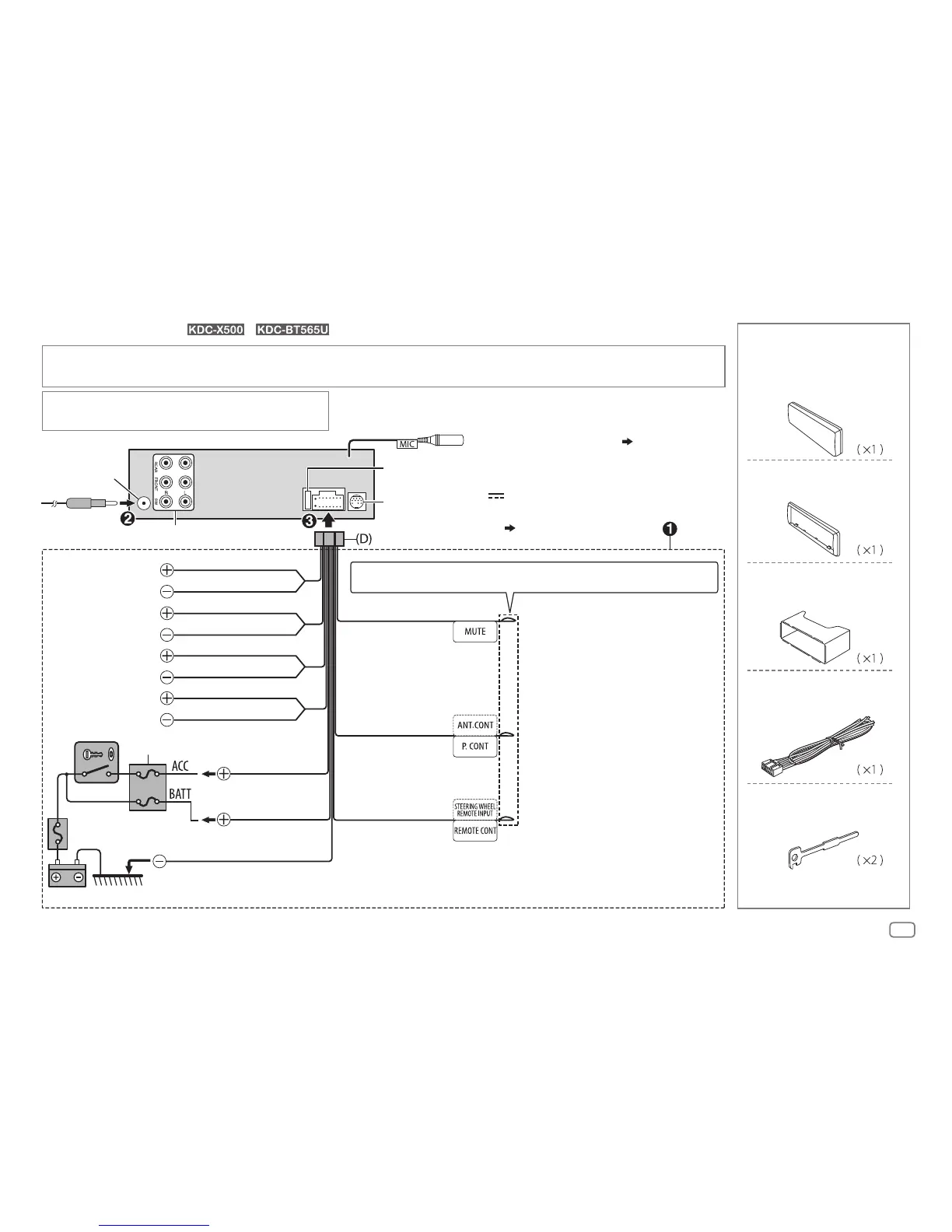

Wiring connection (for / )
Fuse (10A)
Rear/ front/ subwoofer output
Antenna terminal
Car fuse box
Car fuse box
Battery
Ignition switch
Blue/White
(Power control wire/
Antenna control wire)
Light blue/yellow
(Steering remote
control wire)
Red
(Ignition wire)
Yellow
(Battery wire)
Black (Ground wire)
To the metallic body or chassis of the car
To the power control terminal when using
the optional power amplifier or to the
antenna control terminal in the vehicle
Brown
(Mute control wire)
White
Gray
Green
Purple
White/Black
Gray/Black
Green/Black
Purple/Black
To connect the Kenwood navigation
system, refer your navigations manual
To front speaker (left)
To rear speaker (left)
To front speaker (right)
To rear speaker (right)
If no connections are made, do not let the wire come out from the tab.
To the steering wheel remote control
adapter
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key
MIC (Microphone input terminal) (  15 )
Expansion port (12 V
500 mA)
To the optional SiriusXM Vehicle Tuner
(commercially available) (
 12 )
IMPORTANT : We recommend installing the unit with a commercially available custom wiring harness specific for your car and leave this job to
professionals for your safety. Consult your car audio dealer.
JS_KWD_KDC_X500_KW_EN_00_2.indd 31 10/7/2015 5:02:06 PM
