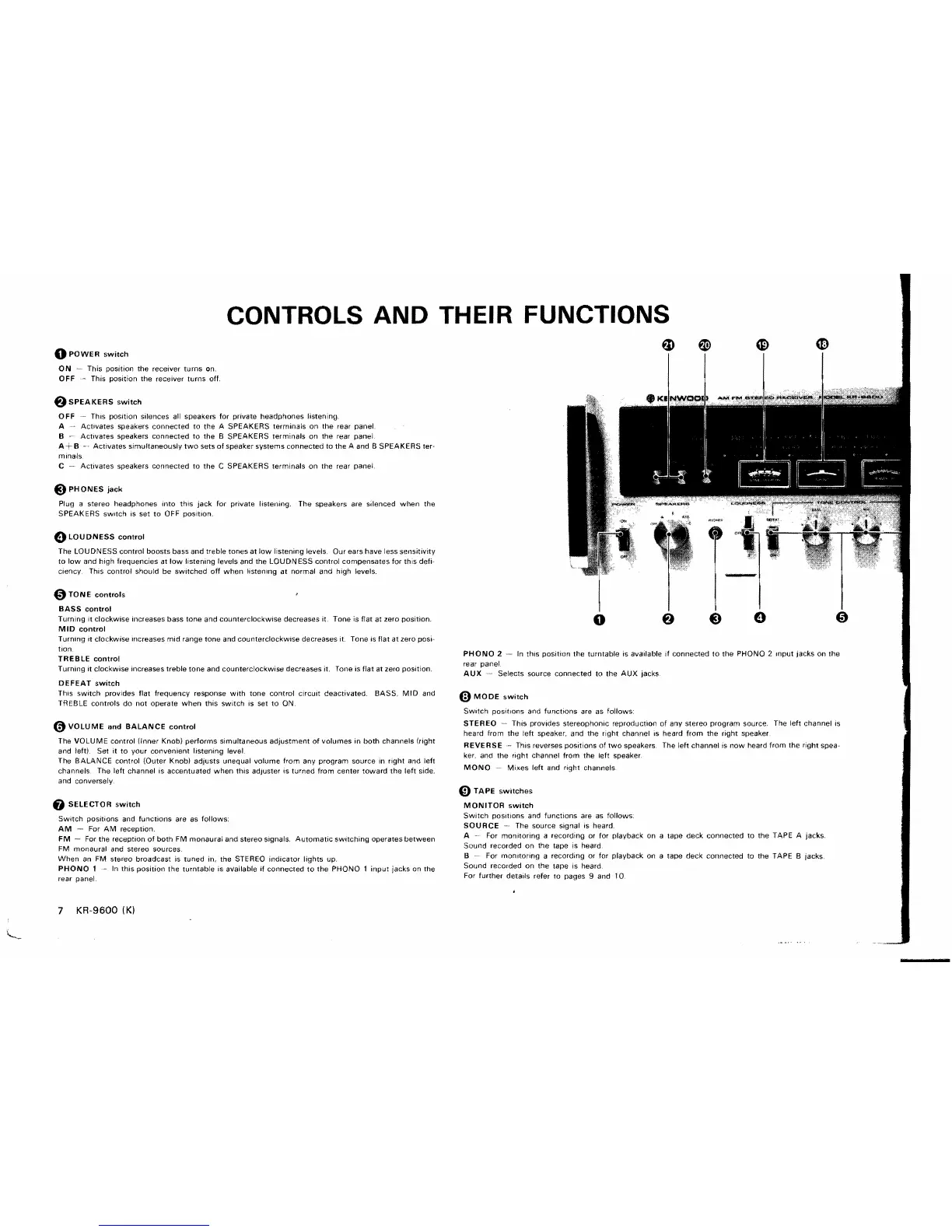

CONTROLS AND THEIR FUNCTIONS
o
POWER
switch
ON
- This position the receiver
turns
on.
OFF
This position
the
receiver
turns
ofr
f)
SPEAKERS
switch
OFF
This position silences all speakers for private headphones listening.
A ActIvates speakers connected
to
the
A SPEAKERS terminals on
the
rear paneL
B - ActIvates speakers connected
to
the B SPEAKERS terminals on the rear panel
A+
B Activates simultaneously
two
sets
of
speaker systems connected to the A and B SPEAKERS ter-
minals
C
Activates
speakers connected
to
the
C SPEAKERS terminals on
the
rear paneL
@)
PHONES
jack
Plug a stereo headphones
into
this
jack
for private listening. The speakers are silenced
when
the
SPEAKERS sWItch is
set
to
OFF position.
e
LOUDNESS
control
The LOUDNESS
control
boosts bass
and
treble tones at
low
listening levels. Our ears have less
sensitivity
to
low
and
high
frequencies at
low
listening levels and the LOUDN ESS control compensates
for
this defi·
ciency This control should be
switched
off
when
listening
at
normal and high levels.
o
TONE
controls
BASS
control
Turnl!1g It clockwise increases bass tone and
counterclockwise
decreases
it
Tone is flat at zero position.
MID
control
Turnmg
it
clockwise increases
mid
range
tone
and counterclockwIse decreases it. Tone
IS
flat
at
zerO
posi-
tion
TREBLE
control
Turning
it
clockwise increases treble tone and counterclockwise decreases
it
Tone is
flat
at zero position.
DEFEAT
switch
This
switch
provides
flat
frequency response
with
tone control
circuit
deactivated. BASS,
MID
and
TREBLE controls
do
not
operate When this
switch
is set
to
ON.
0)
VOLUME
and
BALANCE
control
The
VOLUME
control (Inner Knob)
performs
simultaneous
adjustment
of
volumes
in
both
channels
Iright
and left) Set
it
to
your convenient listening level.
The BALANCE control
IOuter
Knob) adjusts unequal volume from any program source in right and left
channels. The
left
channel is accentuated
when
this
adjuster is
turned
from center
toward
the
left
side,
and conversely.
8
SELECTOR
switch
Switch
positions and functions are as follows:
AM
For
AM
reception.
FM
For the reception
of
both
FM monaural and stereo signals.
Automatic
sWItching operates
between
FM monauraJ and stereo sources
When
an
FM stereo broadcast is
tuned
in,
the
STE
REO
indicator
lights
up.
PHONO
1 In
this
position the
turntable
is available
if
connected
to
the
PHONO 1
input
jacks on the
rear panel.
7
KR-9600
(K)
~
6V
~
CD
f)
@)
o
e
o
PHONO
2 In thIS position the turntable is avaiJable
if
connected
to
the
PHONO 2 Input jacks
on
the
rear panel
AUX
Selects source connected to
the
AUX
jacks
o
MODE
switch
SWitch positions and
functions
are as follows:
STEREO
- This proVIdes stereophonic reproduction
of
any stereo program source. The left channel is
heard from
the
left
speaker, and the
right
channel is heard
from
the right speaker
REVERSE
This reverses positions
of
two
speakers. The
left
channel is
now
heard from the right spea-
ker, and
the
right channel from
the
left speaker.
MONO
Mixes
left
and right channels
CD
TAPE
switches
MONITOR
switch
Switch
POSItions and functions are
as
follows:
SOURCE
The source signal is heard.
A For
monitoring
a recording or for playback on a tape
deck
connected
to
the
TAPE A jacks.
Sound recorded
on
the
tape is heard
B For
monItoring
a recording
or
for playback on a tape deck connected to
the
TAPE B jacks.
Sound recorded
on
the
tape is heard.
For further details refer
to
pages 9 and
10
~~
