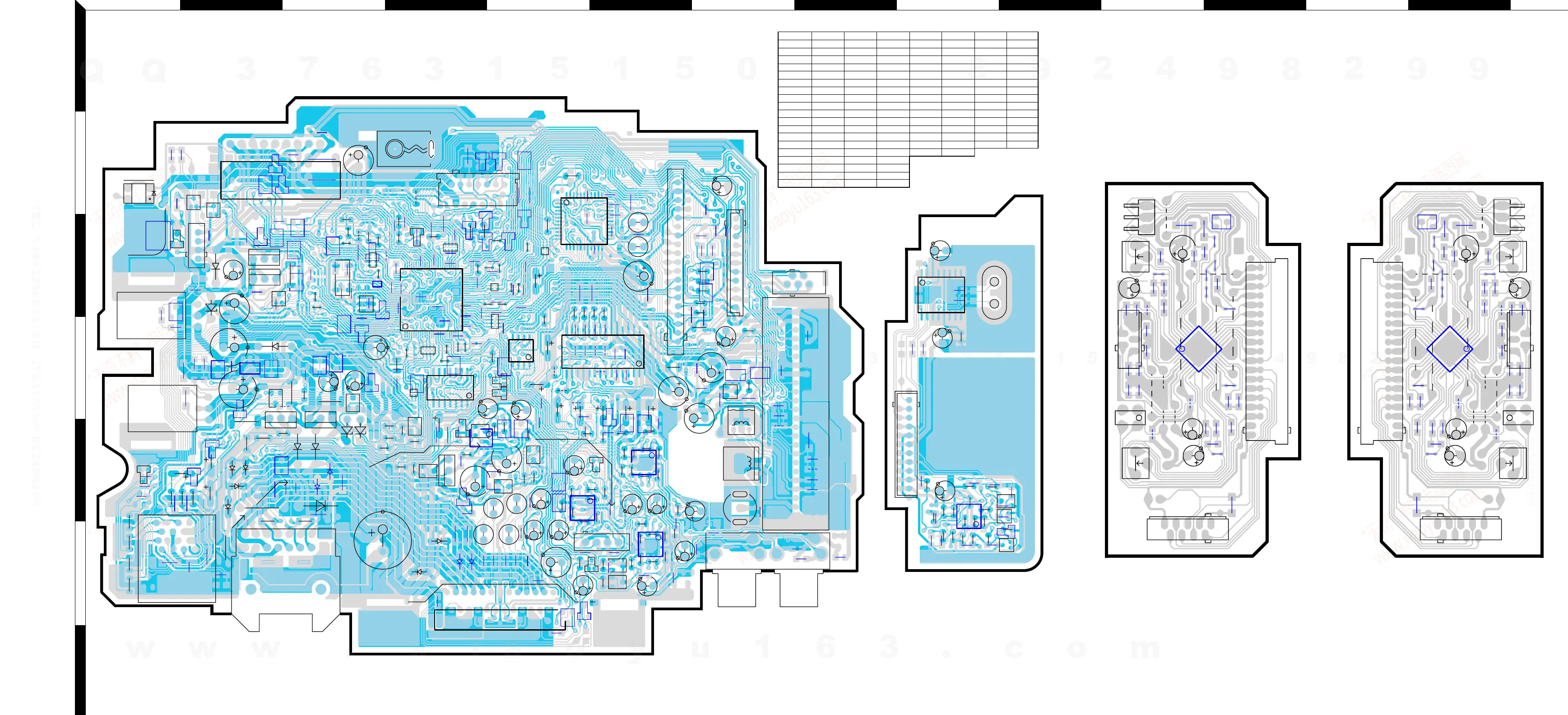

Refer to the schematic diagram for the value of resistors and capacitors.
X14-618X-XX
Ref.No. Address Ref.No. Address Ref.No. Address Ref.No. Address
IC1 3S Q5 5T Q36 3R Q59 5T
IC2 2U Q6 5T Q37 3Q Q60 4S
IC3 4Q Q18 4Q Q38 3Q Q61 5T
IC4 6T Q19 4Q Q39 3R Q62 5T
IC5 4U Q20 4Q Q40 2Q Q71 4T
IC6 5S Q21 3P Q41 3R Q72 4S
IC7 6U Q22 3P Q42 3Q Q82 2T
IC8 5U Q23 3R Q43 2Q Q86 3V
IC9 5T Q24 4S Q44 2Q Q87 3V
IC10 4S Q25 4S Q45 3R Q88 4V
IC11 3X Q26 4Q Q51 6T Q89 4V
IC12 5X Q27 4Q Q55 5S Q91 6Y
IC13 2R Q28 4R Q56 5S Q92 5Y
IC14 4T Q29 4R Q57 5T Q93 5Y
IC15 3R Q30 4R Q58 5T
Q1 4U Q31 4R
Q2 4U Q32 5Q
Q3 6U Q33 2P
Q4 6U Q35 3R
