Kenwood NXR-1700 Service Manual

1-12 (No.RA094<Rev.002>)
2.4.2 Adding the RSSI or Reset Terminal on the CONTROL I/O (D-SUB 25-pin) Connector
The configuration for pin 1 of the CONTROL I/O (D-SUB 25-pin) connector can be changed to allow it to supply the power source for
RSSI.
Follow the procedure shown below to change the configuration.

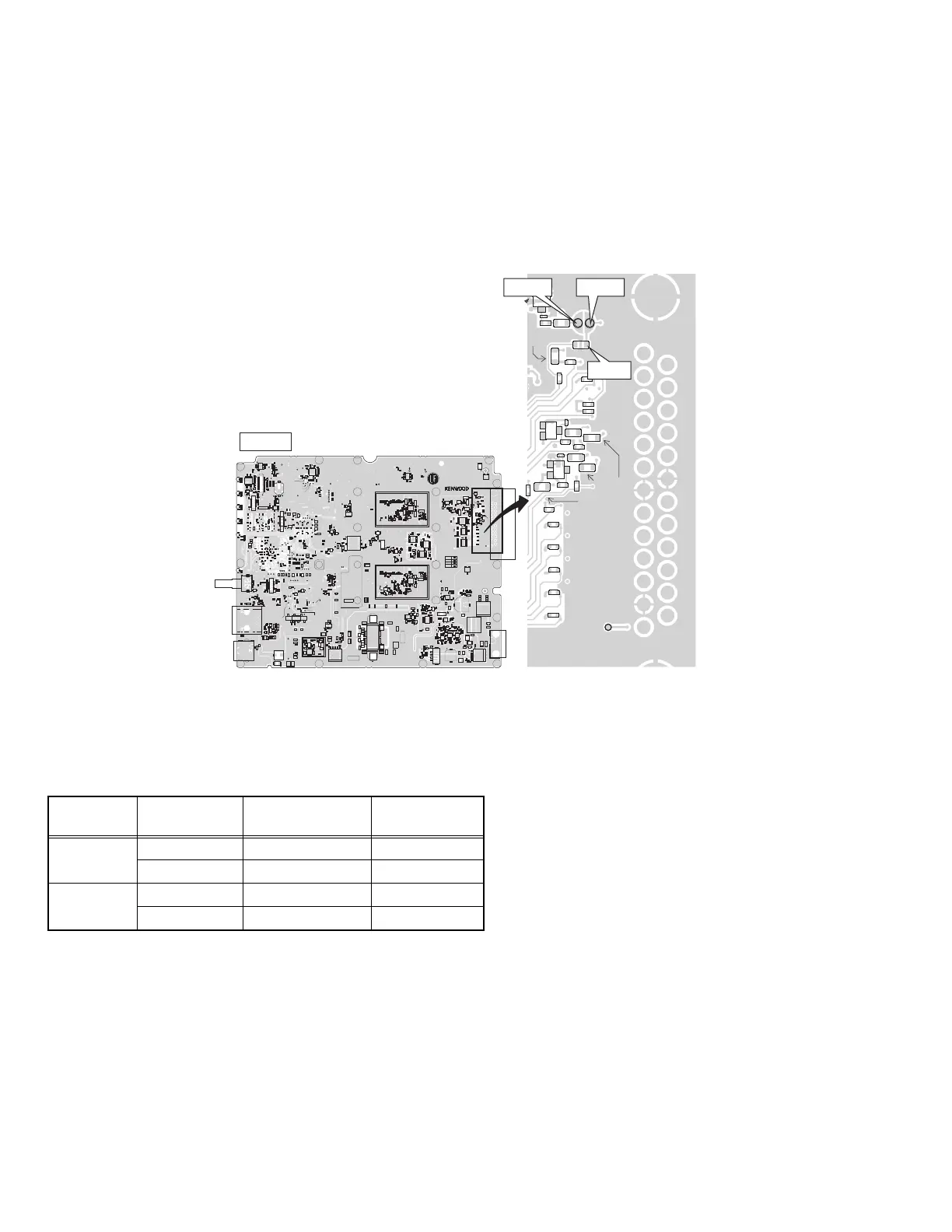

Case 1: Add the RSSI.
(1) Remove the board.
(2) Join the circular soldering pads by soldering. (TL501 and TL502)
Case 2: Add the Reset.
(1) Remove the board.
(2) Mount the part (part number: RK73GB2A102J) on R431 of the board.
2.4.3 Changing CONTROL I/O (D-SUB 25-pin) connector (pin 4, pin 5) configuration
The AUX Input Port (pins 4 and 5) on the CONTROL I/O (D-SUB 25-pin) connector can be used as the CTS port and RTS port.
Follow the procedure shown below to change the configuration.
(1) Remove the board.
(2) Remove the R557 chip jumpers and solder to R555.
(3) Remove the R558 chip jumpers and solder to R556.
Connector
Pin Number
Signal name
Installing
RK73GB2A000J
NOTE
4 AI1 R557 Default
CTS R555 RS-232C
5 AI2 R558 Default
RTS R556 RS-232C
