2.3 INSTALLATION

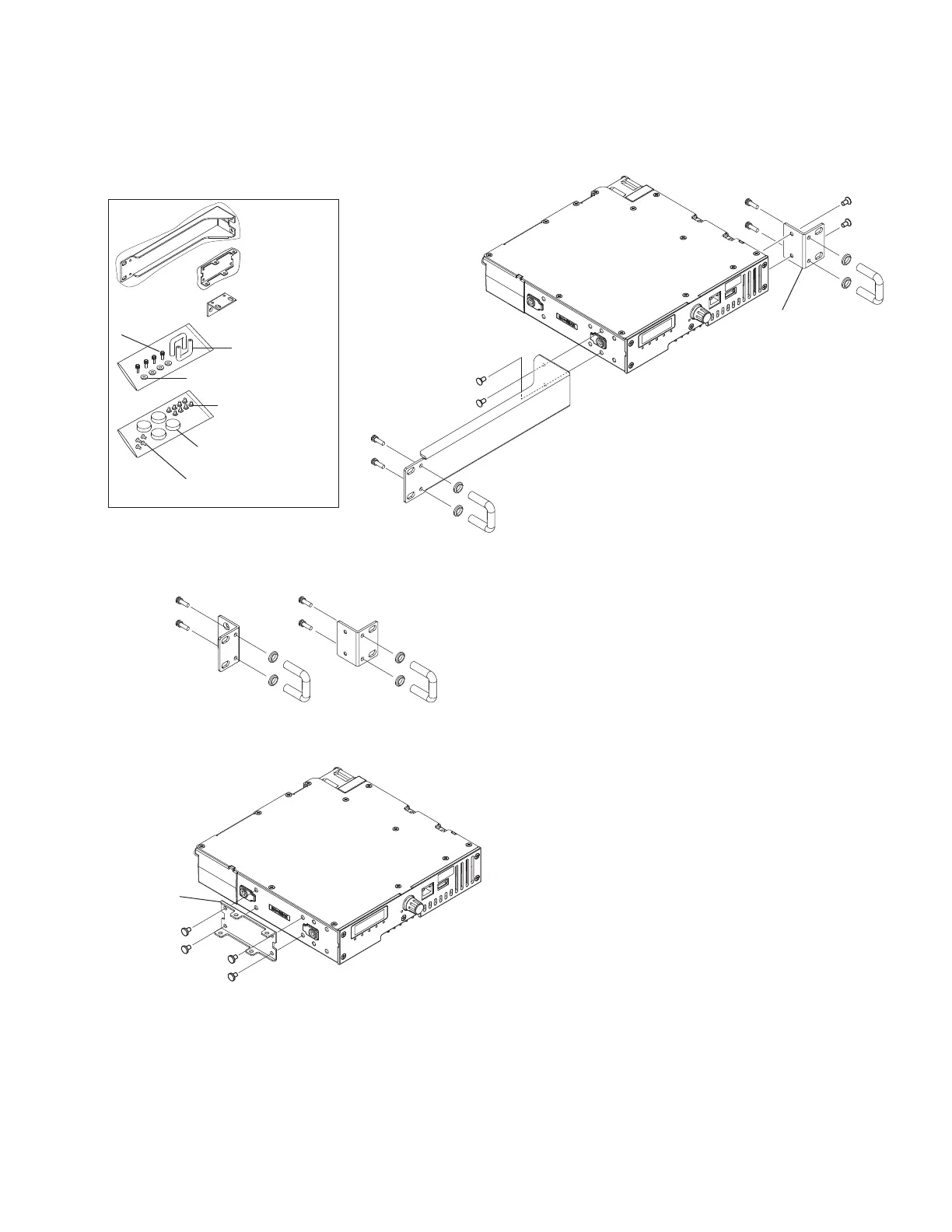

2.3.1 Rack mounting for one repeater
(1) Assemble two types of brackets with handles. <1> <2>
(2) Attach two types of brackets with handles to the repeater. <3> <4>
(3) The bracket long / short can be attached by swapping the left and right.
2.3.2 Rack mounting for two repeaters
(1) Assemble two sets of brackets (short) with handles. <1> <2>
(2) Attach the reinforcing HW to the repeater A. <3>
<2>
<3>
<1>
Bracket (short)
Bracket (long)
Ring
Handle
Bracket (long)
Reinforcing HW
Bracket (short)
Handle x2
Ring x4
Screw x4
for handle
Bind head screw x8
for reinforcing HW
Flat head screw x4
for bracket
Screwdriver type: M4
<4>
Foot x4
Accessories for installation
<1>
<2>
Bracket (short)
Ring
Handle
To Next Page
