OPERATING FEATURES

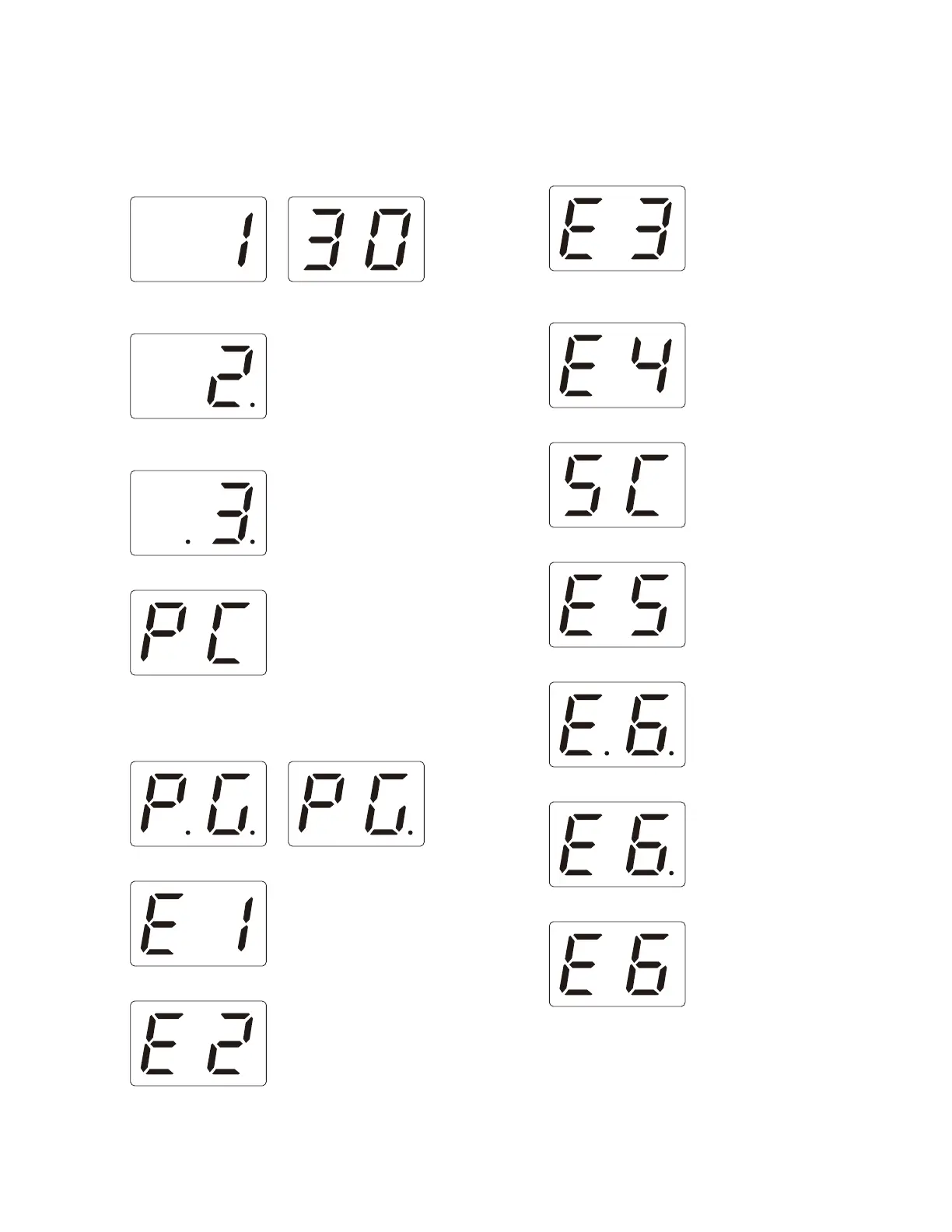

1. Two 7-segment LED Displays
• Channel display (1~30): While operating normally in user
mode.
• When the displayed channel is contained in scan se-
quence, the right side decimal point is displayed.
• When the displayed channel is the priority channel, the
left side decimal point is displayed.
• “PC” is displayed while in PC mode.
• “PG” is displayed while in fi rmware programming mode.
2 decimal points displayed = 115,200 bps
1 decimal point displayed = 57,600 bps
No decimal = 38,400 bps
• “E1” is displayed when FPU data is not written.
• “E2” is displayed when the channel data is not written.
• “E3” is displayed when PLL is unlocked.
Receiver PLL unlocked = BUSY LED blinks.
Transmitter PLL unlocked = TX LED blinks.
• “E4” is displayed when PTT is attempted on a channel
number that has no TX frequency data programmed.
• “SC” is displayed while in scan mode.
• “E5” is ESN blank error.
• “E.6.” is MCU internal RAM error.
• “E6.” is DSP RAM error.
• “E6” is MCU External RAM error.

Kenwood NXR-710 Specifications

General

LED indicators	Yes
Channels quantity	30 channels
Reception range (VHF)	136 - 174 MHz
Number of programmable buttons	6
Display type	LED
Certification	IC, FCC
Operating temperature (T-T)	-30 - 60 °C
Input voltage	10.8 - 15.6 V
Power consumption (max)	50 W

Weight and Dimensions

Depth	340 mm
Width	483 mm
Height	88 mm
Weight	9700 g
