Kenwood RXD-M32MD User Manual

RXD-M32MD
3

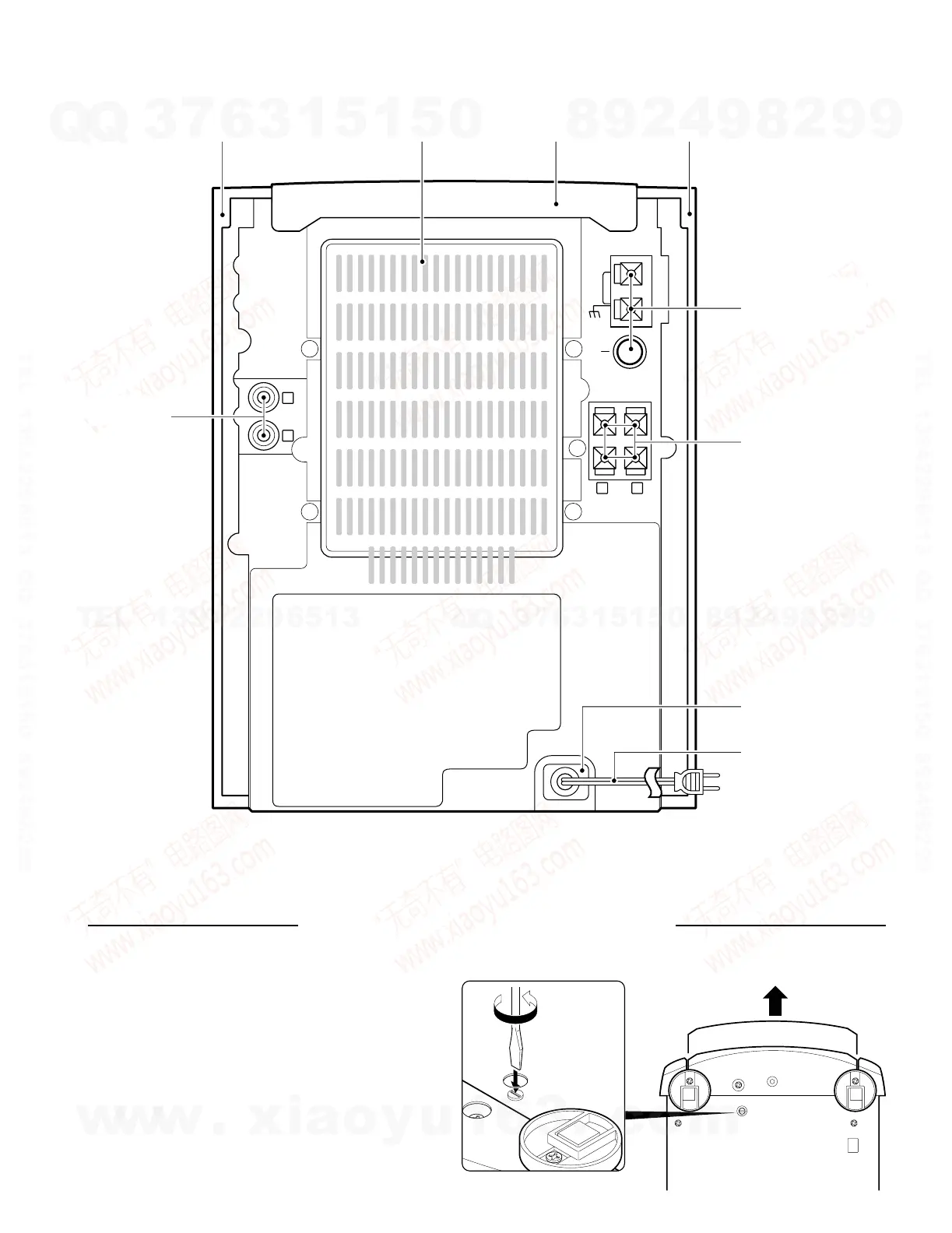

EXTERNAL VIEW
L
R
AUX
IN
SPEAKERS(6–16Ω)
GND
AM
ANTENNA
FM
75Ω
+
-
LR
Lock terminal board
(E70-0052-05) or
(E20-0321-05)
Cover *
(F07-)
Top plate
(A52-0387-08)
Pin jack
(E63-0095-05)
Side plate R *
(A50-)
Side plate L *
(A50-)
Lock terminal board
(E70-0053-05)
AC power cord bushing
(J42-0083-05)
AC power cord *
(E30-)
FRONT
CAM
CAM
How to open the tray if not comes out.
(1) From the bottom side of the CD mechanism, use a
screw driver or the like to turn the cam slightly coun-
terclockwise.
(2) Pull out the tray front wards by hand when the tray
comes just out.
DISASSEMBLY FOR REPAIR
* Refer to parts list on page 46.
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299

Kenwood RXD-M32MD Specifications

Amplifier Section

effective output power during STEREO operation	20 W + 20 W
rated output power during STEREO operation	15 W + 15 W
wow and flutter	0.2 %

Tuner Section

FM tuning frequency range	87.5 MHz ~ 108 MHz
MW (AM) tuning frequency range (for U.K. and Europe)	531 kHz ~ 1, 602 kHz
MW (AM) tuning frequency range (for other countries)	530 kHz ~ 1, 610 kHz

General

power consumption	60 W
dimensions (W x H x D)	180 mm x 239 mm x 305 mm
weight (net)	5.7 kg

Speaker Section

woofer size	100 mm
tweeter size	50 mm
impedance	6 Ω

MD Recorder Section

dimensions (W x H x D)	150 mm x 234 mm x 197 mm
weight (net)	2.4 kg
maximum input level	30 W
