Kenwood RXD-M32MD User Manual

Parts with exploded numbers larger than 700 are not supplied.
FM
DM
630
13
LM
PU
AE
AE
AC
WASHER HEAD
AA
AB
AA
AB
AB
AB x 2
AD
AE
AF
AG
AF
AF
AG
AC x 2
AC x 2
637
AD x 2
1
2
3
A B

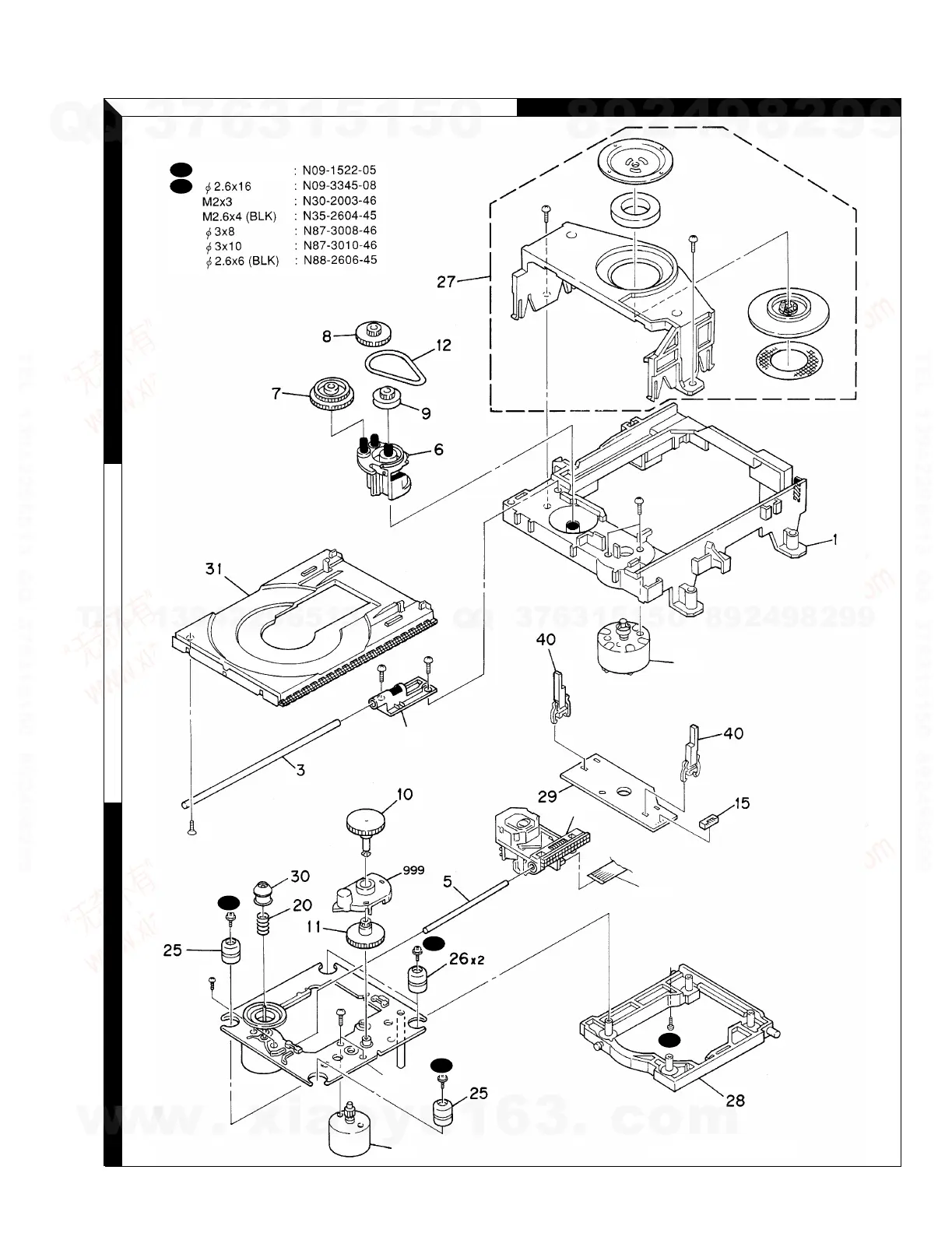

EXPLODED VIEW (CD MECHANISM)
43
RXD-M32MD
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299

Kenwood RXD-M32MD Specifications

Amplifier Section

effective output power during STEREO operation	20 W + 20 W
rated output power during STEREO operation	15 W + 15 W
wow and flutter	0.2 %

Tuner Section

FM tuning frequency range	87.5 MHz ~ 108 MHz
MW (AM) tuning frequency range (for U.K. and Europe)	531 kHz ~ 1, 602 kHz
MW (AM) tuning frequency range (for other countries)	530 kHz ~ 1, 610 kHz

General

power consumption	60 W
dimensions (W x H x D)	180 mm x 239 mm x 305 mm
weight (net)	5.7 kg

Speaker Section

woofer size	100 mm
tweeter size	50 mm
impedance	6 Ω

MD Recorder Section

dimensions (W x H x D)	150 mm x 234 mm x 197 mm
weight (net)	2.4 kg
maximum input level	30 W
