Kenwood TM-D700A Service Manual

Receiver section

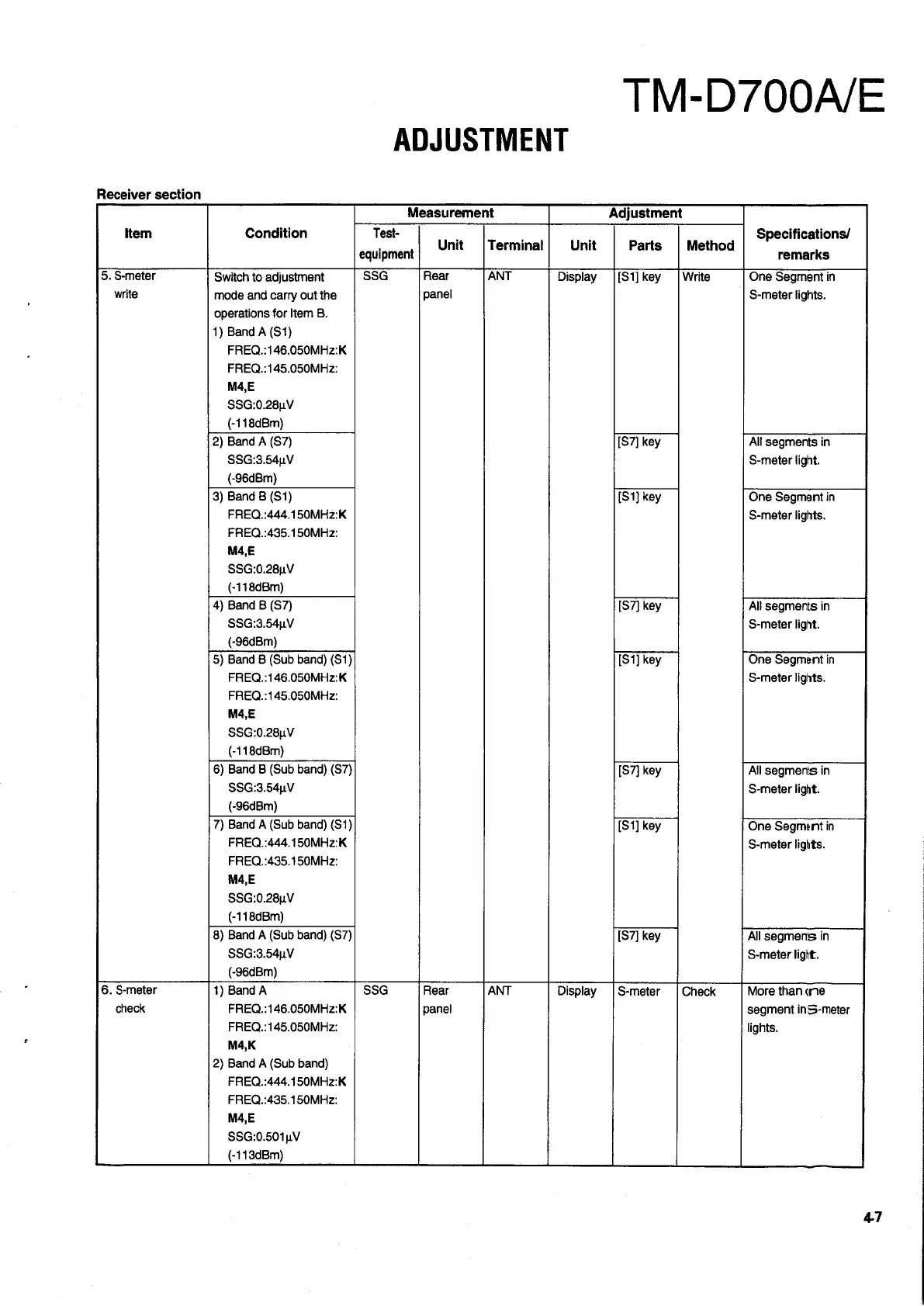

ADJUSTMENT
TM-D70O0A/E
Item
Measurement
Adjustment
Condition
Test-
F Unit
equipment
Terminal Unit
Parts
Method
Specifications/
remarks
5. S-meter
write
Switch to adjustment
mode and carry out the
operations for Item B.
1) Band A (S1)
FREQ.:146.050MHz:K
FREQ.:145.050MHz:
M4,E
SSG:0.28nV
(-118dBm)
2) Band A (S87)
$SG:3.54pV
(-96dBm)
3) Band B ($1)
FREQ.:444.150MHz:K
FREQ.:495.150MHz:
M4,E
SSG:0.28nV
(-118dBm)
4) Band B (87)
S8G:3.541V
(-96dBm)
5) Band B (Sub band) ($1)
FREQ.:146.050MHz:K
FREQ.:145.050MHz:
M4,E
SSG:0.28nV
(-118dBm)
6) Band B (Sub band) (S7)
SSG:3.541V
(-96dBm)
7) Band A (Sub band) ($1)
FREQ.:444.150MHz:K
FREQ.:435.150MHz:
M4,E
SSG:0.28uV
(-118dBm)
8) Band A (Sub band) (S7)
$SG:3.54pV
(-96dBm)
SSG Rear ANT
panel
Display
{S1] key
[S7] key
[S1} key
[S7] key
[Si] key
[S7] key
[St] key
[S7] key
Write
One Segment in
S-meter lights.
All segments in
S-meter light.
One Segment in
S-meter lights.
All segmerts in
S-meter light.
One Segment in
S-meter lights.
All segmeris in
S-meter light.
One Segment in
S-meter lights.
All segmenis in
S-meter light.
6. S-meter
check
1) Band A
FREQ.:146.050MHz:K
FREQ.:145.050MHz:
M4,K
2) Band A (Sub band)
FREQ.:444.150MHz:K
FREQ.:435.150MHz:
M4,E
SSG:0.501pV
(-1138dBm)
SSG Rear ANT
panel
Display
S-meter
Check
More than «me
segment inS-meter
lights.
47
