8 Data output
(excl. EWB models)
The balance is supplied as standard with an interface RS 232C.
8.1 Description of the serial data output (RS 232C)
The data output is placed at the rear side of the balance. It is a 5-pole standard
socket.

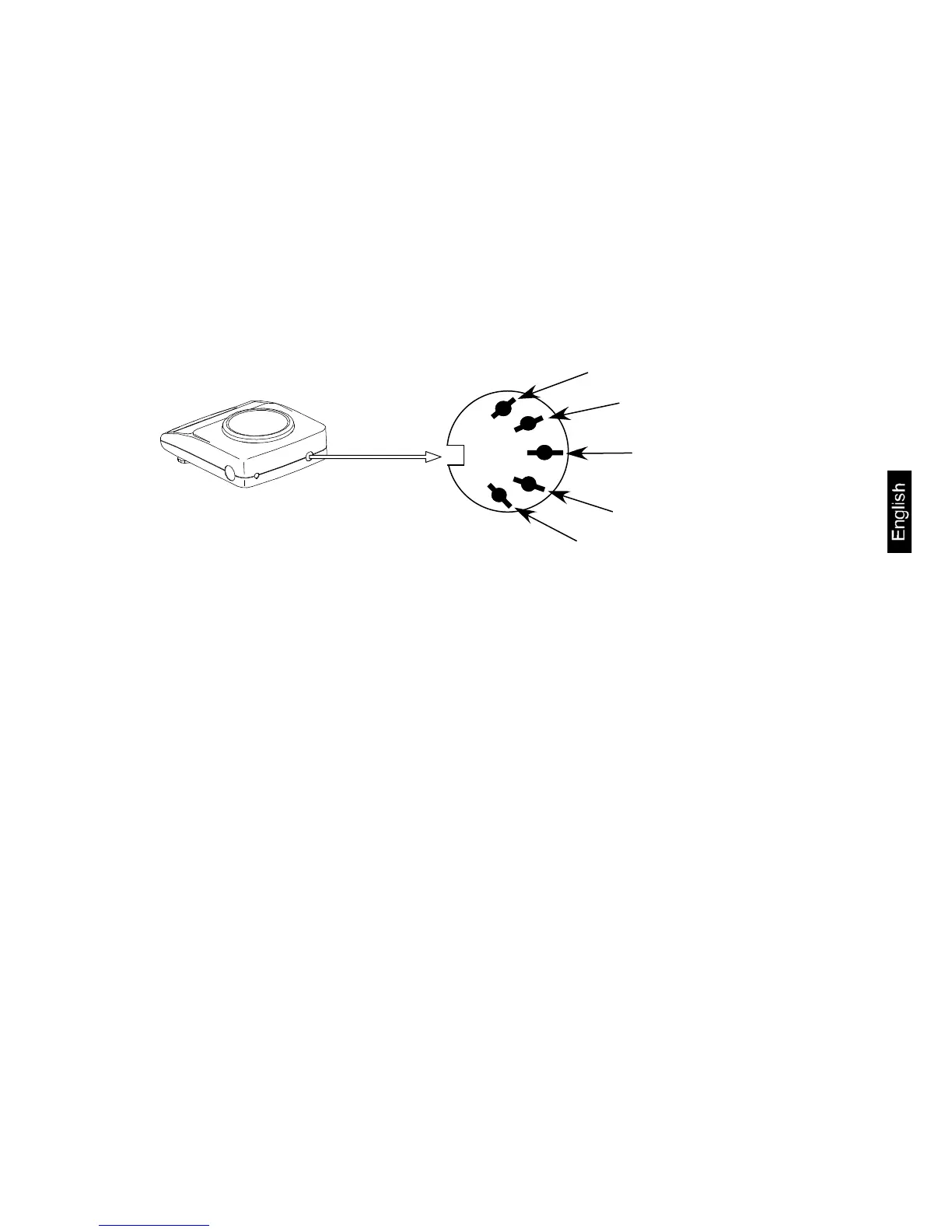

Pin description see following illustration
8.2 Technical data of the interface
Transfer format: serial data transfer
Data-bit:
8-bit (Standard-ASCII-Format)
Start-bit:
1 bit
Stop-bit:
2 bits
Parity:
NON, ODD, EVEN
Baudrate:
1200 / 2400 / 4800 / 9600 baud can be set
(see chap. 7.2.2 “Functions“)
1
4
2
5
3
- System- internal
- TXD
- GND
- RXD
- System- internal

KERN EW-N Series Specifications

General

Weighing plate material	stainless steel
Type	Precision balance
Readability	0.001 g
Display	LCD
Power Supply	Mains adapter included
Weighing plate dimensions	ø 120 mm
Platform Size	ø 120 mm
Material	stainless steel (weighing plate)
Interface	RS-232
