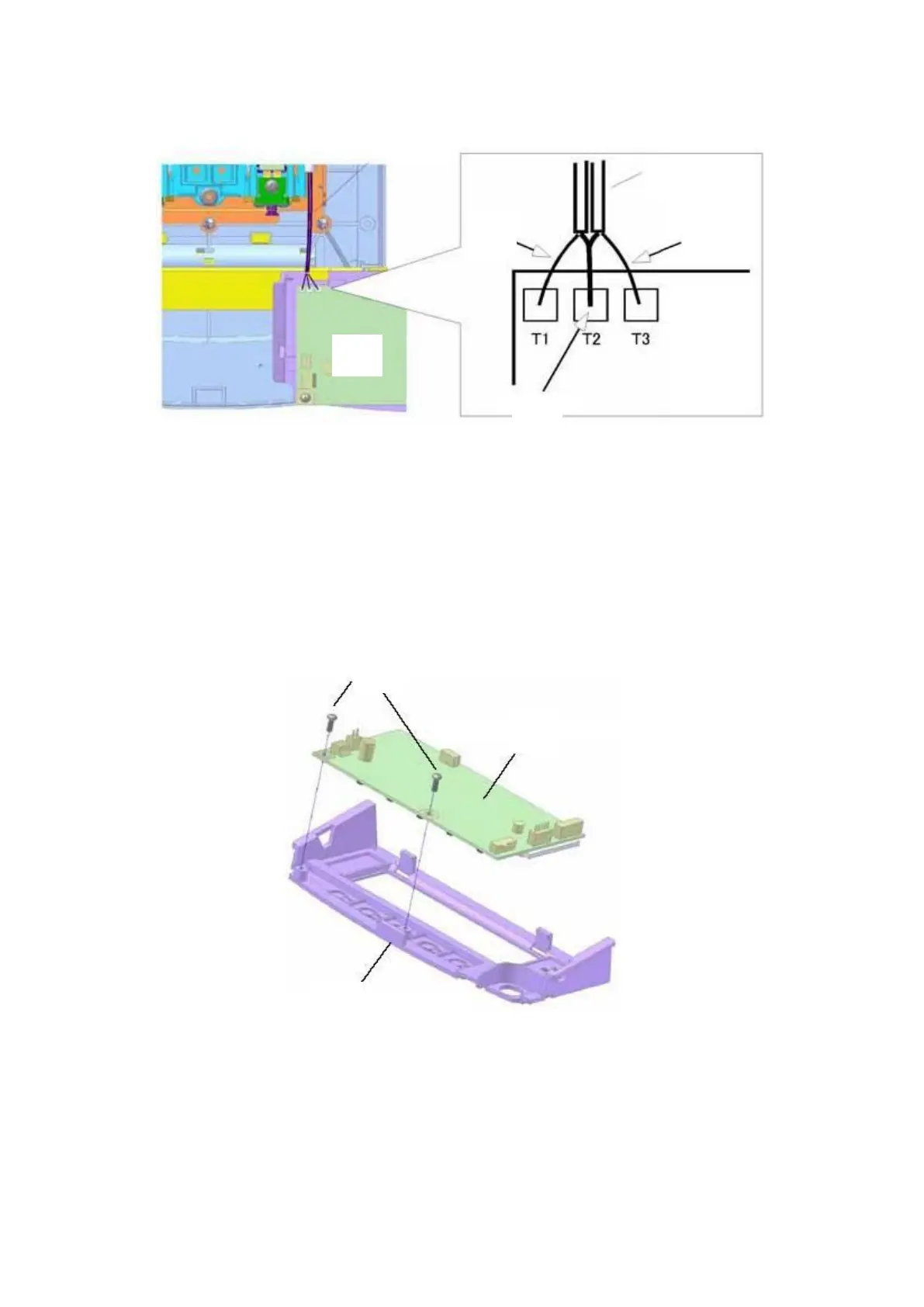

Remove the tuning fork cable soldered onto the AJDP circuit board
 AJDP circuit board
 White wire
 Shield wire
 Black wire
 Tuning fork cable
Remove the two tapping screws and then remove the AJDP circuit board from the board
holder.
 Tapping screws (3mm x 8)
 AJDP circuit board
 Board holder








